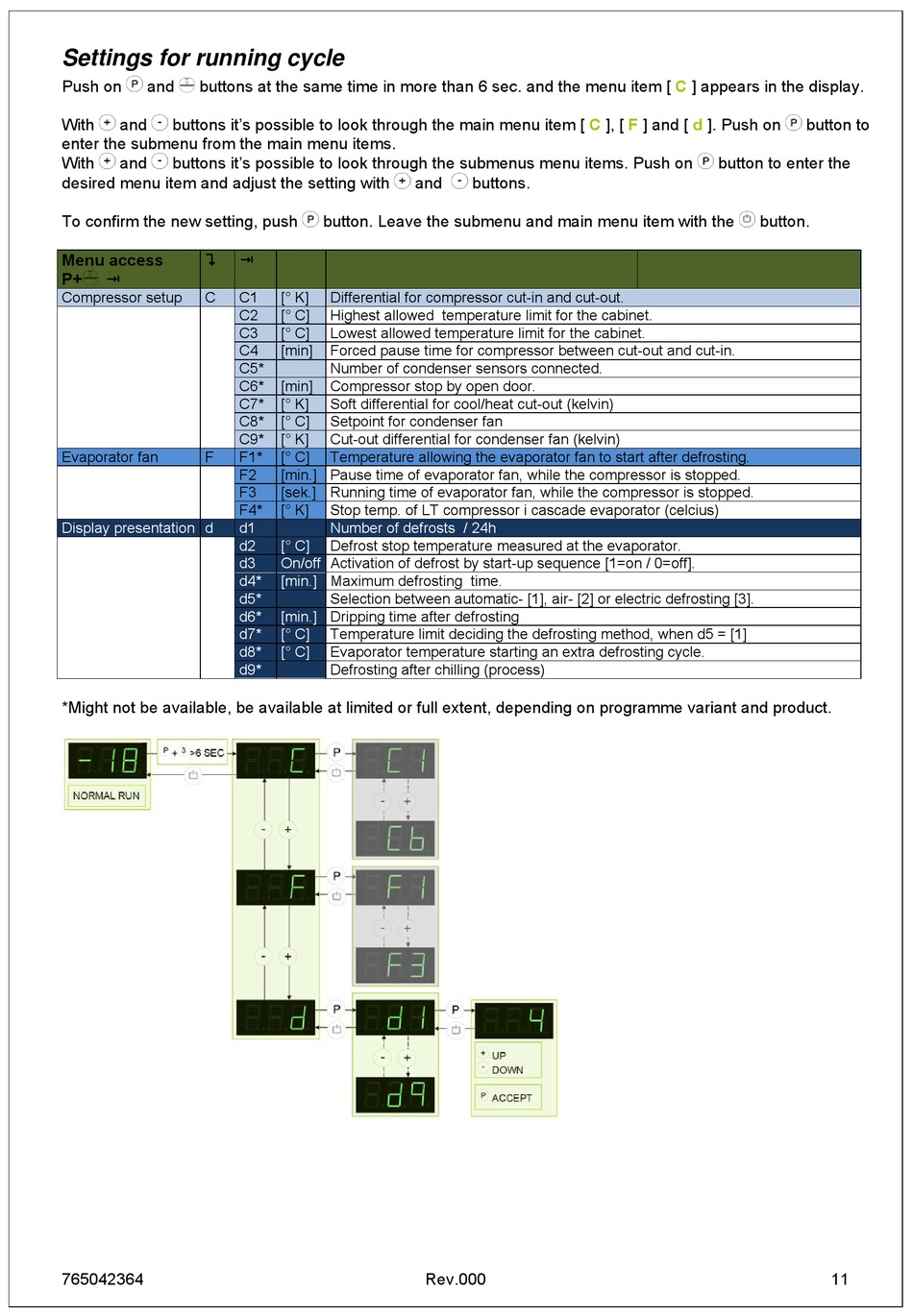

Settings for running cycle
Push on
and
buttons at the same time in more than 6 sec. and the menu item [
With
and
buttons it's possible to look through the main menu item [
enter the submenu from the main menu items.
With
and
buttons it's possible to look through the submenus menu items. Push on
desired menu item and adjust the setting with
To confirm the new setting, push
Menu access
P+
Compressor setup
C
Evaporator fan
F
Display presentation d
*Might not be available, be available at limited or full extent, depending on programme variant and product.
765042364
button. Leave the submenu and main menu item with the
C1
[° K]
Differential for compressor cut-in and cut-out.
C2
[° C]
Highest allowed temperature limit for the cabinet.
C3
[° C]
Lowest allowed temperature limit for the cabinet.
C4
[min]
Forced pause time for compressor between cut-out and cut-in.
C5*
Number of condenser sensors connected.
C6*
[min]
Compressor stop by open door.
C7*
[° K]
Soft differential for cool/heat cut-out (kelvin)
C8*
[° C]
Setpoint for condenser fan
C9*
[° K]
Cut-out differential for condenser fan (kelvin)
F1*
[° C]
Temperature allowing the evaporator fan to start after defrosting.
F2
[min.] Pause time of evaporator fan, while the compressor is stopped.
F3
[sek.] Running time of evaporator fan, while the compressor is stopped.
F4*
[° K]
Stop temp. of LT compressor i cascade evaporator (celcius)
d1
Number of defrosts / 24h
d2
[° C]
Defrost stop temperature measured at the evaporator.
d3
On/off
Activation of defrost by start-up sequence [1=on / 0=off].
d4*
[min.]
Maximum defrosting time.
d5*
Selection between automatic- [1], air- [2] or electric defrosting [3].
d6*
[min.]
Dripping time after defrosting
d7*
[° C]
Temperature limit deciding the defrosting method, when d5 = [1]
d8*
[° C]
Evaporator temperature starting an extra defrosting cycle.
d9*
Defrosting after chilling (process)
and
buttons.
Rev.000
C
] appears in the display.
C
], [
F
] and [
d
]. Push on
button to enter the
button.
button to
11
