Parts Breakdown and Dimensions
350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144

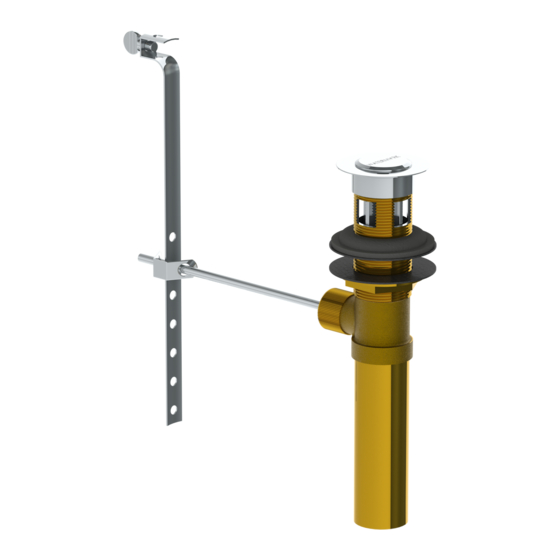

MPU7 Pop-Up Lavatory Drain with Overflow
ITEM NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
www.watermark-designs.com
DESCRIPTION
QTY.
Plug
1
Eyehook Nut
1
Eyehook
1
Collar
1
Gasket
1
Body Washer
2
Locknut
1
Body
1
Tail
1
Pivot Washer
2
Pivot Arm
1
Pivot Nut
1
Strap
1
Wingnut
1
Pivot Clip
1
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Watermark MPU7
Summary of Contents for Watermark MPU7
- Page 1 MPU7 Pop-Up Lavatory Drain with Overflow Parts Breakdown and Dimensions ITEM NO. DESCRIPTION QTY. Plug Eyehook Nut Eyehook Collar Gasket Body Washer Locknut Body Tail Pivot Washer Pivot Arm Pivot Nut Strap Wingnut Pivot Clip Page 1 350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144...
- Page 2 MPU7 Pop-Up Lavatory Drain with Overflow STEPS 1. Remove the plug 2. Unscrew the from the body. collar. 3. Apply silicon around 4. Push the the top of the drain gasket down to hole. the body washer. Page 2 350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144...
- Page 3 MPU7 Pop-Up Lavatory Drain with Overflow 5. Put the body into 6. Unscrew the the drain hole through tail from the the bottom of the sink body and apply and screw the collar Teflon tape to back onto the body.
- Page 4 MPU7 Pop-Up Lavatory Drain with Overflow 9. Remove the pivot 10. Insert the short clip form the pivot end of the pivot arm, then feed the arm into the body outer pivot washer and make sure the onto the pivot arm arm goes through up to the pivot ball.
