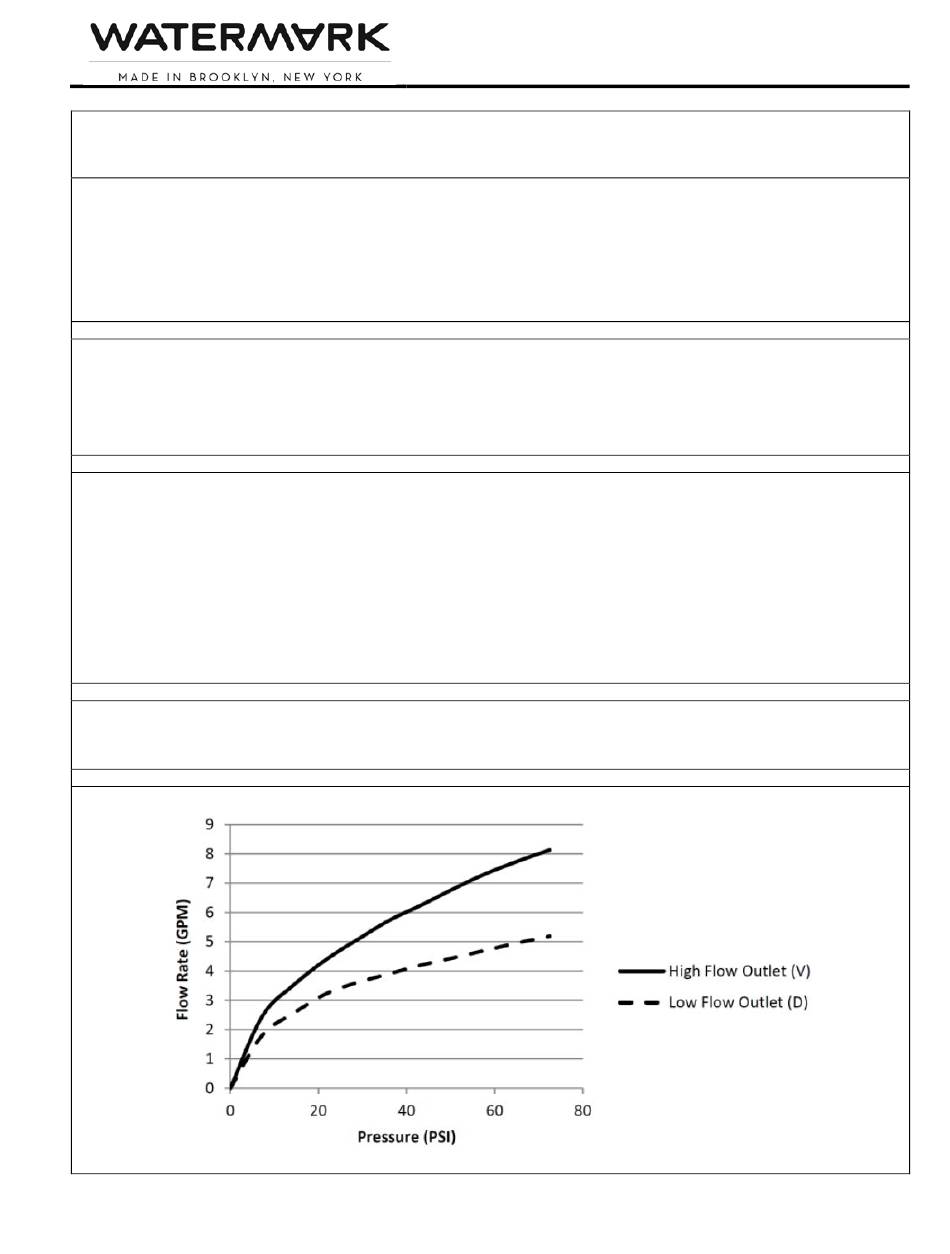

SS-THVD2 -1/2" THERMOSTATIC VALVE WITH 2 WAY DIVERTER
SS-THVD3 -1/2" THERMOSTATIC VALVE WITH 3 WAY DIVERTER
Features:
•
Ability to pre-select water temperature – thus conserving water
•
Paraffin wax element maintains water temperature within ± 1.8°F
•
Compensates for water pressure fluctuations preventing scalding
•
Safety button at 100°F prevents accidental scalding
•
High flow rates allow for multiple shower applications
Specifications:
o Operating pressure is 2 PSI to 72 PSI
o When pressure is higher than 72 PSI a pressure reducer (fitted before the valve) is required.
o Temperature range is 50°F to 180°F
o Recommended setting is 29 PSI and 149ºF
Note:
•
USE TEFLON TAPE OR PIPE SEALANT FOR THREADED CONNECTIONS
•
DO NOT USE PLUMBER'S PUTTY ON ANY OF THE BRASS COMPONENTS
This will cause the finish to tarnish and void the warranty. A non-corrosive Alkoxy Silicone is
recommended.
•
DURING SWEATING OF LINES DO NOT OVERHEAT CASTING
Overheating may cause damage to internal mechanism and void the manufacturer's warranty as
well as increase the risk of scalding.
•
COPPER ADAPTORS MAY BE REQUIRED TO COMPLETE YOUR INSTALLATION
•
Listed by IAPMO, CSA, NSF, and other municipalities
•
Shipping weight (lbs.): 5.5
•
Shipping dimension (in.): 11 x 9 x 7
Thermostatic Shower Trim w/ Built-in
Volume Control/ Diverter
Thermostatic Shower with Built-in
Volume Control/ Diverter
P a g e
| 1
