Parts Breakdown and Dimensions
350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144

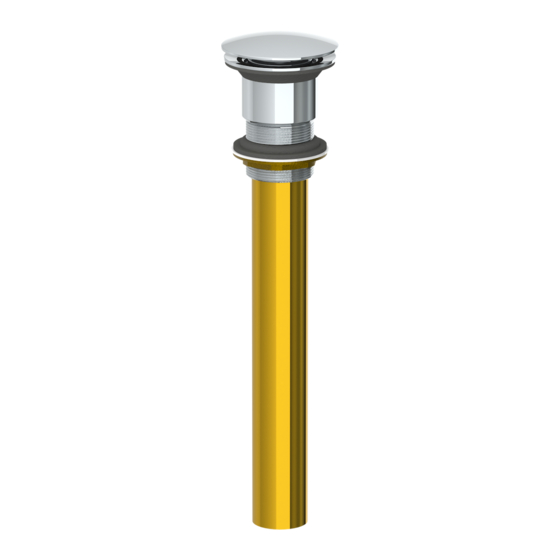

MPU6 Soft Touch Lavatory Drain Without Overflow
ITEM NO.
1
2
3
4
5
6
7
8
9
www.watermark-designs.com
DESCRIPTION
Cap
Cap Gasket
Plunger
Body
Top Gasket
Bottom Gasket
Washer
Nut
Tail
QTY
1
1
1
1
1
1
1
1
1
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Watermark MPU6
Summary of Contents for Watermark MPU6
- Page 1 MPU6 Soft Touch Lavatory Drain Without Overflow Parts Breakdown and Dimensions ITEM NO. DESCRIPTION Cap Gasket Plunger Body Top Gasket Bottom Gasket Washer Tail Page 1 350 Dewitt Avenue, Brooklyn, NY 11207 USA T 718.257.2800 F 718.257.2144 www.watermark-designs.com...
- Page 2 MPU6 Soft Touch Lavatory Drain Without Overflow STEPS 1. Unscrew the tail from 2. Unscrew the nut the body. and remove the washer and the bottom gasket from the body. 3. Place the rest of the 4. Place the drain into the sink from bottom gasket on the top.
