Model 707-001-UL and 707-001-EX
SmartSeries Hazardous Area
Speaker Amplifier Enclosures
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
The Model 707-001-UL and 707-001-EX Speaker Amplifier Enclosures are components of the 700 Series
Page/Party system. They are constructed of cast aluminum and are extremely weatherproof and
corrosion-resistant. These enclosures are equipped with terminal strips for connecting system cable. The
Model 709-901 SmartSeries Amplifier mates directly with this enclosure.
The Model 707-001-UL and 707-001-EX differ in design by their conduit or cable entries. The Model
707-001-UL Enclosure contains NPT threads and the Model 707-001-EX Enclosure contains metric
threads.
Installation
These enclosures must be installed by trained, qualified and
competent personnel. Installation must comply with state and
national regulations, as well as safety practices for this type of
equipment.
CAUTION
Do not install this equipment in
hazardous areas other than those indicated on the approval
listing in the Specifications section of this manual. Such
installation may cause a safety hazard and consequent injury
or property damage.
GAI-TRONICS 3030 KUTZTOWN RD. READING PA 19605 USA
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
610-777-1374
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-698L2B

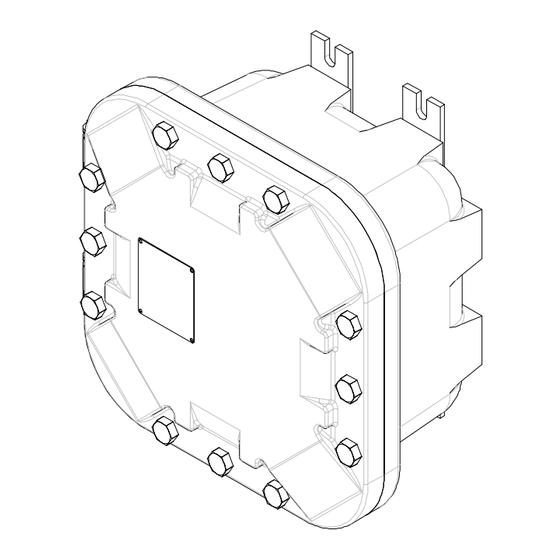

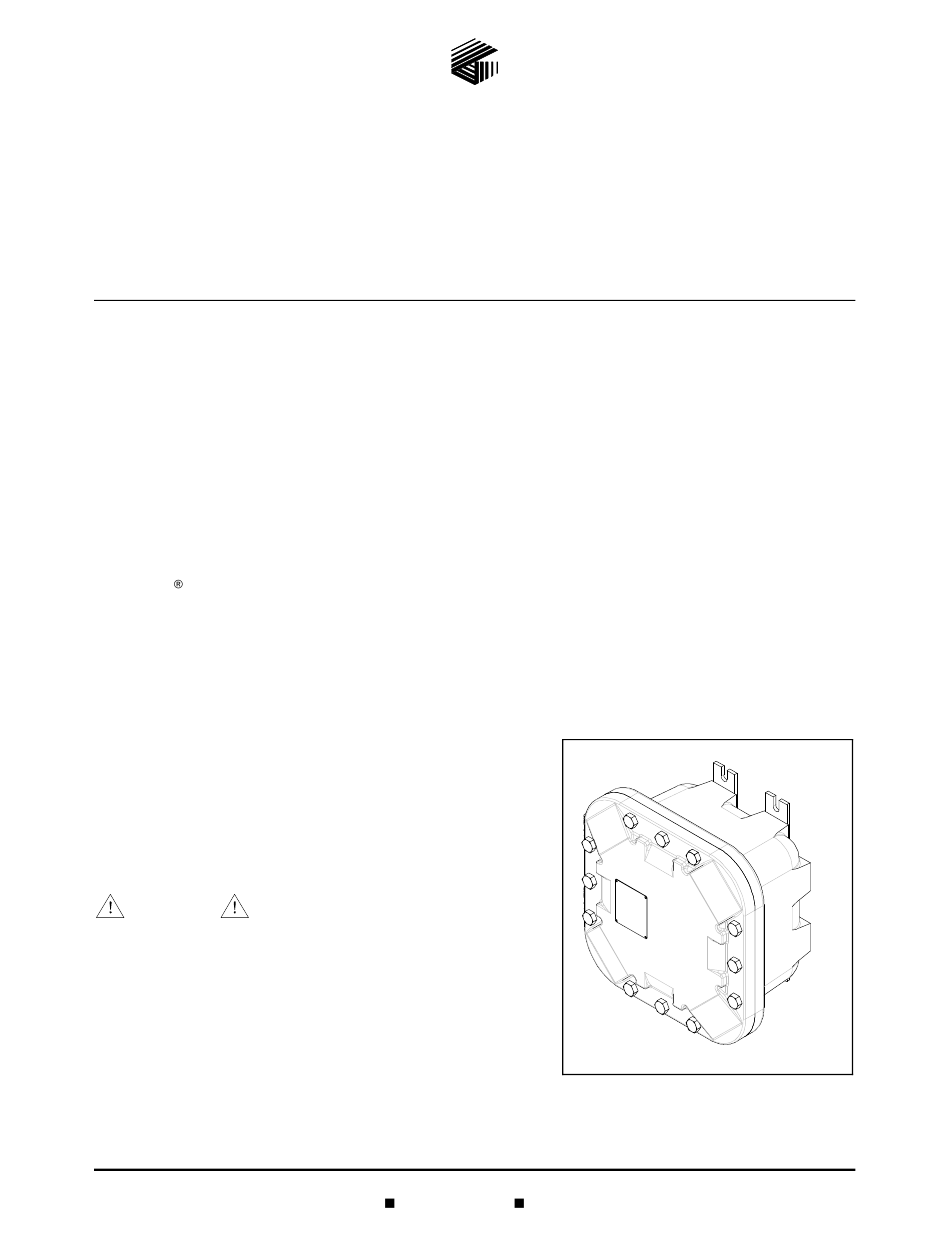

Figure 1. The Model 707-001-UL/EX
Fax: 610-796-5954
Advertisement
Table of Contents
Related Manuals for Hubbell GAI-Tronics 707-001-UL
Summary of Contents for Hubbell GAI-Tronics 707-001-UL
- Page 1 Pub. 42004-698L2B G A I - T R O N I C S ® A H U B B E L L C O M P A N Y Model 707-001-UL and 707-001-EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Confidentiality Notice This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
-
Page 2: Enclosure Placement
Pub. 42004-698L2B 2 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: The mounting location must be flat and provide proper clearance, rigidity and strength to support the enclosure and all contained devices. The enclosures are equipped with factory-installed hinges. The enclosures should be mounted with hinges on the left. -
Page 3: Hardware Configuration
Pub. 42004-698L2B 3 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Hardware Configuration External The speaker amplifier enclosures each contain only applicable approval labeling on the exterior. The enclosure itself has 12 cover mounting bolts located around the perimeter of the enclosure, and a set of aluminum hinges located on the left side. - Page 4 Pub. 42004-698L2B 4 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Internal The speaker amplifier enclosures contain two terminal blocks, an interior mounting plate, an amplifier bridging plate, and a connector for the mating Model 709-901 Amplifier. The amplifier bridging plate is hinged on one side and attached on the opposite side with two #10-32 screws.
- Page 5 Pub. 42004-698L2B 5 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Mounting : The mounting surface must be able to support the weight of the aluminum enclosure. See the Specification section for the weights and dimensions of the unit. The enclosure comes standard with mounting feet capable of being rotated 90º.
- Page 6 Pub. 42004-698L2B 6 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Cable Entries Refer to Figure 5 for the UL conduit entries, and to Figure 6 for the EX cable gland entries. Ensure any unused openings are sealed with proper fittings per local standards. Figure 5.
- Page 7 Pub. 42004-698L2B 7 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Wiring Attach the conduit or cable glands to the enclosure. Feed the wiring through these and bring it into the enclosure. Attach the wires to the terminal blocks located behind the amplifier bridging plate. Follow the wire colors carefully because the colors correspond to GAI-Tronics cable.
-
Page 8: Operation
Pub. 42004-698L2B 8 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Figure 7. Wiring Diagram Operation Refer to GAI-Tronics Pub. 42004-699L2 for Model 709-901 Handset/Speaker Amplifier for detailed operational instructions. \\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-698l2b.doc 11/07... -
Page 9: Maintenance
Pub. 42004-698L2B 9 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Maintenance Regular inspection and a good preventive maintenance program will increase the reliability of your GAI-Tronics station. The GAI-Tronics Field Service Department can formulate a service contract suited to your facility’s specific need for preventive maintenance. -
Page 10: Troubleshooting
Pub. 42004-698L2B 10 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Troubleshooting The following table lists some hints to aid technicians in troubleshooting. Problem Solution Feedback occurs 1. If a speaker is close to the station, try using the muting feature in the amplifier only during enclosure at the terminal blocks. -
Page 11: Specifications
Pub. 42004-698L2B 11 of 11 Model 707-001-UL/EX SmartSeries Hazardous Area Speaker Amplifier Enclosures Page: Specifications Construction/finish................. Cast aluminum/gray polyurethane Mounting............... Wall or column, four 1/2-inch mounting feet with slots Connections ................Internal screw-type barrier terminal blocks Dimensions.......... 15.25 H × 15.25 W × 9.375 D inches (387.4 × 387.4 × 238.1 mm) Temperature range (operating and storage) Model 707-001-UL ................ -
Page 12: Warranty
Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
