Hubbell FCR1U3SPX Instruction Sheet

7

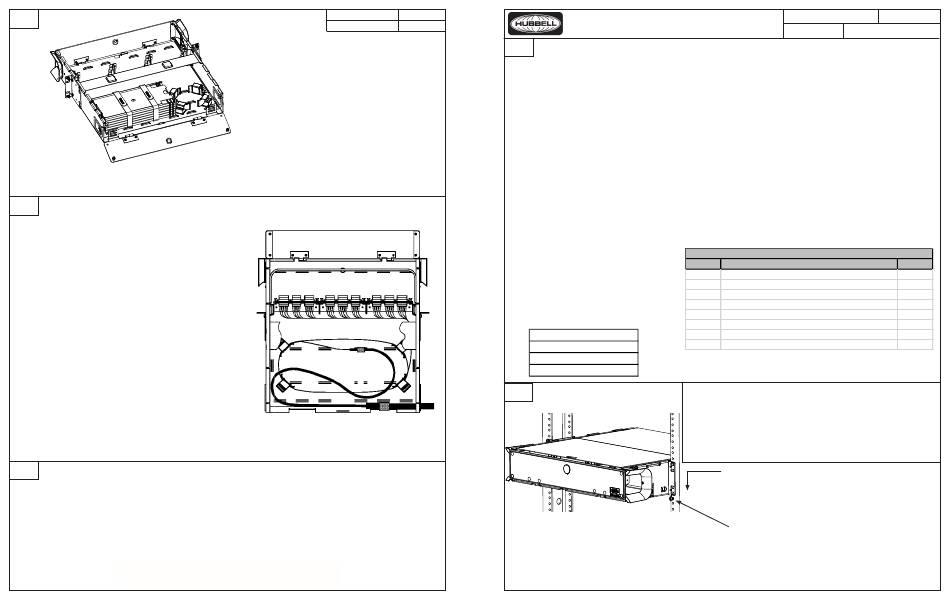

FIGURE 10
8
Cable Installation
8.1 Route the primary cable into the back of the cabinet,
allowing approx. 6 feet of service loop. Mark the cable
tie down point on the primary jacket. Remove the
cable from the enclosure.
8.2 Strip off the cable sheath, cut off all strength members,
and break out the fiber sub-units. Re-route the cable
into the enclosure and secure the primary jacket with
cable ties at the back flange of the chassis. Avoid
sharp bends or over-tightening the cable ties. Tie
down the sub units with slack in an "S" shape as shown
to allow full tray movement without binding.
8.3 Strip approx. 2 feet of jacket from the sub-units. Using
the adhesive clips, form a large loop leaving the 2 feet of
individual fibers for the last loop. Be sure the tray does
not kink the fibers or cables.
8.4 Terminate the fibers with connectors using breakout
kits or splices as required by manufacturer's procedures.
Clean all connectors and plug into the
adapters. Route any excess fibers into the clips
provided. Allow a minimum fiber service loop diameter
of three inches.
9
Patch Cord Installation
9.1 Connect all patch cords from the front adapter ports to the active equipment. Route the cables out the
left and right access ports in the front sides of the cabinet.
9.2 Use the Velcro straps to secure the cables to the tray.
Hubbell Premise Wiring, HUBBELL INCORPORATED (Delaware)
Hubbell Premise Wiring, HUBBELL INCORPORATED (Delaware)
23 Clara Dr Mystic, CT 06355 (800) 626-0005, Fax (860) 535-8328
23 Clara Dr Suite 103 Mystic, CT 06355 (800) 626-0005, Fax (860) 535-8328
www.hubbell-premise.com
www.hubbell-premise.com
Control No. HWS772243 Page 4
Rev. 1 Date: 5/16/23
7.1 Splice Tray Installation: (See Figure 10)
Hubbell splice trays may be secured to the tray with
the Velcro straps.
Note: For additional splice capacity use the FCR350SE
enclosure and route the cables through the knockout in
the top or bottom of the enclosure.
FIGURE 11
CABLE INSTALLATION
of 4
®
Hubbell Premise Wiring Instruction Sheet
1
General Information
1.1 This Instruction Sheet applies to the following Hubbell catalog numbers (X = Black, XW = White):
FCR1U3SPX, FCR1U3SPXW
FCR2U6SPX, FCR2U6SPXW
FCR2U9SPX, FCR2U9SPXW
FCR3U12SPX, FCR3U12SPXW
FCR4U15SPX, FCR4U15SPXW
Note: All FCR units accommodate a lock on both front and rear doors. The FLOCK1 and FLOCK2 locks are sold
separately.
The FCR Series Fiber Enclosures provide fiber patching and termination for any combination of ST, SC, FC, LC, and
MT-RJ configurations. Hubbell FSP Series Adapter Panels mount horizontally in all the FCR Series Fiber Enclosures.
Hubbell Adapter Panels are available with high-quality phosphor bronze alignment sleeves or zirconia ceramic align-
ment sleeves, to support either multimode or single mode applications. Hubbell Adapter Panels are also available in
"High Density" configurations, allowing for a higher fiber count. Hubbell Fiber Enclosure Locks (sold separately) can
be installed in the smoked plastic door to allow the door to be locked. All Hubbell Splice Trays may be used with any
of these enclosures. For additional splicing needs, Hubbell offers a 2 Unit Splice Enclosure, FCR350SE, which holds
up to five Splice Trays.
1.2
Each FCR Enclosure includes one fully as-
sembled and package enclosure and one FCR
Enclosure Accessory Kit.
Note: Compare contents with the parts list to
ensure that you have received all parts.
1.3 Tools Required:
Philips Head Screwdriver
Flat Head Screwdriver
Pliers/Cutters
Knife or Cable Strip Tool
2
Rack Mounting
Figure 1
2.1 To install onto a rack, partially install two #12-24 screws into the lower screw locations of the
desired rack unit position. Lift the enclosure with the mounting brackets positioned over the screws
and lower it into the slots in the mounting brackets.
Control No.
Rev.
FCR FIBER ENCLOSURES
1 Unit Fiber Enclosure for Qty 3 FSP Series Panels
2 Unit Fiber Enclosure for Qty 6 FSP Series Panels
2 Unit Fiber Enclosure for Qty 9 FSP Series Panels
3 Unit Fiber Enclosure for Qty 12 FSP Series Panels
4 Unit Fiber Enclosure for Qty 15 FSP Series Panels
FCR Fiber Enclosure Accessory Kit
Item Product Description
1 10.75" BLACK WIRE TIE
2 12-24 PAN HEAD PHILLIPS SCREW
3 DANGER LABEL / FIBER OPTIC PRODUCTS
4 VELCRO FASTENER STRAP- BLACK
5 FCR INSTRUCTION SHEET
6 PLASTIC FIBER SPOOL
7 LABEL HOLDER
8 FCR LABEL SHEET
The FCR enclosure mounts onto a rack using the #12-24
screws provided. The mounting brackets are shipped con-
figured for the extended position in a 19" rack. Additional
mounting locations are provided for flexibility. For mounting
to a 23" rack, flip the brackets so the short ear is attached to
the chassis.
Lower enclosure until mounting bracket
slots engage onto partially installed
screws.
Partially install #12-24 screws (2) into
lower mounting screw position
Page 1 of 4
HWS772243
1 Date: 5/16/23
Qty
8
4
1
6
1
4
2
1
