Model 7085-001-UL and 7085-001-EX
SmartSeries Multi-Party Hazardous Area
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics retains
all intellectual property and other rights in or to the information contained herein, and such information may
only be used in connection with the operation of your GAI-Tronics product or system. This manual may not
be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
The Model 7085-001-UL and 7085-001-EX Multi-Party Amplifier Enclosures are components of the 700
Series Page/Party system. These enclosures are configured for multi-party systems, which can
accommodate conversations on up to five party lines simultaneously. They are constructed of cast
aluminum and are extremely weatherproof and corrosion-resistant. These enclosures are equipped with
terminal strips for connecting system cable. The Model 709-901 SmartSeries Amplifier mates directly with
this enclosure.
Models 7085-001-UL and 7085-001-EX differ in design by their conduit or cable entries. The Model
7085-001-UL Enclosure contains NPT threads and the Model 7085-001-EX Enclosure contains metric
threads.
Installation
These enclosures must be installed by trained, qualified and
competent personnel. Installation must comply with state and
national regulations, as well as safety practices for this type of
equipment.
CAUTION
Do not install this equipment in
hazardous areas other than those indicated on the approval
listing in the Specifications section of this manual. Such
installation may cause a safety hazard and consequent injury
or property damage.
GAI-TRONICS 3030 KUTZTOWN RD. READING PA 19605 USA
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
Amplifier Enclosures
610-777-1374
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-696L2B

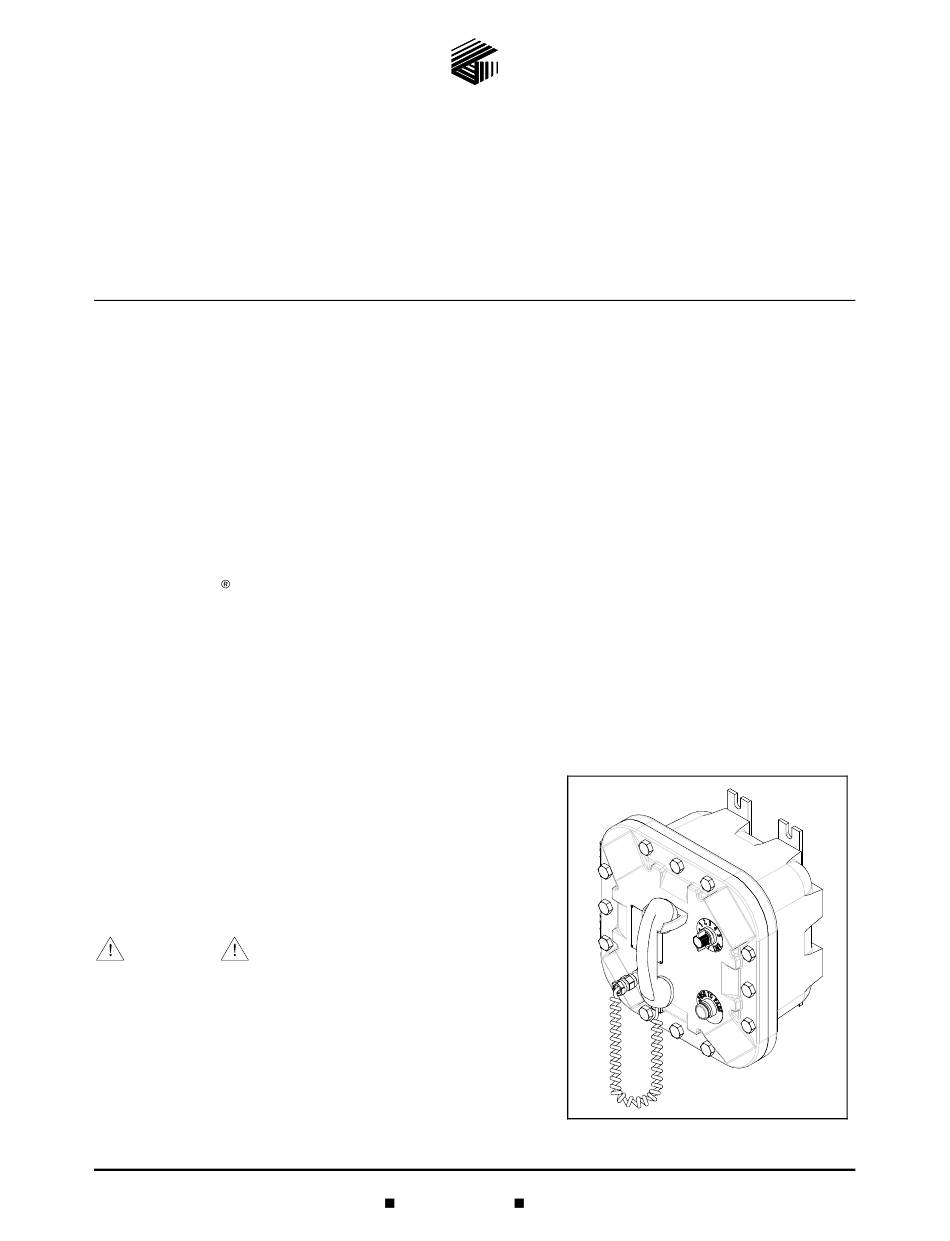

Figure 1. The Model 7085-001-UL/EX
Fax: 610-796-5954
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hubbell GAI-Tronics 7085-001-UL
Summary of Contents for Hubbell GAI-Tronics 7085-001-UL
- Page 1 Pub. 42004-696L2B G A I - T R O N I C S ® A H U B B E L L C O M P A N Y Model 7085-001-UL and 7085-001-EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Confidentiality Notice This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
-
Page 2: Enclosure Placement
Pub. 42004-696L2B 2 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: The mounting location must be flat and provide proper clearance, rigidity and strength to support the enclosure and all contained devices. The enclosures are equipped with factory-installed hinges. The enclosures should be mounted with hinges on the left. -
Page 3: Hardware Configuration

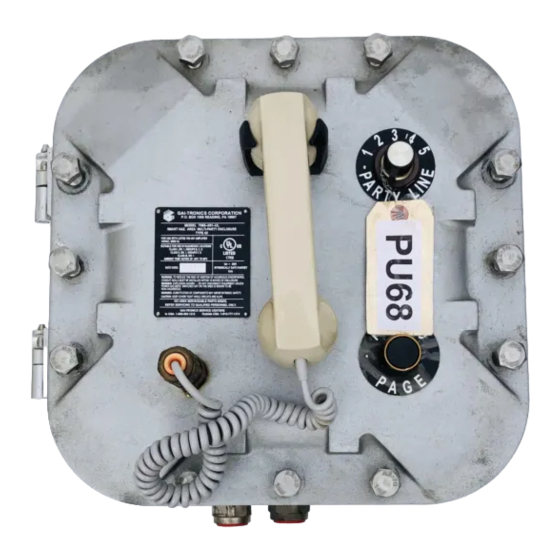

Pub. 42004-696L2B 3 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Hardware Configuration External The multi-party enclosures each contain a handset with an approved gland, push-to-page operator, a party line selector switch, and applicable approval labeling. The handset rests on a cradle, which has a magnetic reed switch located behind it to signal an off-hook condition. - Page 4 Pub. 42004-696L2B 4 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Internal The multi-party enclosures contain two terminal blocks, an interior mounting plate, an amplifier bridging plate, and a connector for the mating Model 709-901 Amplifier. The amplifier bridging plate is hinged on one side and attached on the opposite side with two #10-32 screws.
- Page 5 Pub. 42004-696L2B 5 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Mounting : The mounting surface must be able to support the weight of the aluminum enclosure. See the Specification section for the weights and dimensions of the unit. The enclosure comes standard with mounting feet capable of being rotated 90º.
-
Page 6: Cable Entries
Pub. 42004-696L2B 6 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Cable Entries Refer to Figure 5 for the UL conduit entries, and to Figure 6 for the EX cable gland entries. Ensure any unused openings are sealed with proper fittings per local standards. Figure 5. -
Page 7: Local Muting
Pub. 42004-696L2B 7 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Wiring Attach the conduit or cable glands to the enclosure. Feed the wiring through these and bring it into the enclosure. Attach the wires to the terminal blocks located behind the amplifier bridging plate. Follow the wire colors carefully because the colors correspond to GAI-Tronics cable. -
Page 8: Operation
Pub. 42004-696L2B 8 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Figure 7. Wiring Diagram Operation Refer to GAI-Tronics Pub. 42004-699L2 for Model 709-901 Handset/Speaker Amplifier for detailed operational instructions. \\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-696l2b.doc 11/07... -
Page 9: Maintenance
Pub. 42004-696L2B 9 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Maintenance Regular inspection and a good preventive maintenance program will increase the reliability of your GAI-Tronics station. The GAI-Tronics Field Service Department can formulate a service contract suited to your facility’s specific need for preventive maintenance. -
Page 10: Troubleshooting
Pub. 42004-696L2B 10 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Troubleshooting The following table lists some hints to aid technicians in troubleshooting. Problem Solution Feedback occurs 1. If a speaker is close to the station, try using the muting feature in the amplifier only during enclosure at the terminal blocks. -
Page 11: Specifications
Pub. 42004-696L2B 11 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Specifications Construction/finish................. Cast aluminum/gray polyurethane Mounting..............Wall or column, four 1/2-inch mounting feet with slots Connections ................Internal screw-type barrier terminal blocks Dimensions........15.25 H × 15.25 W × 12.375 D inches (387.4 × 387.4 × 314.3 mm) Temperature range (operating and storage) Model 7085-001-UL ............... -
Page 12: Replacement Parts
Pub. 42004-696L2B 12 of 12 Model 7085-001-UL/EX SmartSeries Multi-Party Hazardous Area Amplifier Enclosures Page: Replacement Parts Model No. Description 10108-011 UL Listed Handset Assembly with 6-foot PVC Cord (with cable gland) 10108-012 ATEX Certified Handset Assembly with 6-foot PVC Cord (with cable gland) 13205-006 Receiver, Handset 150-ohm 61504-111... -
Page 13: Warranty
Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
