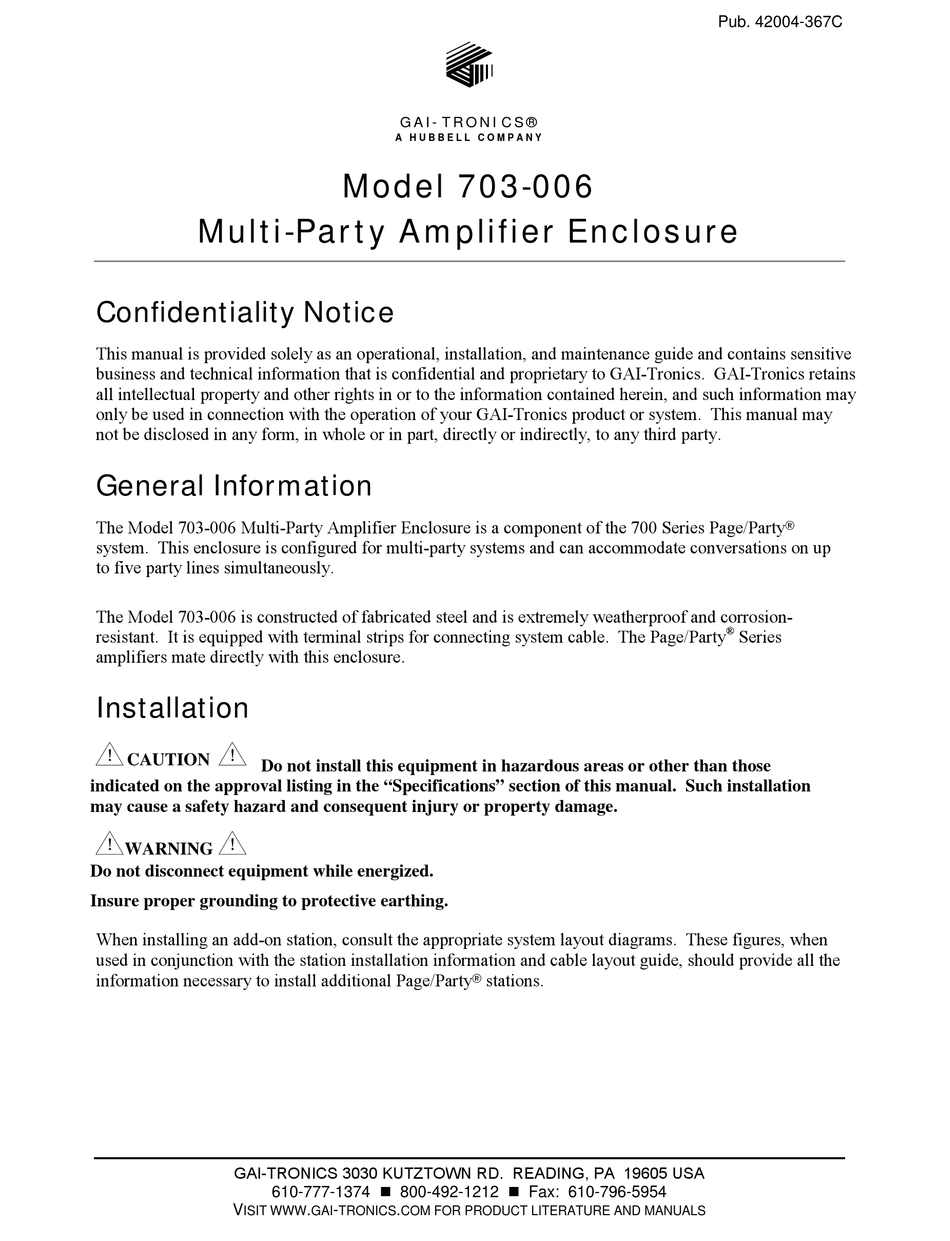

Hubbell GAI-Tronics 703-006 Quick Start Manual

Multi-Party Amplifier Enclosure
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics retains
all intellectual property and other rights in or to the information contained herein, and such information may
only be used in connection with the operation of your GAI-Tronics product or system. This manual may
not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
General Information
The Model 703-006 Multi-Party Amplifier Enclosure is a component of the 700 Series Page/Party
system. This enclosure is configured for multi-party systems and can accommodate conversations on up
to five party lines simultaneously.

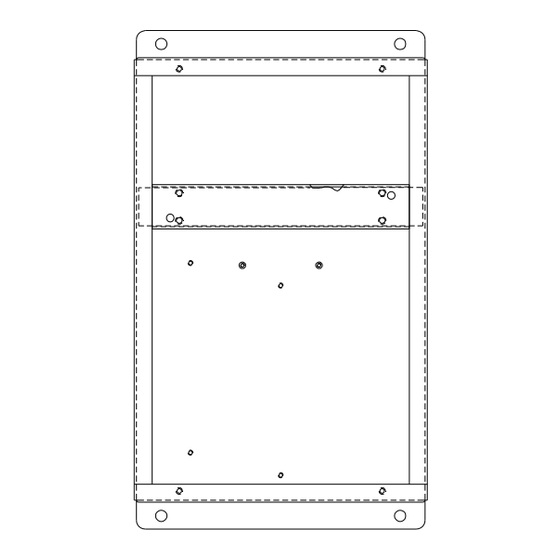

The Model 703-006 is constructed of fabricated steel and is extremely weatherproof and corrosion-
resistant. It is equipped with terminal strips for connecting system cable. The Page/Party
amplifiers mate directly with this enclosure.
Installation
CAUTION
Do not install this equipment in hazardous areas or other than those
indicated on the approval listing in the "Specifications" section of this manual. Such installation
may cause a safety hazard and consequent injury or property damage.
WARNING
Do not disconnect equipment while energized.
Insure proper grounding to protective earthing.
When installing an add-on station, consult the appropriate system layout diagrams. These figures, when
used in conjunction with the station installation information and cable layout guide, should provide all the
information necessary to install additional Page/Party stations.
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
Model 703-006
610-777-1374  800-492-1212  Fax: 610-796-5954
. - .
GAI TRONICS COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-367C
®
Series
