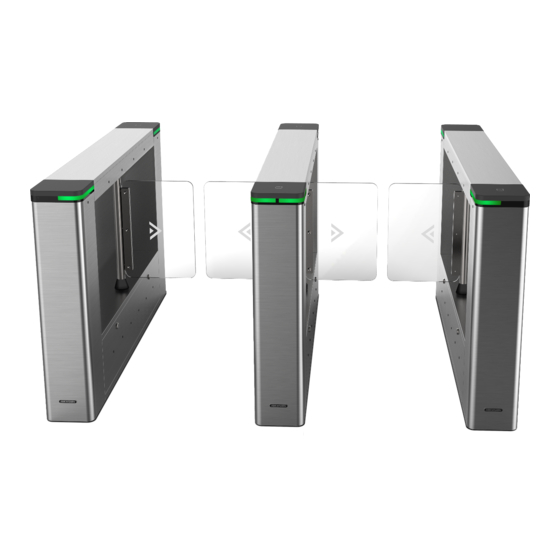

DS-K3B501S Series Swing Barrier
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K3B501S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-K3B501S Series

Summary of Contents for HIKVISION DS-K3B501S Series

  • Page 1 DS-K3B501S Series Swing Barrier User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K3B501S Series Swing Barrier User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-K3B501S Series Swing Barrier User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 6 DS-K3B501S Series Swing Barrier User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 7 DS-K3B501S Series Swing Barrier User Manual Cautions: • Stainless steel may be corroded in some circumstances. You need to clean and care the device by using the stainless steel cleaner. It is suggested to clean the device every month. • Do not drop the device or subject it to physical shock, and do not expose it to high electromagnetism radiation.
  • Page 8 DS-K3B501S Series Swing Barrier User Manual Available Models Product Name Model Description Swing Barrier DS-K3B501S-L Left Pedestal DS-K3B501S-M Middle Pedestal DS-K3B501S-R Right Pedestal...

  • Page 9: Table Of Contents

    DS-K3B501S Series Swing Barrier User Manual Contents Chapter 1 Overview ........................1 1.1 Introduction ........................... 1 1.2 Main Features ........................1 Chapter 2 Wiring ........................3 2.1 Components Introduction ...................... 3 2.2 Wiring Electric Supply ......................4 2.3 Wire Interconnecting Cable ....................5 2.3.1 General Wiring ......................
  • Page 10 DS-K3B501S Series Swing Barrier User Manual 4.3 Initialize Device ........................24 4.4 Switch to RS-485/RS-232 Mode ................... 25 4.5 Switch Relay Output Mode (NO/NC) ..................26 4.5.1 Barrier Control Relay Output Mode ................26 4.5.2 Alarm Relay Output Mode (NO/NC) ................27 Chapter 5 Activation .........................
  • Page 11 DS-K3B501S Series Swing Barrier User Manual 6.4.10 Customize Person Information .................. 48 6.4.11 Configure Resident Information ................48 6.4.12 Configure Additional Information ................49 6.4.13 Import and Export Person Identify Information ............49 6.4.14 Import Person Information ..................49 6.4.15 Import Person Pictures ..................... 50 6.4.16 Export Person Information ..................
  • Page 12 DS-K3B501S Series Swing Barrier User Manual 6.8.2 Configure Device Actions for Access Event ..............75 6.8.3 Configure Device Actions for Card Swiping ..............77 6.9 Door Control ........................78 6.9.1 Control Door Status ..................... 78 6.9.2 Check Real-Time Access Records ................79 6.10 Event Center ........................
  • Page 13 DS-K3B501S Series Swing Barrier User Manual Appendix D. Table of Audio Index Related Content ..............98 Appendix E. Error Code Description ..................99 Appendix F. Communication Matrix and Device Command ............. 101...

  • Page 14: Chapter 1 Overview

    DS-K3B501S Series Swing Barrier User Manual Chapter 1 Overview 1.1 Introduction The swing barrier with two barriers and 12 IR lights is designed to detect unauthorized entrance or exit. By adopting the swing barrier integratedly with the access control system, person should authenticate to pass through the lane via swiping IC or ID card, scanning QR code, etc.
  • Page 15 DS-K3B501S Series Swing Barrier User Manual • Barrier remains open when powered down • Fire alarm passing When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation • Valid passing duration settings System will cancel the passing permission if a person does not pass through the lane within the valid passing duration •...

  • Page 16: Chapter 2 Wiring

    DS-K3B501S Series Swing Barrier User Manual Chapter 2 Wiring 2.1 Components Introduction By default, basic components of the turnstile are connected well. The pedestals can communicate by wiring the interconnecting cables. And the turnstile supports wiring the AC electric supply for the whole system's power supply.

  • Page 17: Wiring Electric Supply

    DS-K3B501S Series Swing Barrier User Manual Figure 2-2 Components 2 Note If the turnstile contains two lanes, standing at the entrance position, the IR boards on the left pedestal are the IR sending boards. The IR boards on the right pedestal are the IR receiving boards.

  • Page 18: Wire Interconnecting Cable

    DS-K3B501S Series Swing Barrier User Manual Note • The cable bare part should be no more than 8 mm. It is suggested that you can immerse the bare part into the liquid tin. If possible, wear an insulation cap at the end of the bare cable.

  • Page 19: Wire Face Recognition Terminal

    DS-K3B501S Series Swing Barrier User Manual Figure 2-4 Wire General Device Note • The supplied interconnecting cable length is 3.75 m. If you need a longer one, ask our technique supports or sales and purchase for 5.5 m interconnecting cables.

  • Page 20: Terminal Description

    DS-K3B501S Series Swing Barrier User Manual Figure 2-5 Face Recognition Terminal Wiring Note • The supplied interconnecting cable length is 3.75 m. If you need a longer one, ask our technique supports or sales and purchase 5.5 m interconnecting cables.

  • Page 21: Slave Control Board Terminal Description

    DS-K3B501S Series Swing Barrier User Manual 2.4.2 Slave Control Board Terminal Description The slave lane control board contains interconnecting interfaces, BUS, motor encoder interface, debugging port, door closed position interface, seven-segment display, strip light interface (reserved), supercapacitor, power interface, and motor drive interface.

  • Page 22: Main Control Board Terminal Description

    DS-K3B501S Series Swing Barrier User Manual 2.4.3 Main Control Board Terminal Description Table 2-1 Main Control Board Terminal Description Main Controllingn Board Terminal Description Power Output 1 +12 V Power Output Grounding Wiegand Card Indicator of Card Reader Control Output (Invalid Card...
  • Page 23 DS-K3B501S Series Swing Barrier User Manual Main Controllingn Board Terminal Description RS-485 Interface Grounding RS-485 B- Connect to Card Reader RS485- RS-485 B+ Connect to Card Reader RS485+ Grounding RS-485 C- Connect to Card Reader RS485- RS-485 C+ Connect to Card Reader RS485+...

  • Page 24: Main Control Board Serial Port Id Description

    DS-K3B501S Series Swing Barrier User Manual Main Controllingn Board Terminal Description Alarm Output NO/NC1 Alarm Output Relay 1 (Dry Contact) COM1 NO/NC2 Alarm Output Relay 2 (Dry Contact) COM2 NO/NC3 Alarm Output Relay 3 (Dry Contact) COM3 NO/NC4 Alarm Output Relay 4 (Dry Contact)
  • Page 25 Use the jumper cap to switch the serial port communication mode with the lane controller. By default, the interface is wired and it is in RS-485 communication mode. If wiring other controllers (compatible with Hikvision communication protocol), use the jumper cap to switch between RS-485 and RS-232 communication mode.
  • Page 26 DS-K3B501S Series Swing Barrier User Manual UART4 The serial port is in the wiring interface according to the picture above, which has a fixed RS-232 communication mode to communicate with the master lane controller. It contains no jumper cap and cannot change the communication mode.

  • Page 27: Wiring

    DS-K3B501S Series Swing Barrier User Manual 2.4.5 RS-485 Wiring Note • There are four RS-485 interfaces, which are for connecting ID card reader, IC card reader, QR code scanner, fingerprint and card reader, card recycler, text screen, fingerprint reader, and face recognition terminal.

  • Page 28: Wiring

    DS-K3B501S Series Swing Barrier User Manual 2.4.6 RS-232 Wiring Note • There are three RS-232 interfaces (UART4, UART7, and UART8). UART7 and UART8 can connect QR code scanner, card recycler, and text screen, while UART4 can connect QR code scanner, card recycler, text screen, and face recognition terminal.

  • Page 29: Wiegand Wiring

    DS-K3B501S Series Swing Barrier User Manual 2.4.7 Wiegand Wiring Note Connect the OK/ERR/BZ if the access controller should control the LED and buzzer of the Wiegand card reader. 2.4.8 Barrier Control Wiring By default, the barrier has connected with the main control board. The lane control board can control the barrier status.
  • Page 30 DS-K3B501S Series Swing Barrier User Manual Entering Wiring Exiting Wiring...

  • Page 31: Alarm Output Wiring

    DS-K3B501S Series Swing Barrier User Manual 2.4.9 Alarm Output Wiring Note For details about changing the relay output status via the jumper cap, see Alarm Relay Output Mode (NO/NC) . 2.4.10 Fire Alarm Module Wiring You can view the fire alarm module wiring diagram.
  • Page 32 DS-K3B501S Series Swing Barrier User Manual Figure 2-8 Fire Alarm Module Wiring...

  • Page 33: Chapter 3 Installation

    DS-K3B501S Series Swing Barrier User Manual Chapter 3 Installation 3.1 Disassemble Pedestals Before installation, you should use the key to open the pedestals. View the pictures below to find the lock holes. Figure 3-1 Lock Holes 3.2 Install Pedestals Before You Start Prepare for the installation tools, check the device and the accessories, and clear the installation base.
  • Page 34 DS-K3B501S Series Swing Barrier User Manual Figure 3-2 Dimension 1. Prepare for the installation tools, check the components, and prepare for the installation base. 2. Draw a central line on the installation surface of the left or right pedestal. 3. Draw other parallel lines for installing the other pedestals.
  • Page 35 DS-K3B501S Series Swing Barrier User Manual 7. Secure the pedestals with expansion bolts. Note • Do not immerse the pedestal in the water. In special circumstances, the immersed height should be no more than 150 mm. • The installation footprint is as follows:...

  • Page 36: Chapter 4 Device Settings

    DS-K3B501S Series Swing Barrier User Manual Chapter 4 Device Settings After installation and wiring completed, you should set the barriers closed position (study mode) before entering the working mode. You can also set the test mode, normal mode, passing mode and memory mode, pair the keyfob,...

  • Page 37: Pair Keyfob (Optional)

    DS-K3B501S Series Swing Barrier User Manual 6. Power on the device again. Note For details about the DIP switch value and meaning, see DIP Switch Description. The barrier will open automatically and turns back to the closed position. At this circumstance, the device enters the normal mode.

  • Page 38: Switch To Rs-485/Rs-232 Mode

    DS-K3B501S Series Swing Barrier User Manual Figure 4-1 Initialization Jumper Cap 2. Disconnect the power and reboot the device. The device buzzer buzzes a long beep. 3. When the beep stopped, plug the jumper cap back. 4. Disconnect the power and power on the device again.

  • Page 39: Switch Relay Output Mode (No/Nc)

    DS-K3B501S Series Swing Barrier User Manual Figure 4-3 Jumper Cap Status of RS-232 Interface 4.5 Switch Relay Output Mode (NO/NC) 4.5.1 Barrier Control Relay Output Mode The pins of the barrier control relay on the main control board is as below:...

  • Page 40: Alarm Relay Output Mode (No/Nc)

    DS-K3B501S Series Swing Barrier User Manual 4.5.2 Alarm Relay Output Mode (NO/NC) Alarm Relay Output Mode (NO): Alarm Relay Output Mode (NC):...

  • Page 41: Chapter 5 Activation

    • Get the SADP software from the supplied disk or the official website http:// www.hikvision.com/en/ , and install the SADP according to the prompts. • The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 42: Activate Device Via Client Software

    DS-K3B501S Series Swing Barrier User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 43 DS-K3B501S Series Swing Barrier User Manual three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 44: Chapter 6 Client Software Configuration

    DS-K3B501S Series Swing Barrier User Manual Chapter 6 Client Software Configuration 6.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 6-1 Flow Diagram of Configuration on Client Software 6.2 Device Management The client supports managing access control devices and video intercom devices.

  • Page 45: Add Device

    DS-K3B501S Series Swing Barrier User Manual 6.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol. The client also supports importing multiple devices in a batch when there are large amount of devices to be added.
  • Page 46 DS-K3B501S Series Swing Barrier User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 47 DS-K3B501S Series Swing Barrier User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 48 DS-K3B501S Series Swing Barrier User Manual Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 49 DS-K3B501S Series Swing Barrier User Manual 4. Select IP Segment as the adding mode. 5. Enter the required information. Start IP Enter a start IP address. End IP Enter an end IP address in the same network segment with the start IP.

  • Page 50: Reset Device Password

    DS-K3B501S Series Swing Barrier User Manual 2. Click Device tab on the top of the right panel. 3. Click Add to open the Add window, and then select Batch Import as the adding mode. 4. Click Export Template and then save the pre-defined template (CSV file) on your PC.

  • Page 51: Group Management

    DS-K3B501S Series Swing Barrier User Manual Steps 1. Enter Device Management page. 2. Click Online Device to show the online device area. All the online devices in the same subnet will display in the list. 3. Select the device from the list and click on the Operation column.

  • Page 52: Import Resources To Group

    DS-K3B501S Series Swing Barrier User Manual 6.3.2 Import Resources to Group You can import the device resources (such as alarm inputs/outputs, access points, etc.) to the added group in a batch. Before You Start Add a group for managing devices. Refer to Add Group .

  • Page 53: Person Management

    DS-K3B501S Series Swing Barrier User Manual Steps 1. Enter the Device Management module. 2. Click Device Management → Group to enter the group management page. All the added groups are displayed on the left. 3. Click a group to show the resources added to this group.

  • Page 54: Configure Basic Information

    DS-K3B501S Series Swing Barrier User Manual 6.4.2 Configure Basic Information You can add person to the client software one by one and configure the person's basic information such as name, gender, phone number, etc. Steps 1. Enter Person module. 2. Select an organization in the organization list to add the person.
  • Page 55 DS-K3B501S Series Swing Barrier User Manual Figure 6-2 Issue a Card by Local Mode 6. Set other related parameters. Card Enrollment Station Select the model of the connected card enrollment station. Note Currently, the supported card enrollment station models include DS-K1F100-D8, DS-K1F100- M, DS-K1F100-D8E, and DS-K1F180-D8E.

  • Page 56: Upload A Face Photo From Local Pc

    DS-K3B501S Series Swing Barrier User Manual This field is only available when the model is DS-K1F100-D8, DS-K1F100-D8E, or DS-K1F180- D8E. If the card is M1 card, then you can enable the M1 Card Encryption function and select the sector of the card to encrypt.

  • Page 57: Collect Face Via Access Control Device

    DS-K3B501S Series Swing Barrier User Manual Steps 1. Enter Person module. 2. Select an organization in the organization list to add the person and click Add. Note Enter the person's basic information first. For details about configuring person's basic information, refer to Configure Basic Information .

  • Page 58: Collect Fingerprint Via Client

    DS-K3B501S Series Swing Barrier User Manual 3) Click OK to save the captured photo. 7. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons .

  • Page 59: Collect Fingerprint Via Access Control Device

    DS-K3B501S Series Swing Barrier User Manual 6.4.8 Collect Fingerprint via Access Control Device When adding person, you can collect fingerprint information via the access control device's fingerprint module. The fingerprints recorded can be used as credentials of the persons to access the authorized doors.
  • Page 60 DS-K3B501S Series Swing Barrier User Manual You can select one or more access groups for the person to give him/her the authorization to the selected access points. For details, refer to Set Access Group to Assign Access Authorization to Persons .

  • Page 61: Customize Person Information

    DS-K3B501S Series Swing Barrier User Manual 6.4.10 Customize Person Information You can customize the person properties which are not pre-defined in the client according to actual needs, e.g., place of birth. After customizing, when add a person, you can enter the custom information to make the person information complete.

  • Page 62: Configure Additional Information

    DS-K3B501S Series Swing Barrier User Manual 5. Confirm to add the person. - Click Add to add the person and close the Add Person window. - Click Add and New to add the person and continue to add other persons.

  • Page 63: Import Person Pictures

    DS-K3B501S Series Swing Barrier User Manual Note • If the person has multiple cards, separate the card No. with semicolon. • Items with asterisk are required. • By default, the Hire Date is the current date. 7. Click to select the CSV file with person information.

  • Page 64: Export Person Information

    DS-K3B501S Series Swing Barrier User Manual 6.4.16 Export Person Information You can export the added persons' information to local PC as a CSV file. Before You Start Make sure you have added persons to an organization. Steps 1. Enter the Person module.

  • Page 65: Move Persons To Another Organization

    DS-K3B501S Series Swing Barrier User Manual Steps Note • If the person name stored in the device is empty, the person name will be filled with the issued card No. after importing to the client. • The gender of the persons will be Male by default.

  • Page 66: Report Card Loss

    DS-K3B501S Series Swing Barrier User Manual 3. Optional: Enter key words (name or person ID) in the input box to filter the person(s) that need issuing cards. 4. Optional: Click Settings to set the card issuing parameters. For details, refer to .

  • Page 67: Configure Schedule And Template

    DS-K3B501S Series Swing Barrier User Manual Local Mode: Issue Card by Card Enrollment Station Connect a card enrollment station to the PC running the client. You can place the card on the card enrollment station to get the card number.

  • Page 68: Add Holiday

    DS-K3B501S Series Swing Barrier User Manual 6.5.1 Add Holiday You can create holidays and set the days in the holidays, including start date, end date, and holiday duration in one day. Steps Note You can add up to 64 holidays in the software system.
  • Page 69 DS-K3B501S Series Swing Barrier User Manual Steps Note You can add up to 255 templates in the software system. 1. Click Access Control → Schedule → Template to enter the Template page. Note There are two default templates: All-Day Authorized and All-Day Denied, and they cannot be edited or deleted.

  • Page 70: Set Access Group To Assign Access Authorization To Persons

    DS-K3B501S Series Swing Barrier User Manual 4) Optional: Select a selected holiday in the right list and click to remove the selected one, or click Clear to clear all the selected holiday(s) in the right list. 7. Click Save to save the settings and finish adding the template.
  • Page 71 DS-K3B501S Series Swing Barrier User Manual Figure 6-3 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 72: Configure Advanced Functions

    DS-K3B501S Series Swing Barrier User Manual You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later. Figure 6-5 Data Synchronization 6.7 Configure Advanced Functions You can configure the advanced functions of access control to meet some special requirements in different scene.
  • Page 73 DS-K3B501S Series Swing Barrier User Manual 2. Select an access device to show its parameters on the right page. 3. Turn the switch to ON to enable the corresponding functions. Note • The displayed parameters may vary for different access control devices.
  • Page 74 DS-K3B501S Series Swing Barrier User Manual Note • The displayed parameters may vary for different access control devices. • Some of the following parameters are not listed in the Basic Information page, click More to edit the parameters. Name Edit the card reader name as desired.
  • Page 75 DS-K3B501S Series Swing Barrier User Manual Configure Parameters for Card Reader After adding the access control device, you can configure its card reader parameters. Steps 1. Click Access Control → Advanced Function → Device Parameter . 2. In the device list on the left, click to expand the door, select a card reader and you can edit the card reader's parameters on the right.
  • Page 76 DS-K3B501S Series Swing Barrier User Manual Communicate with Controller Every When the access control device cannot connect with the card reader for longer than the set time, the card reader will turn offline automatically. Fingerprint Recognition Level Select the fingerprint recognition level in the drop-down list.
  • Page 77 DS-K3B501S Series Swing Barrier User Manual • If you select According to DIP Settings, the device will follow the controller's DIP settings to control the barrier. The settings on the software will be invalid. • If you select According to Door's Schedule Settings, the device will follow the schedule configured in the client software to control the barrier.

  • Page 78: Configure Remaining Open/Closed

    DS-K3B501S Series Swing Barrier User Manual 4. Click OK. 6.7.2 Configure Remaining Open/Closed You can set the status of the door as open or closed. For example, you can set the door remaining closed in the holiday, and set the door remaining open in the specified period of the work day.

  • Page 79: Configure Multi-Factor Authentication

    DS-K3B501S Series Swing Barrier User Manual Note Up to 8 time durations can be set to one holiday period. 5) Perform the following operations to edit the time durations. • Move the cursor to the time duration and drag the time duration on the timeline bar to the desired position when the cursor turns to •...
  • Page 80 DS-K3B501S Series Swing Barrier User Manual 7) Optional: Select the person/card group(s), and then click Apply to re-apply access group that failed to be applied previously to the access control device. 4. Select an access control point (door) of selected device on the left panel.

  • Page 81: Configure Custom Wiegand Rule

    DS-K3B501S Series Swing Barrier User Manual Note • The authentication times should be larger than 0 and smaller than the added personnel quantity in the personnel group. • The maximum value of authentication times is 16. 6) Click Save. Note •...

  • Page 82: Configure Card Reader Authentication Mode And Schedule

    DS-K3B501S Series Swing Barrier User Manual Note • Up to 80 bits are allowed in the total length. • The odd parity start bit, the odd parity length, the even parity start bit and the even parity length range from 1 to 80 bit.
  • Page 83 DS-K3B501S Series Swing Barrier User Manual Steps 1. Click Access Control → Advanced Function → Authentication to enter the authentication mode configuration page. 2. Select a card reader on the left to configure. 3. Set card reader authentication mode. 1) Click Configuration.

  • Page 84: Configure First Person In

    DS-K3B501S Series Swing Barrier User Manual Figure 6-9 Set Authentication Modes for Card Readers 6. Optional: Select a configured day and click Copy to Week to copy the same settings to the whole week. 7. Optional: Click Copy to to copy the settings to other card readers.

  • Page 85: Configure Anti-Passback

    DS-K3B501S Series Swing Barrier User Manual Note The remain open duration should be between 0 and 1440 minutes. By default, the remain open duration is 10 minutes. Disable Remaining Open after First Person Disable the function of first person in, namely normal authentication.

  • Page 86: Configure Device Parameters

    DS-K3B501S Series Swing Barrier User Manual 4. Click of the selected first card reader in the Card Reader Afterward column to open the select card reader dialog. 5. Select the afterward card readers for the first card reader. Note Up to four afterward card readers can be added as afterward card readers for one card reader.

  • Page 87: Configure Linkage Actions For Access Control

    DS-K3B501S Series Swing Barrier User Manual Enable M1 Card Encryption M1 card encryption can improve the security level of authentication. Steps Note The function should be supported by the access control device and the card reader. 1. Enter the Access Control module.

  • Page 88: Configure Device Actions For Access Event

    DS-K3B501S Series Swing Barrier User Manual Steps Note The linkage actions here refer to the linkage of the client software's own actions such as audible warning, email linkage, etc. 1. Click Event Management → Access Control Event . The added access control devices will display in the device list.
  • Page 89 DS-K3B501S Series Swing Barrier User Manual Steps Note The linkage actions should be supported by the device. 1. Click Access Control → Linkage Configuration . 2. Select the access control device from the list on the left. 3. Click Add to add a new linkage.

  • Page 90: Configure Device Actions For Card Swiping

    DS-K3B501S Series Swing Barrier User Manual Edit Linkage Select the configured linkage settings in the device list and you can edit Settings its event source parameters, including event source and linkage target. Delete Linkage Select the configured linkage settings in the device list and click Delete Settings to delete it.

  • Page 91: Door Control

    DS-K3B501S Series Swing Barrier User Manual Note The device should support alarm input function. Access Point The door status of open, close, remain open, or remain closed will be triggered. Audio Play The audio prompt will be triggered. And the select audio index related audio content will be played according to the configured play mode.

  • Page 92: Check Real-Time Access Records

    DS-K3B501S Series Swing Barrier User Manual Note For managing the access point group, refer to Group Management in the user manual of the client software. The doors in the selected access control group will display. 3. Click a door icon to select a door, or press Ctrl and select multiple doors.

  • Page 93: Event Center

    DS-K3B501S Series Swing Barrier User Manual The access records triggered at the doors in the selected group will display in real time. You can view the details of the records, including card No., person name, organization, event time, etc. 2. Optional: Check the event type and event status so that these events will show in the list if the events are detected.

  • Page 94: View Real-Time Events

    DS-K3B501S Series Swing Barrier User Manual Figure 6-10 Arm Device After turned on, the device(s) will be armed. And notifications about the events triggered by the armed device(s) will be automatically sent to the client software in real-time. 6.10.2 View Real-Time Events In the Real-time Event module of the event center page, you can view the real-time event information, including event source, event time, priority, event key words, etc.
  • Page 95 DS-K3B501S Series Swing Barrier User Manual Figure 6-11 View Real-Time Events 2. Set the filter conditions or enter the event key word in the Filter text field to display the required events only. Device Type The type of device that occurred the event.

  • Page 96: Search Historical Events

    DS-K3B501S Series Swing Barrier User Manual 3) View the related picture, detail description and handing records of the event. 4) Optional: Hover the cursor on the related picture, and then click the download icon on the upper-right corner of the picture to download it to the local PC. You can set the saving path manually.
  • Page 97 DS-K3B501S Series Swing Barrier User Manual Figure 6-13 Search History Event 2. Set the filter conditions to display the required events only. Time The client time when the event starts. Search by Group: Search the events occurred on the resources in the selected group.
  • Page 98 DS-K3B501S Series Swing Barrier User Manual Note Click Show More to set the event type, card reader type, person name, card no., organization. Group The group of the device that occurred the event. You should set the group as condition only when you select the Device Type as All.

  • Page 99: Remote Configuration Via Client Software

    DS-K3B501S Series Swing Barrier User Manual Note After an event is handled, the Handle button will become Add Remark, click Add Remark to add more remarks for this handled event. 6. Optional: Select an event and then click Send Email, and the information details of this event will be sent by email.

  • Page 100: Set System Maintenance

    DS-K3B501S Series Swing Barrier User Manual 4. Optional: Check Enable NTP and set the NTP server address, the NTP port, and the synchronization interval. 5. Optional: Check Enable DST and set the DST start time, end time and the bias.

  • Page 101: Manage Keyfob User

    DS-K3B501S Series Swing Barrier User Manual 5. Optional: Select a user in the user list and click Edit to edit the user. You are able to edit the user password, the IP address, the MAC address and the user permission.

  • Page 102: Configure Lane Parameters

    DS-K3B501S Series Swing Barrier User Manual 6.11.8 Configure Lane Parameters You can set the passing parameters for a person to pass through the turnstile. Steps 1. Click Maintenance and Management → Device to enter the device list. 2. Click to enter the remote configuration page.

  • Page 103: Configure Screen Parameters

    DS-K3B501S Series Swing Barrier User Manual Select the screen's position on the device. If select Exit from the drop-down list, the screen will be installed at the exit position of the device. Screen Model Select the screen model from the drop-down list.

  • Page 104: Configure Advanced Network

    DS-K3B501S Series Swing Barrier User Manual Invalid The device will not count people. If the device people counting function is enabled, the people counting function is still disabled. By Detection The device will count the people who passing through the device depending on the detection result.

  • Page 105: View Relay Status

    DS-K3B501S Series Swing Barrier User Manual Note • The imported audio file should be in MEM format. • For details about converting other format of the audio file to MEM format, see the audio conversion manual. • If you use the third part software to create or edit an audio file, the volume of the audio file should be no less than 0 ×...

  • Page 106: Appendix A. Tips For Scanning Fingerprint

    DS-K3B501S Series Swing Barrier User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 107 DS-K3B501S Series Swing Barrier User Manual Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another...

  • Page 108: Appendix B. Dip Switch

    DS-K3B501S Series Swing Barrier User Manual Appendix B. DIP Switch B.1 DIP Switch Description The DIP switch is on the master lane control board. No.1 to No 8 is from the low bit to the high bit. When the switch is towards ON, it means the switch is enabled, otherwise, the switch is off. If you set the DIP switch like the figure displayed below, its binary value is 00001100, and its decimal value is 12.
  • Page 109 DS-K3B501S Series Swing Barrier User Manual Device Mode Function Decimal Value Binary Value Controlled 0010 Entrance and Free Exit Free Bi-​ d irection 0011 Free Entrance and 0100 Controlled Exit Free Entrance and 0101 Prohibit Exit Prohibited Bi- 0110 direction...

  • Page 110: Appendix C. Event And Alarm Type

    DS-K3B501S Series Swing Barrier User Manual Appendix C. Event and Alarm Type Event Alarm Type Tailgating Visual and Audible Reverse Passing Visual and Audible Force Accessing None Climb over Barrier Visual and Audible Overstay Visual and Audible Passing Timeout None...
  • Page 111 DS-K3B501S Series Swing Barrier User Manual Appendix D. Table of Audio Index Related Content Index Content Authenticated. Card No. does not exist. Card No. and fingerprint mismatch. Climbing over the barrier. Reverse passing. Passing timeout. Intrusion. Force accessing. Tailgating. No permissions.
  • Page 112 DS-K3B501S Series Swing Barrier User Manual Appendix E. Error Code Description The swing barrier will display the error code on the seven-segment display if error occurred. Refer to the table below to find the description of each number. Error Reason...
  • Page 113 DS-K3B501S Series Swing Barrier User Manual Error Reason Code Error Reason Code The Third IR Beam on Lower IR Lower IR Board 8 Offline Board Triggered The Fourth IR Beam on Lower Lower IR Board 9 Offline IR Board Triggered...
  • Page 114 Figure F-1 QR Code of Communication Matrix Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices.
  • Page 115 DS-K3B501S Series Swing Barrier User Manual Figure F-2 Device Command...
  • Page 116 UD18744B...

This manual is also suitable for:

Ds-k3b501s-lDs-k3b501s-mDs-k3b501s-r

Table of Contents
