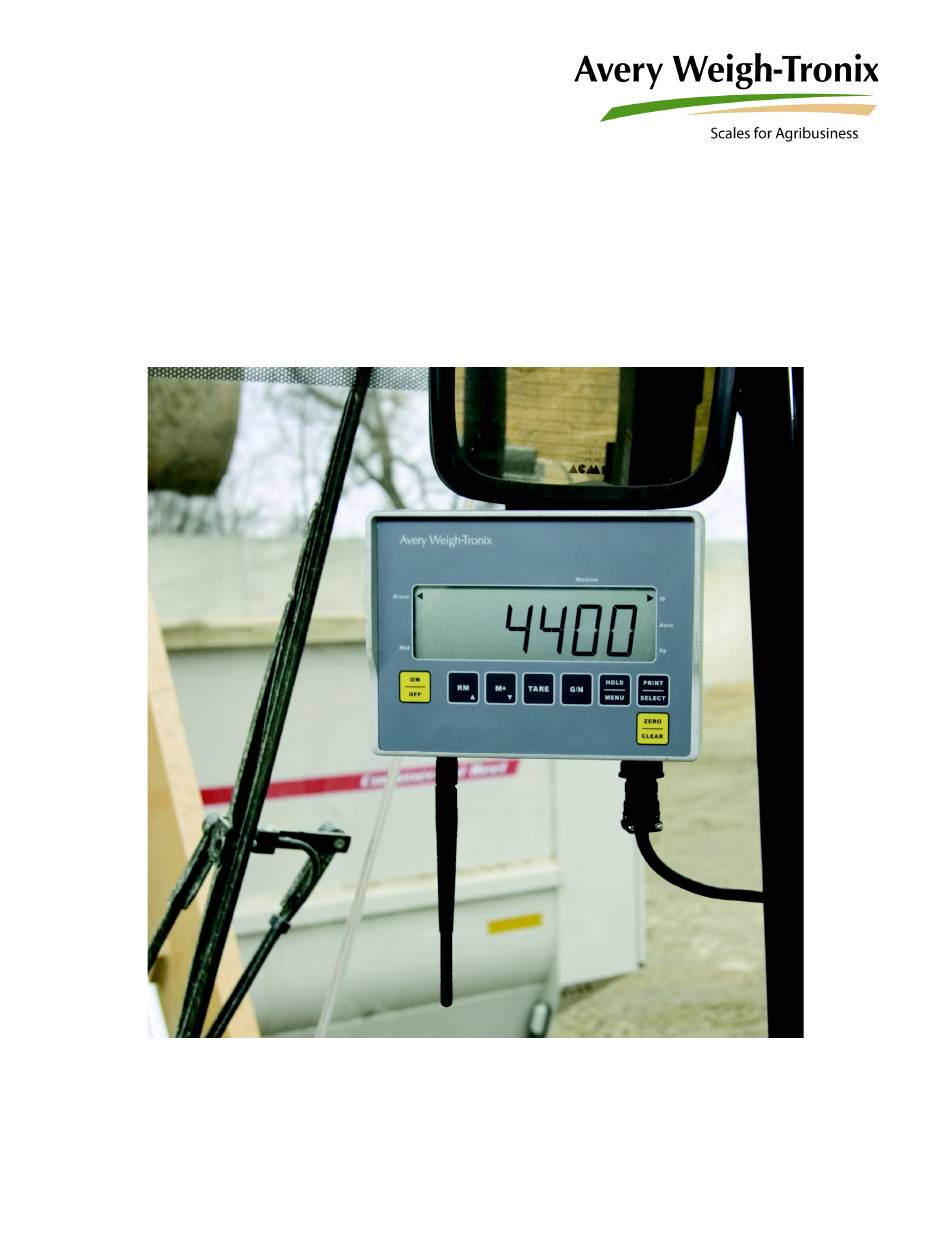

- Page 1 RD40RF Remote Display Agricultural Remote Display User Instructions 43122-0011 Issue AB May 2013...
- Page 2 Full acknowledgment of the source must be given. Avery Weigh-Tronix is a registered trade mark of the Avery Weigh-Tronix, LLC. This publication was correct at the time of going to print however, Avery Weigh-Tronix, LLC reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
-
Page 3: Table Of Contents
Chapter 4 Wireless Configuration ......................15 Configuration Menu ......................15 Access the RD40RF Configuration Menu ................ 16 RD40RF Setup of the Wireless Option ................17 Viewing or Changing the Active RF Channel ..............18 View the Active RF ....................18 Changing the Active RF Channel ................ -
Page 4: Chapter 1 General Information And Warnings
Warnings mean that failure to follow specific practices and procedures may have major consequences such as injury or death. NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. RD40RF Remote Display User Instructions... -
Page 5: Installation
Do not attempt to operate or complete any procedure on a machine unless you have received the appropriate training or read the instruction books. 1.6 Sharp Objects Do not use sharp objects such as screwdrivers or long fingernails to operate the keys. RD40RF Remote Display User Instructions... -
Page 6: Declaration Of Conformity (Ce Approval)
1.7 Declaration of Conformity (CE approval) RD40RF Remote Display User Instructions... -
Page 7: Fcc And Emc Declarations Of Compliance
Avery Weigh-Tronix is dedicated to customer service. We understand downtime is not an option for AG producers and we're ready to help anytime. The technical support team for all Avery Weigh-Tronix agri-business scales is available 24 hours a day 7 days a week. -
Page 8: Chapter 2 Introduction
2040 Series 3060 Touchscreen In addition these indicators must be fitted with the factory installed RD40RF option or the field installed RM-200 Transceiver. A RS-232 serial port must be available to connect the RM-200. After installation, if the system was pre-configured from the factory, the system should be operational when they are turned on. -
Page 9: Chapter 3 Installation
WARNING! Do not plug into a 24VDC output as this can damage the RD40RF and will void the warranty. The RD40RF power connector is shown below. -
Page 10: Front Panel / Connector Options
3.1 Front Panel / Connector Options The wireless RD40RF uses the same overlay as the Model 640, but has only a 2 pin 10-17 VDC connector and an antenna on the bottom of the indicator. See Figure 3.1. STANDARD V-MOUNT... -
Page 11: Setting The Backlight Operation
(FRONT VIEW) Figure 3.2 Bottom Connections 3.2 Setting the Backlight Operation The Model RD40RF has a backlight you can configure. Follow these steps to configure backlight operation. From the G/N mode, press and hold the HOLD/MENU key for two beeps (2 sec), then release…... -
Page 12: Entering / Viewing The Audible Keypad Setting
Indicator returns to the G/N mode. 3.3 Entering / Viewing the Audible Keypad Setting The Model RD40RF keys have audible feedback that can be configured for off, low, medium, or high. (Default is high) From the G/N mode, press and hold the HOLD/MENU key for two beeps (2 sec), then release…... -
Page 13: Interface With A 640 Series Indicator
Model 640. Any data displayed on the Model 640 is also displayed on the RD40. The RD40RF is a wireless remote display which allows full control of the Model 640 from the seven keys on the RD40RF. -
Page 14: Using With The 1040/2040 Series Indicators
3.5 Using with the 1040/2040 Series Indicators The RD40RF is a wireless remote display that is compatible with many of the Avery Weigh-Tronix indicators. This document describes using it our 1040/2040 batching indicators. We will describe the setup and usage of the RD40RF. There may be references to the standard RD40RF manual that is supplied in the shipping box it came in. -
Page 15: Rd40Rf Interface With 1040/2040 Indicators
2040 AWT indicators. If there are any questions on the operation of the 1040/2040, please reference the corresponding user manual. The RD40RF has the same display as the 1040/2040 indicator. This means that if you see it on one of the displays, the same is shown on the other. We must remember that the RD40RF is used with many other indicators that have different functionality. -
Page 16: Interface With A Model 3060 Indicator
When using the Feed Foreman program the RM-200 that communicates to the RD40RF must be connected to Comm 2 serial port. For all other software applications it can be connected to Comm 3 or Comm2 serial port. These serial ports need to be turned on. -
Page 17: Chapter 4 Wireless Configuration
Wireless Configuration 4.1 Configuration Menu Figure 4.1 shows the configuration menu for the RD40RF. Figure 4.1 Configuration Menu RD40RF Remote Display User Instructions... -
Page 18: Access The Rd40Rf Configuration Menu
4.2 Access the RD40RF Configuration Menu To access the configuration menu, follow these steps: From the G/N mode, press and hold the HOLD/MENU key for three beeps (3 seconds), then release… SET.PAS is displayed. Use the numeric entry procedure, shown at left, and enter the password 640, then press the PRINT/SELECT key to accept it …... -
Page 19: Rd40Rf Setup Of The Wireless Option
The RD40RF can be setup for four different wireless scenarios. See the Configuration Menu on page 15 PT-PT This is the standard RF setup, used when one RD40RF is communicating to one Model 640 indicator. For proper PT-PT operation the RD40RF and the Model 640 indicator need to be configured as follows: RD40RF Set the RD40RF for PT-PT and network scale ID 1…10... -
Page 20: Viewing Or Changing The Active Rf Channel
The user can select the proper RF channel (scale specific) that the RD40RF will communicate with, so if there are multiple scales and only one RD40RF the RF channel is selected and then the weight information from that particular scale is shown on the RD40RF. -
Page 21: Rd40Rf Troubleshooting
Service Department at: Phone:1-800-458-7062 1-507-238-4461 If the product needs to be returned for service either contact the dealer/distributor or send prepaid to approved warranty center or return both the RD40RF and the Model 640 to: Service Department Avery Weigh-Tronix 1000 Armstrong Drive... - Page 22 RD40RF Remote Display User Instructions...
