3700LP
Bench Scale Series
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3700LP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avery Weigh-Tronix 3700LP

Summary of Contents for Avery Weigh-Tronix 3700LP

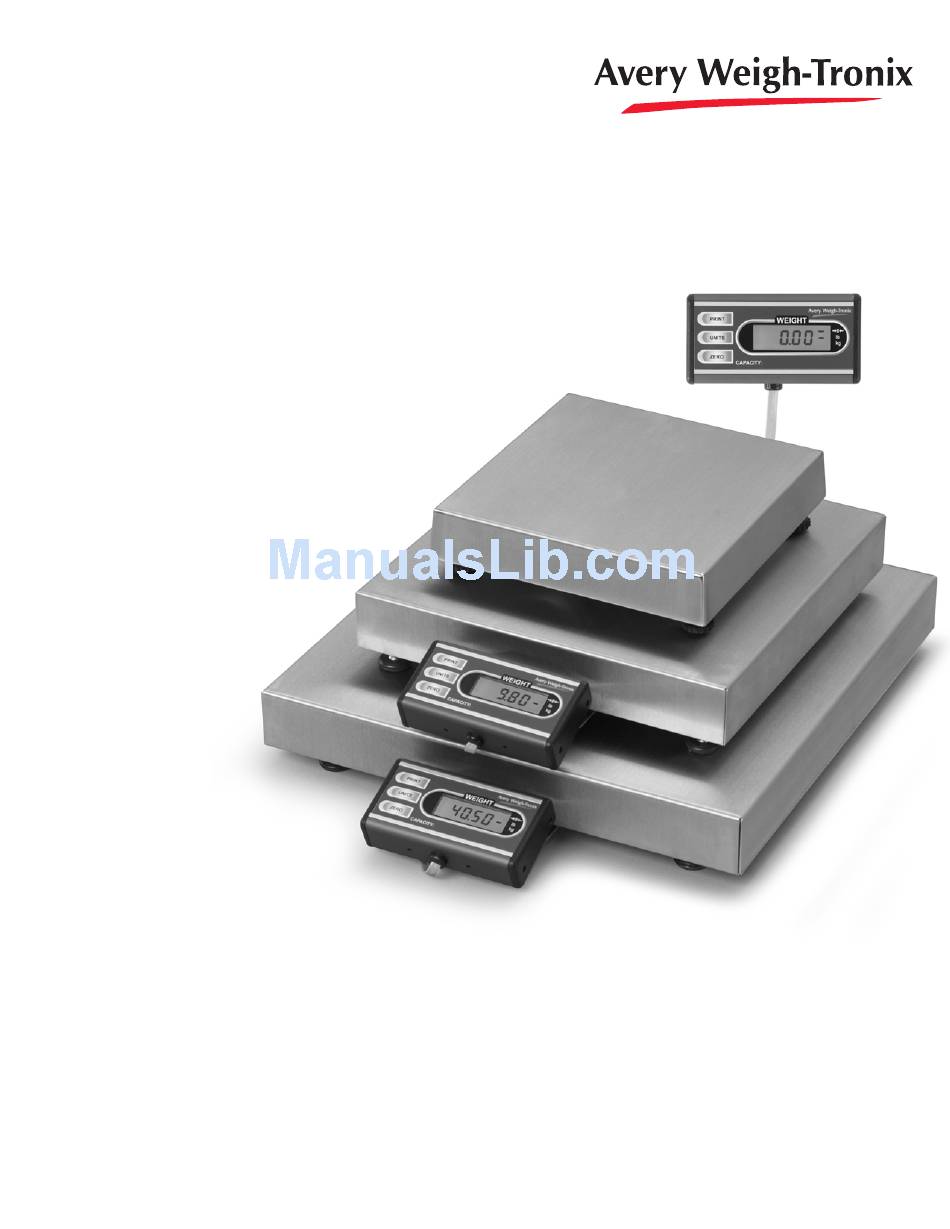

  • Page 1 3700LP Bench Scale Series User’s Manual...
  • Page 2 Risk of electrical shock. Do not remove cover. No user service- able parts inside. Refer servicing to qualified service personnel. Weigh-Tronix reserves the right to change specifications at any time. 10/16/06 3700LP_U.P65 PN 43018-0018C e2 Printed in USA 3700LP Bench Scale Series User’s Manual...

  • Page 3: Table Of Contents

    Sleep Mode and Power Down Timer ..........8 Battery Information ................9 Maintenance ..................9 RS-232 Protocols ................9 RS-232 Protocol Tables ............... 9 Diagnostics Menu ................13 Installing the Display Mounting Bracket ........... 15 3700LP Bench Scale Series User’s Manual...

  • Page 4: Specifications

    Display swivel bracket kit 12” pole display kit Footswitch for zero or print (factory installed)– With 4 ft. or 10 ft. long cable assembly. 230 VAC operation – 230 VAC ±10% - 15%, 50 Hz 3700LP Bench Scale Series User’s Manual...

  • Page 5: Introduction

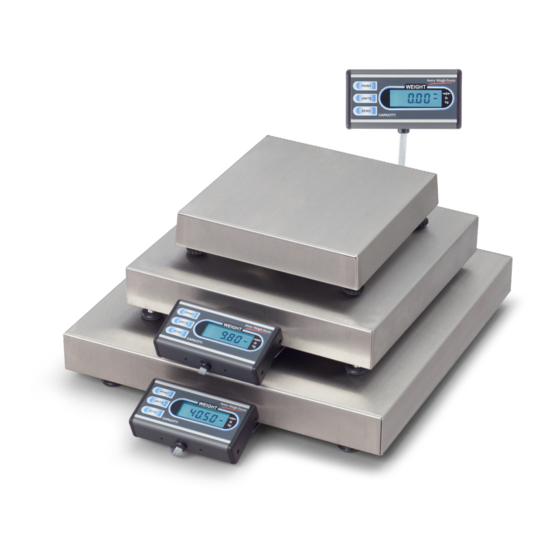

    Introduction The 3700LP Series is made up of several sizes and capacities of low profile bench scales. These scales have heavy duty bases, stainless steel, wrap- around shrouds and easy to see and operate display panels that can be mounted on the unit or remotely, by cable. See Specifications for all the options and models which are available.

  • Page 6: Front Panel

    1. Remove all weight from the scale and press the ZERO key. Weighment Display should show 0 weight. 2. Place the item to be weighed on the scale. Display shows the weight. 3. Remove the item and repeat steps 1 and 2 for each item. 3700LP Bench Scale Series User’s Manual...

  • Page 7: Printout Output

    Date information is supplied by the printer, not by the 3700. If your printer does not have date Figure 3 capabilities, the printout will not Small label sample printout show the date. (1.2" x .85") 3700LP Bench Scale Series User’s Manual...

  • Page 8: Operation Of The Optional Footswitch

    1 hour of sleep. To power up the scale from this state you must either press the ON button located near the connections on the back of the scale or unplug and then plug-in the power cord. 3700LP Bench Scale Series User’s Manual...

  • Page 9: Battery Information

    [LF] ......ASCII line feed [ETX] ...... ASCII end of text [HL] ......H = high scale status byte. L = low scale status byte. [STATUS] ....Toledo scale status byte [CONFIDENCE] ..Toledo confidence test status byte 3700LP Bench Scale Series User’s Manual...
  • Page 10 Always = 0 Parity bit Low Order Byte [L] BIT: 7 6 5 4 3 2 1 0 Under Cap. Over Cap. Not used Not used Always = 1 Always = 1 Always = 0 Parity 3700LP Bench Scale Series User’s Manual...
  • Page 11 Bad command Model 8213 Protocol Displayed as "8213" Command Possible Scale Response Units Notes <STX>XXX.XX<CR> Pounds <STX>XXX.XX<CR> Kilograms <STX>XXX.XX<CR> Ounces <STX>0XXXXX<CR> Grams <STX>?[STATUS]<CR> <STX>XXXX.XX<CR> Pounds <STX>XXXX.XX<CR> Kilograms <STX>XXXX.XX<CR> Ounces <STX>0XXXXXX<CR> Grams <STX>?[STATUS]<CR> <STX>?[STATUS]<CR> Zeros scale 3700LP Bench Scale Series User’s Manual...
  • Page 12 Model 3835 Protocol Displayed as "3835" Command Possible Scale Response Units Notes W<CR> <LF>p0XX.XXLB<CR>[HL]<ETX> Pounds <LF>p0XX.XXKG<CR>[HL]<ETX> Kilograms <LF>p0XX.XXOZ<CR>[HL]<ETX> Ounces <LF>p00XXXXG_<CR>[HL]<ETX> Grams Z<CR> No response Zeros scale S<CR> <LF>[HL]<CR> Scale Status All other <LF>?<CR> Bad command 3700LP Bench Scale Series User’s Manual...

  • Page 13: Diagnostics Menu

    5. Use the UNITS and ZERO keys and continue through the menu as necessary for your diagnostic issue. The list on the next page lists each item and what they mean. Figure 4 Diagnostics menu structure 3700LP Bench Scale Series User’s Manual...
  • Page 14 Autoprint setting - OFF, AUTO1, AUTO2 E-INP External input setting - ZERO or PRINT SLEEP Sleep setting - NONE, 5, 30, 60 minutes P-OFF Power off setting - ON, OFF SEAL Seal setting - SEALED, UNSEALED 3700LP Bench Scale Series User’s Manual...

  • Page 15: Installing The Display Mounting Bracket

    For the 10-50 lb, 10 x 10 inch bases, use the bracket shown in Figure 6. Attach the two parts with supplied screws, lockwashers and nuts before continuing to instructions on next page. Figure 6 Mounting bracket (10-50 lb, 10 x 10 inch bases) 3700LP Bench Scale Series User’s Manual...
  • Page 16 9. Return the scale to normal operating position. 10. Position the display housing on the bracket so the two magnetic strips connect. See Figure7. Figure 7 Mounting the display 11. Reconnect power to the scale and check for proper operation. 3700LP Bench Scale Series User’s Manual...
  • Page 17 3700LP Bench Scale Series User’s Manual...
  • Page 18 3700LP Bench Scale Series User’s Manual...
  • Page 19 3700LP Bench Scale Series User’s Manual...
  • Page 20 Pointe Claire, QC H9R 4R7 Canada ® Weigh Bar is a registered trademark Telephone: 514-695-0380 of Avery Weigh-Tronix and may be registered in certain jurisdictions. Toll free: 800-561-9461 All brands and product names used Facsimile: 514-695-6820 within this document are trademarks www.weigh-tronix.ca...

This manual is also suitable for:

3730lp3732lp3734lp
