REQUIRED TOOLS
Socket Wrench
3/8" Socket
19mm Socket
15mm Socket
T55 Torx
1)
REMOVE FRONT PLASTIC STABILIZER BAR COVER
AND BUMPER BOLTS
Begin by removing your factory stabilizer bar cover
using a 3/8" socket/wrench to remove the small
screws on either side.
The stabilizer bar cover will not be reused.

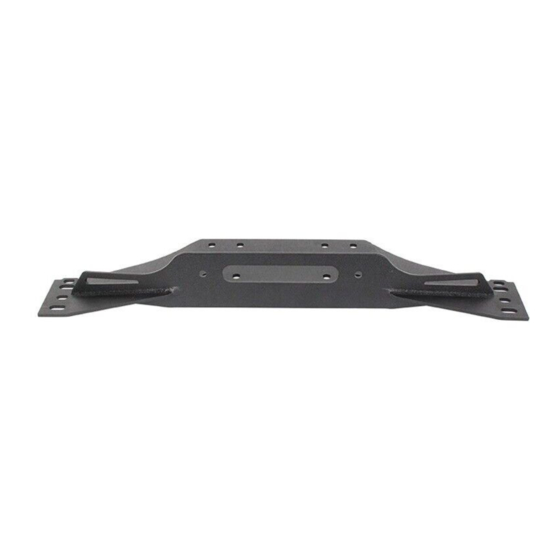

FB21052 shown with winch* and fairlead*
on our Fishbone front bumper FB22049.
*Not included
KIT CONTAINS
½" Hex Bolt
½" Lock Washer
½" Flat Washer
M10x35mm Hex Bolt (for fairlead)
M10 Lock Nut (for fairlead)
M10x50mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
Spacer
NOTE
Jeep® TJ Wrangler 1997-2006
For OEM bumpers, using a T55 Torx, remove the four
(4) top front bumper hardware and tow hooks (if
FB21052
TJ Winch Plate
QTY
4
4
4
2
2
2
2
2
2
2105200
