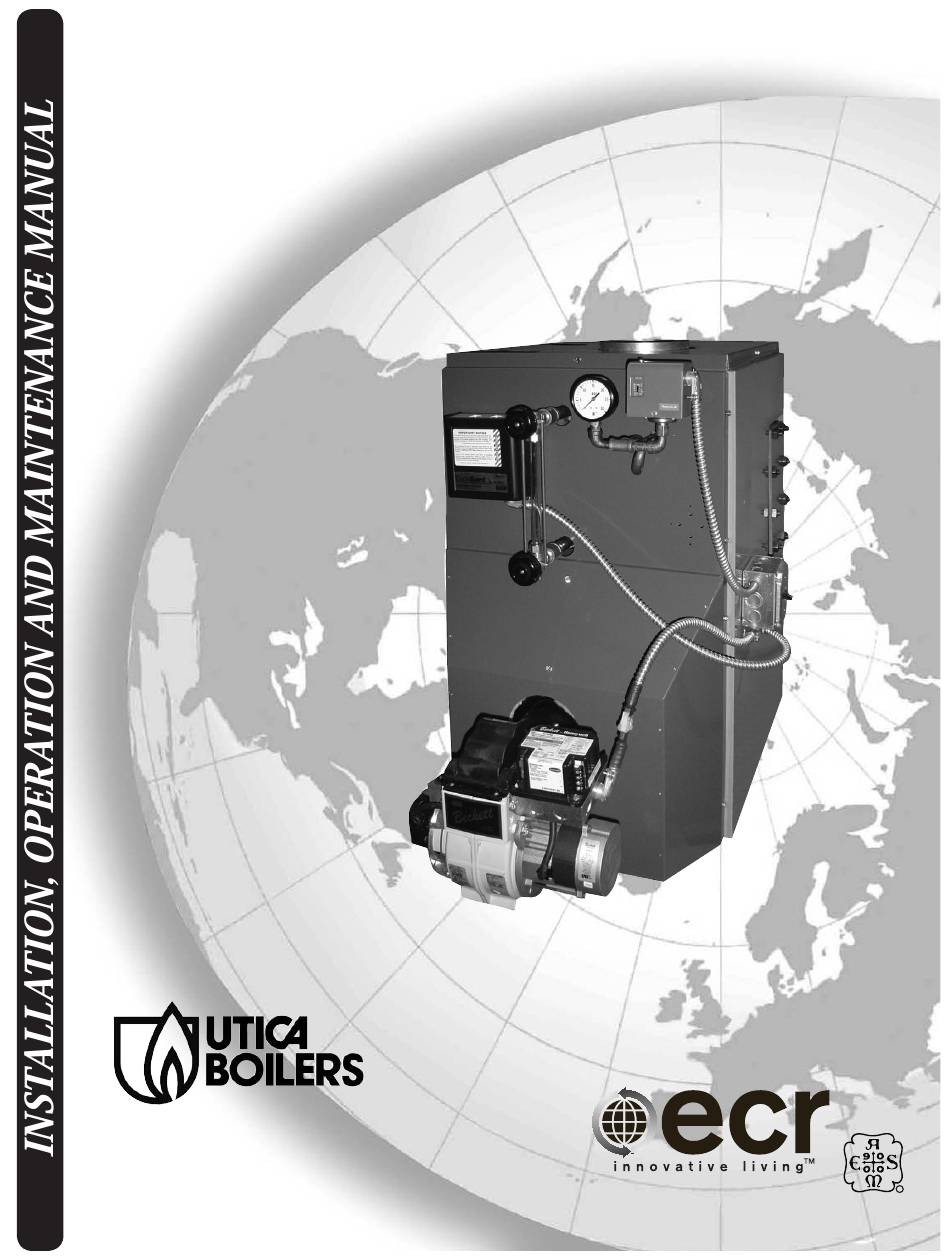

- Page 1 STARFIRE 3 STEAM OIL-FIRED CAST IRON BOILER MODEL NUMBERS: SFE0365, SFE3100, SFE4100, SFE4125, SFE4150, SFE5175, SFE5200, SFE6225, SFE7275 Utica BOiLERS P.O. Box 4729 Utica, NY 13504-4729 An ISO 9001-2000 Certified Company www.uticaboilers.com P/N 240007512, Rev. D [4/09]...
-
Page 2: Table Of Contents
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS TABLE OF CONTENTS IMPORTANT: Read the following instruc- Ratings, Data, And Dimensions ......3 tions cOMPLEtELY before installing!! Installation Procedure ........4 Ventilation And Combustion Air ......5 Connecting Supply And Return Piping ..... 7 WARNING Venting System Inspection &... -
Page 3: Ratings, Data, And Dimensions
RATINGS, DATA, AND DIMENSIONS D.O.E. I=B=R Oil Burner Min. Natural Draft Pump Nozzle (3)(4) I=B=R Net Ratings Input Chimney Size Boiler Model Heating A.F.U.E. Pressure Furnished Steam Sq. Ft. Number Capacity Rating Square G.P.H. Round 140PSIG Steam 365S 0.65 8x8x15 .60 80B 3100S 1.00... -
Page 4: Installation Procedure
INSTALLATION PROCEDURE WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. replacement of another appliance such as a water heater. All installations must conform to the requirements of the authority having jurisdiction. Such applicable require- The boiler shall be installed such that the oil ignition system ments take precedence over the general instructions of this components are protected from water (dripping, spraying,... -
Page 5: Ventilation And Combustion Air
VENTILATION AND COMBUSTION AIR WARNING Air openings to combustion area must not be obstructed. By following the instructions below, adequate combustion air can be maintained. cOMBUStiON aiR REQUiREMENtS (Minimum Opening Requirement) Unconfined Area* Confined Area** Outside Inside Outside Combustion Air Combustion Air 1 Sq. - Page 6 VENTILATION AND COMBUSTION AIR shall be provided with two permanent openings, one Figure #6 commencing within 12 inches from the top and one commencing 12 inches from the bottom of the enclo- sure. The openings shall communicate directly, or by ducts, with the outdoors or spaces (crawl or attic) that freely communicate with the outdoors.
-
Page 7: Connecting Supply And Return Piping
CONNECTING SUPPLY AND RETURN PIPING Suggested piping for steam heating system can be Figure #8 for typical piping for domestic hot water seen in Figure #7. Actual piping may vary based on heater. system design and local conditions. Figures #9 and #10 for the suggested piping for a For further piping information refer to the I=B=R instal- modular steam boiler. -
Page 8: Venting System Inspection & Installation
VENTING SYSTEM INSPECTION & INSTALLATION mately ¼" per foot. Bolt or screw joints together to avoid WARNING sag. Boiler is to be vented by natural draft and shall not be connected into any portion of a me- If an oil fired water heater is vented into the same flue as chanical draft operating system under a posi- the boiler, provide a separate hole into the chimney when- tive pressure. -
Page 9: Electrical Wiring
OIL TANk AND PIPING more than 20' from the boiler, a two stage fuel unit should suction line. Shut-off valves should be installed in both the be installed in place of the single stage pump supplied as suction and return lines at the burner for convenience in standard equipment with the burner. - Page 10 STEAM WIRING W/BECkETT BURNER COMPONENT CODING Thermostat (Millivolt) TH-1 MR-PS Manual Reset Pressure Switch Circulator Thermostat (24 Volt) Control Terminal Energy Cut-Off TH-2 Thermostat (Line Voltage) Relay Coil Pilot Safety Coil TH-3 Transformer (120V/24V/40VA) Relay Contacts TR-1 Wire Connection Transformer (120V/24V/50VA) Relay Contacts TR-2 LWCO...
- Page 11 STEAM WIRING W/RIELLO BURNER WIRING CODE Line Voltage By Factory Low Voltage By Factory Line Voltage By Installer Low Voltage By Installer...
- Page 12 STEAM WIRING W/CARLIN BURNER WIRING CODE Line Voltage By Factory Low Voltage By Factory Line Voltage By Installer Low Voltage By Installer...
-
Page 13: Normal Sequence Of Operation
NORMAL SEqUENCE OF OPERATION IMPORTANT TO THE INSTALLER - Before putting the On a call for heat, the thermostat will actuate, completing boiler in operation, test the mechanical low water cut-off the circuit to the boiler. In turn, the ignition systems device for proper operation. - Page 14 OPERATING INSTRUCTIONS Pressure Control - Remove cover and note pressure out of position during transportation. setting. With boiler operating, decrease the setting. Lubricate burner motor if necessary. When the setting is lower than boiler pressure, the Set room thermostat to call for heat, or jump thermo- control will open and turn off the boiler.
-
Page 15: Maintenance Procedures
OPERATING INSTRUCTIONS CAUTION Refill boiler to its normal water line. Use caution when vacuuming in the chamber C. Primary Control and Flame Sensor - area. Damage to chamber could result. To Check: - simulate by shutting off oil supply with Flame Failure It is recommended to replace the nozzle at the start of each hand valve while burner is on. - Page 16 MAINTENANCE PROCEDURES installed on the rear section of the boiler being careful not to raise it above the opening of the hole. Skim until there are no WARNING impurities. Repeat the process if necessary. Discharge will be boiling hot water and steam. Water may be checked to make sure it is free from oil by drawing off a sample at the skimming hole.
-
Page 17: Service Checklist
MAINTENANCE PROCEDURES Periodic inspection and tightening of the tankless heater/cover system. They are experienced in making the inspections plate bolts will reduce the risk of leaks. See parts 3 and 5 outlined above and, in the event repairs or corrections are under "Coil and Cover Plate Replacement Parts."... -
Page 18: Replacement Parts
REPLACEMENT PARTS COIL AND COvER PLATE itEM PART NO. QTy. DEScRiPtiON ⁄ Bolt - -14 x 1½ HW-012.02 Square Head 252-2-2.00 Gasket - B Tankless Cover Plate - B Tank- 202-2-1.00 less Coil ⁄ - 14 Square HW-013.01 Nut 252-3-1.02 Tankless Coil L - 24 1635001 Well ¾... - Page 19 REPLACEMENT PARTS HaRDwaRE itEM PART NO. DEScRiPtiON Relief Valve #15 ¾ 1570001 Pipe Fit Coupling ¾" PF-019.02 Pipe Fit Npl ¾ Close PF-005.01 ⁄ -18 x 2 ⅜ HW06701 Stud Support - Jacket Brkt 2252501 ⁄ " x 18 x 1 ⅜" HW07001 Stud ⁄...
- Page 20 REPLACEMENT PARTS HEAT EXCHANGER PART NO. itEM PART NO. itEM DEScRiPtiON DEScRiPtiON #22 Push Nipple - 3 Sec. 100-5-10.01 Rear Section #22 Push Nipple - 4 Sec. #60 Push Nipple - 3 Sec. #22 Push Nipple - 5 Sec. #60 Push Nipple - 4 Sec. 100-1-5.01 #22 Push Nipple - 6 Sec.
- Page 21 REPLACEMENT PARTS SWING DOOR AND MOUNTING DOOR COMPONENTS itEM PART NO. DEScRiPtiON Mounting Door Insulation & 2552901 Plug Door Plug Replacement 2551901 Screw ¼ - 20 x ½ Self-Tap- HW-005.01 ping Observation Door 10011701 Obs. Door Gasket 25511101 ¼ x 1¾ Drive Lock Pin HW06801 10011501 Swing Door...
- Page 22 REPLACEMENT PARTS BURNER cOMPONENtS ITEM PART NO. DESCRIPTION BRNR,BECK,AFG/UT2401,NOZ,.85,80B 240007286 BRNR,BECK,AFG/UT2402,NOZ,1.25,80B 240007288 BRNR,BECK,AFG/UT2403,NOZ,1.75,70B 240007289 BRNR,BECK,CF375/UT2601,NOZ,2.00,45B 240007290 BRNR,BECK,CF375/UT2602,NOZ,2.25,60B 240007291 BRNR,F5/40 SERIES,RIELLO,2 PCS 1050006 BRNR,F10/40 SER,RIELLO #3949071 BN07007 BRNR,OIL,EZ1,3100SE/STE,CARLIN BRNR,OIL,EZ1,4100SE/STE,CARLIN BRNR,OIL,EZ1,4125SE/STE,CARLIN BRNR,OIL,EZ1,4150SE/STE,CARLIN BRNR,OIL,EZ1,5200SE/STE,CARLIN BURNER OIL FLANGE GASKET #3616 BN08001 CAD CELL (FOR BOILERS W/ BECKETT BURNERS ONLY CD-001.01 CONTROL R7184B 1032 (7456U) (FOR BOILERS W/ BECKETT BURNERS ONLY) 1140004...
