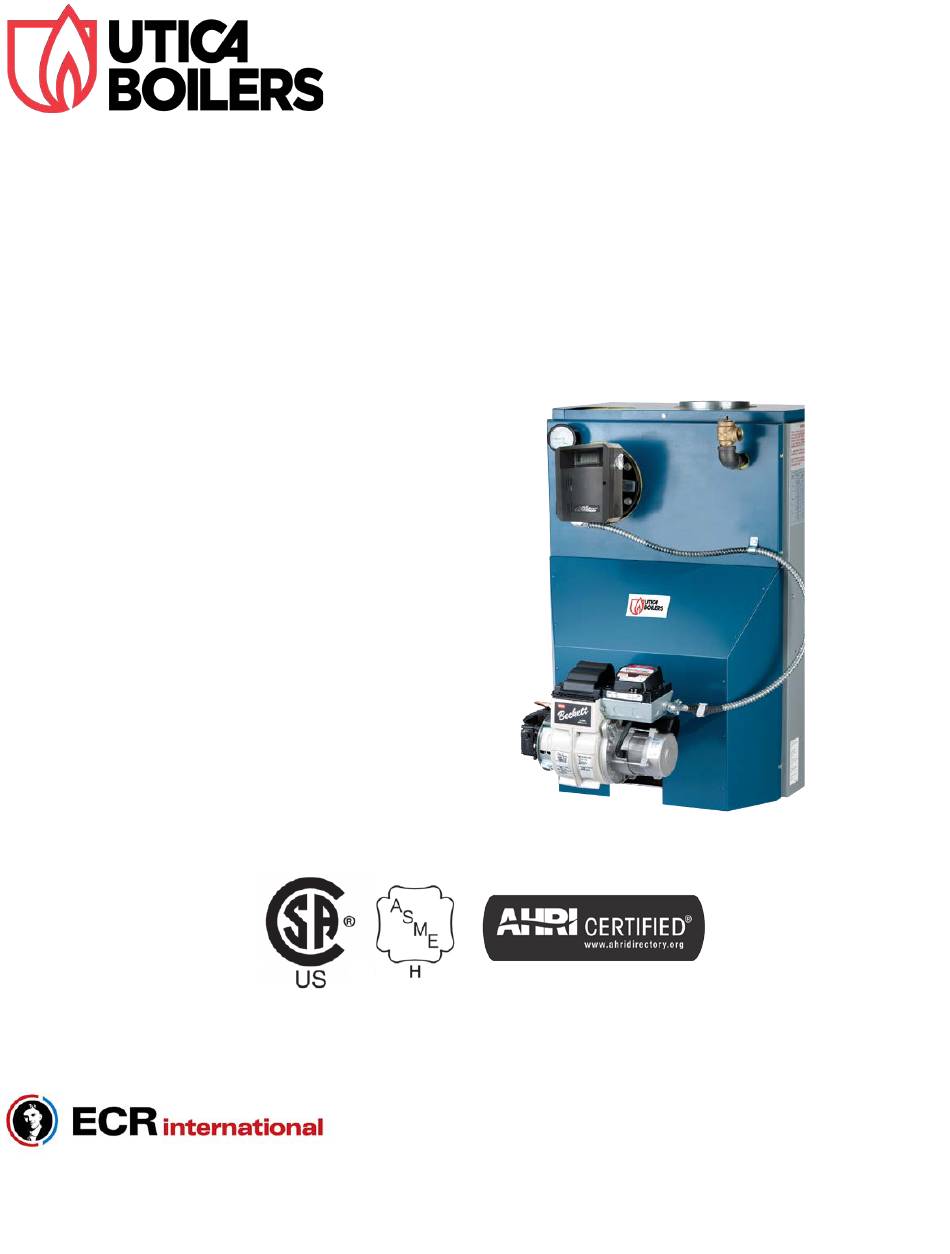

SFH SERIES 5
WATER
OIL FIRED CAST IRON BOILER
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
Models
SFH-3085W(T)
SFH-4100W(T)
SFH-4125W(T)
SFH-5160W(T)
SFH-6185W(T)
Tested For 75 psi
ASME
Working Pressure
Manufactured by:
ECR International Inc.
2201 Dwyer Avenue, Utica, NY 13501
Tel. 800 253 7900
www.ecrinternational.com
PN 240013073 REV. A [08/31/2020]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UTICA BOILERS SFH 5 Series
Summary of Contents for UTICA BOILERS SFH 5 Series
- Page 1 SFH SERIES 5 WATER OIL FIRED CAST IRON BOILER INSTALLATION, OPERATION & MAINTENANCE MANUAL Models SFH-3085W(T) SFH-4100W(T) SFH-4125W(T) SFH-5160W(T) SFH-6185W(T) Tested For 75 psi ASME Working Pressure Manufactured by: ECR International Inc. 2201 Dwyer Avenue, Utica, NY 13501 Tel. 800 253 7900 www.ecrinternational.com PN 240013073 REV.
-
Page 2: Table Of Contents
1 - TABLE OF CONTENTS CONTENTS 2 - DIMENSIONS ����������������������������������������������������������������������������������������������������������� 3 3 - SAFETY INFORMATION ���������������������������������������������������������������������������������������������� 4 4 - BEFORE YOU START �������������������������������������������������������������������������������������������������� 6 5 - LOCATING THE BOILER ��������������������������������������������������������������������������������������������� 7 6 - VENTILATION & COMBUSTION AIR ���������������������������������������������������������������������������� 8 7 - CONNECTING SUPPLY AND RETURN PIPING���������������������������������������������������������������11 8 - SYSTEM PIPING �����������������������������������������������������������������������������������������������������... -
Page 3: Dimensions
2 - DIMENSIONS Figure #1 - Dimensional Data 2” NPT Supply Tapping 35” ” NPT 4” Table - 1 FRONT OF DEPTH DIAMETER BOILER CASING SECTION TO CENTER LINE FLUSH FLUE JACKET OUTLET FLUE OUTLET 17 ⅞" 11 ¼" 6" 21 ½"... -
Page 4: Safety Information
3 - SAFETY INFORMATION 3.1 - General WARNING Boiler installation shall be completed by qualified agency. Before filling boiler verify heat exchanger is not WARNING hot� Adding water to hot water could result in heat exchanger failure� Failure to follow these Fire, explosion, asphyxiation and electrical shock instructions could result in death or serious injury�... - Page 5 3 - SAFETY INFORMATION Water 1st Degree Burn 2nd and 3rd Degree Burn FOR YOUR SAFETY READ BEFORE OPERATING Temperature Exposure Time For Exposure Time For An DANGER Setting An Adult Adult 120° F 1 minute 5 minutes 130° F 5 seconds 30 seconds 140°...
-
Page 6: Before You Start
4 - BEFORE YOU START 4.2 Prior To Installing The Boiler WARNING • Verify you have selected right size boiler with proper Verify oil burner nozzle is proper size. Over-firing will capacity� AHRI rating of boiler selected should be greater result in early failure of boiler sections, and result in than or equal to calculated peak heating load (heat loss) a potentially dangerous situation�... -
Page 7: Locating The Boiler
5 - LOCATING THE BOILER WARNING Fire hazard� Do not install on carpeting, wood, or vinyl flooring. Failure to follow these instructions could result in death or serious injury� NOTICE Clearance for access should exceed fire protection clearance� Boiler is listed for installation on non-combustible flooring only. -
Page 8: Ventilation & Combustion Air
6 - VENTILATION & COMBUSTION AIR WARNING Asphyxiation, fire hazard. Do not obstruct air openings to combustion area� Follow instructions below, to maintain adequate combustion air� Table 2 - COMBUSTION AIR REQUIREMENTS (MINIMUM OPENING IN SQUARE INCHES) *UNCONFINED AREA **CONFINED AREA OUTSIDE INSIDE OUTSIDE... - Page 9 6 - VENTILATION & COMBUSTION AIR B� When communicating with the outdoors by means When air for combustion and room ventilation is from of vertical ducts, each opening shall have a inside buildings, confined space shall be provided with minimum free area 1 square inch per 4,000 Btu per two permanent openings, one starting 12 inches from hour of total input rating of all appliances in the the top and one 12 inches from the bottom of the...
- Page 10 6 - VENTILATION & COMBUSTION AIR Figure #3 Figure #4 Figure #5 PN 240013073, Rev. A [08/31/2020]...
-
Page 11: Connecting Supply And Return Piping
7 - CONNECTING SUPPLY AND RETURN PIPING Connect supply and return piping� See Figure #6� When Hot water boilers installed above radiation level must boiler is used in connection with refrigerated systems: be provided with low water device either as part of boiler or at time of boiler installation�... - Page 12 7 - CONNECTING SUPPLY AND RETURN PIPING A� This method is used to protect boilers from Note: When using bypass piping, adjust valves A and B condensate forming due to low temperature return until desired system temperature is obtained� water� Generally noticed in large converted gravity systems or other large water volume systems�...
- Page 13 7 - CONNECTING SUPPLY AND RETURN PIPING Figure #8 - Mixing Valve Piping Figure #9 - Primary Secondary Piping With Bypass PN 240013073, Rev. A [08/31/2020]...
- Page 14 7 - CONNECTING SUPPLY AND RETURN PIPING Figure #10 - Indirect Water Heater Piping with Circulator DRAIN VALVE Figure #11 - Indirect Water Heater Piping with Zone Valve DRAIN VALVE PN 240013073, Rev. A [08/31/2020]...
- Page 15 7 - CONNECTING SUPPLY AND RETURN PIPING Figure #12 - Recommended Piping For Boilers Equipped With T3 Or T4 Tankless Heater DANGER Water temperatures exceeding 125°F will cause severe burns instantly or death by scalding� Typical indirect water heater installation using circulators is shown in Figure #10�...
- Page 16 7 - CONNECTING SUPPLY AND RETURN PIPING OPTIONS UTILIZING 3/4” TAPPING Figure #13 - Optional Location For Air Vent Figure #14 - Optional Location For Expansion Tank (Non-Diaphragm Type) PN 240013073, Rev. A [08/31/2020]...
-
Page 17: System Piping
8 - SYSTEM PIPING Figure #15 - Discharge Piping From Safety WARNING Relief Valve Burn and scald hazard� Safety relief valve could discharge steam or hot water during operation� Install discharge piping per these instructions� Install safety relief valve using pipe fittings provided with boiler�... -
Page 18: Venting System Inspection & Installation
9 - VENTING SYSTEM INSPECTION & INSTALLATION Chimney construction shall conform to the requirements Figure #16 of authority having jurisdiction or in absence of such requirements NFPA 211, Standared for Chimneys, Fireplaces, Vents and Solid-Fuel Burning Appliances. Venting system installation shall conform to the requirements of the authority having jurisdiction or in the absence of such requirements, to NFPA 31 - Standard for the Installation of Oil Burning Equipment. -
Page 19: Oil Tank And Piping
10 - OIL TANK AND PIPING Installation of oil tank and piping shall conform to • Follow instructions, attached to fuel pump, for fuel requirements of authority having jurisdiction or in pump and by-pass connections� absence of such requirements to NFPA 31 - Standard •... -
Page 20: Field Assembly
11 - FIELD ASSEMBLY Install oil burner� Follow burner manufacturer specific instructions for installation. • Check oil nozzle in burner for size, angle and type, inspect electrode settings, check head setting, check air band and air shutter settings� See “Oil Burner, Nozzle, &... -
Page 21: Electrical Wiring
12 - ELECTRICAL WIRING WARNING Figure #19 - Hydrostat 3250 Hi-Limit/Low Water Cutoff Control Electrical shock hazard� Turn OFF electrical power supply INDICATOR at service panel before making electrical connections� LIGHTS Failure to do so could result in death or serious injury� DIGITAL DISPLAY THERMAL/ LWCO... -
Page 22: Electrical Wiring Diagrams
13 - ELECTRICAL WIRING Figure #20 - Wiring Diagram Beckett AFG and Riello 40F10 with or without Tankless Heater Note: Limit control program based on use with or without tankless heater� Refer to Hydrostat 3250 provided with boiler for additional information� PN 240013073, Rev. - Page 23 13 - ELECTRICAL WIRING Figure #21 - Wiring Diagram Carlin EZ-1/2 and Riello 40F5 with or without Tankless Heater 70200 Note: Limit control program based on use with or without tankless heater� Refer to Hydrostat 3250 provided with boiler for additional information� PN 240013073, Rev.
-
Page 24: Operating Instructions
14 - OPERATING INSTRUCTIONS 14.1 Operating Instructions 14.4 Instructions For Proper Operation Of Boiler Burner Unit Inspect venting system at start of each heating season� Check vent pipe from boiler to chimney for signs A ¼” diameter slot is provided in inspection cover plate of deterioration by rust or sagging joints�... - Page 25 14 - OPERATING INSTRUCTIONS B. Ignition failure - with burner off, close oil supply 14.9 Start of Heating System valve and run through start-up procedure, The safety • Using flue brush, brush soot and scale into combustion switch should lock out as in flame failure. space where it can be removed through swing door C.
-
Page 26: Burner Settings
15 - BURNER SETTINGS TABLE 3 -BECKETT AFG SETTINGS PUMP BOILER HEAD HEAD STATIC NOZZLE PRESSURE TYPE SETTING PLATE BAND SHUTTER [PSI] SFH-3085W(T) 3⅜ 0�75-60°B SFH-4100W(T) 2¾ 0�85-60°B SFH-4125W(T) 2¾ 1�10-60°B SFH-5160W(T) 2¾ 1�35-70°B SFH-6185W(T) 1�65-70°B TABLE 4 - RIELLO 40F5/40F10 SETTINGS RIELLO BURNER PUMP... -
Page 27: Boiler Ratings & Capacities
16 - BOILER RATINGS & CAPACITIES Table 6 - BOILER RATINGS OIL BURNER HEATING CHIMNEY BOILER RATINGS A.F.U.E. INPUT CAPACITY MODEL WATER NUMBER *Mbh *Mbh *Mbh SFH-3085W SFH-3085WT 0�85 86�0% 8X8X15 SFH-4100W SFH-4100WT 1�00 87�0% 8X8X15 SFH-4125W SFH-4125WT 1�25 86�0% 8X8X15 SFH-5160W SFH-5160WT... - Page 28 I M P O R T A N T In accordance with Section 325 (f) (3) of the Energy Policy and Conservation Act, this boiler is equipped with a feature that saves energy by reducing the boiler water temperature as the heating load decreases� This feature is equipped with an override which is provided primarily to permit the use of an external energy management system that serves the same function�...
Need help?
Do you have a question about the SFH 5 Series and is the answer not in the manual?
Questions and answers

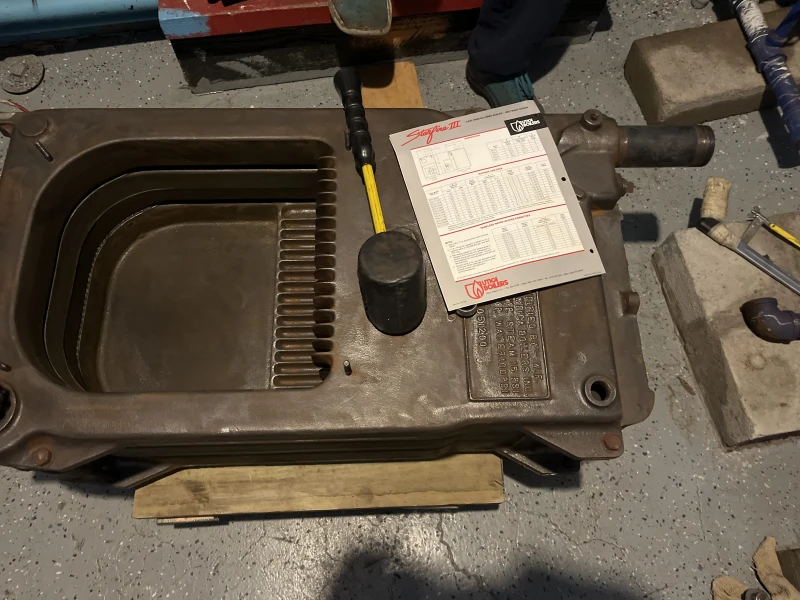

What is the torque specs for the 3/4” bolts that hold the plates together?
