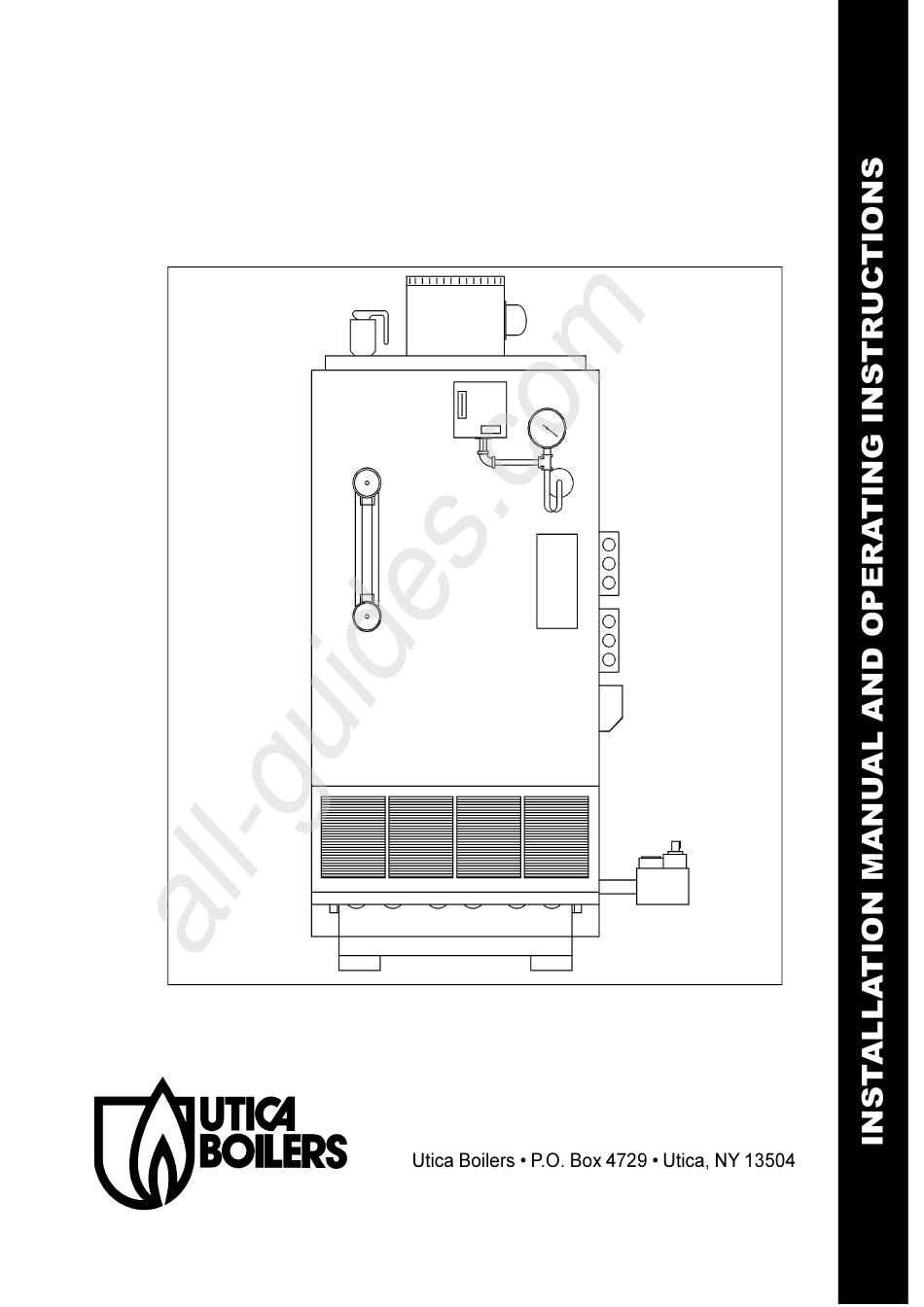

- Page 1 All manuals and user guides at all-guides.com PEG-C GAS FIRED BOILERS FOR STEAM HEATING...
- Page 2 All manuals and user guides at all-guides.com TABLE OF CONTENTS C.S.A. Certified Tested for 100 lbs. for Natural gas ASME Working or Propane Pressure...
- Page 3 ALL INSTALLATIONS OF BOILERS AND VENTING SHOULD BE DONE ONLY BY A QUALIFIED EXPERT AND IN ACCORDANCE WITH THE APPROPRIATE UTICA BOILERS MANUAL. INSTALLING OR VENTING A BOILER OR ANY OTHER GAS APPLIANCE WITH IMPROPER METHODS OR MATERIALS MAY RESULT IN SERIOUS...
-
Page 4: Installation Procedure
All manuals and user guides at all-guides.com INSTALLATION PROCEDURE WARNING: PAGE 2... -
Page 5: Ventilation & Combustion Air
All manuals and user guides at all-guides.com VENTILATION & COMBUSTION AIR WARNING: AIR OPENINGS TO COMBUSTION AREA MUST NOT BE OBSTRUCTED. BY FOLLOWING THE INSTRUCTIONS BELOW, ADEQUATE COMBUSTION AIR CAN BE MAINTAINED FIGURE 1 PAGE 3... - Page 6 All manuals and user guides at all-guides.com FIGURE 2 FIGURE 3 FIGURE 4 PAGE 4...
-
Page 7: Connecting Supply And Return Piping
All manuals and user guides at all-guides.com CONNECTING SUPPLY AND RETURN PIPING SUGGESTED PIPING FOR A SINGLE STEAM BOILER HEATING SYSTEM FIGURE 5 PAGE 5... - Page 8 All manuals and user guides at all-guides.com SUGGESTED PIPING FOR A MODULAR STEAM BOILERS PUMPED RETURNS FIGURE 6a GRAVITY RETURNS FIGURE 6b PAGE 6...
-
Page 9: Vent Installation
All manuals and user guides at all-guides.com VENT INSTALLATION WARNING: WARNING: INSTALLATIONS OF BOILERS AND VENTING SHOULD BE DONE ONLY BY A QUALIFIED EXPERT AND IN ACCORDANCE WITH THE APPROPRIATE UTICA BOILERS MANUAL. INSTALLING OR VENTING A BOILER OR ANY OTHER GAS APPLIANCE WITH IMPROPER METHODS... -
Page 10: Vent System Modification
All manuals and user guides at all-guides.com VENT SYSTEM MODIFICATION PAGE 8... -
Page 11: Vent Damper Installation And Instructions
All manuals and user guides at all-guides.com VENT DAMPER INSTALLATION AND INSTRUCTIONS INSTALLATION INSTRUCTIONS FIGURE 8 FIGURE 9 PAGE 9... -
Page 12: Connecting Gas Service
All manuals and user guides at all-guides.com CONNECTING GAS SERVICE WARNING: FIGURE 10 ELECTRICAL WIRING SEE ADDENDUM "A" FOR WIRING DIAGRAMS AND COMPONENT CODING WARNING: MUST BE PAGE 10... -
Page 13: Thermostat Installation
All manuals and user guides at all-guides.com THERMOSTAT INSTALLATION NEVER LIGHTING INSTRUCTIONS WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EX- ACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. Before any procedures are attempted on this appliance, it is necessary to determine if the ignition system is intermittent or continuous pilot system. - Page 14 All manuals and user guides at all-guides.com NEVER USE TOOLS. OPERATING INSTRUCTIONS FOR INTERMITTENT PILOT SYSTEMS STOP! INTERMITTENT PILOT GAS VALVE STOP FIGURE 11 LIGHTING PROCEDURE FOR BOILER WITH CONTINUOUS PILOT. FOR YOUR SAFETY READ BEFORE LIGHTING PAGE 12...
- Page 15 All manuals and user guides at all-guides.com CONTINUOUS PILOT GAS VALVE LIGHTING INSTRUCTIONS FOR CONTINUOUS PILOT SYSTEM FIGURE 12 stop! TO TURN OFF GAS TO APPLIANCE Do not force. PAGE 13...
-
Page 16: Normal Sequence Of Operation
All manuals and user guides at all-guides.com NORMAL SEQUENCE OF OPERATION FIGURE 13 PAGE 14... -
Page 17: Connecting Supply And Return Piping, Water Chilled Medium
All manuals and user guides at all-guides.com CONNECTING SUPPLY AND RETURN PIPING, WATER CHILLED MEDIUM FIGURE 14 PAGE 15... -
Page 18: General Instructions
All manuals and user guides at all-guides.com GENERAL INSTRUCTIONS WARNING: WARNING: DISCHARGE WILL BE BOILING HOT WATER AND STEAM. WARNING: D I S C H A R G E FIGURE 15 WILL BE BOILING HOT WATER. PAGE 16... - Page 19 All manuals and user guides at all-guides.com TO CLEAN THE BOILER FLUEWAYS: CHECK SAFETY CONTROL CIRCUIT CAUTION: WARNING: WATER WILL BE BOILING HOT. PAGE 17...
- Page 20 All manuals and user guides at all-guides.com BOILERS CAN BE CLEANED CAUTION: SKIMMING OFF IMPURITIES BLOWING DOWN BOILER WARNING: WATER WILL BE BOILING HOT. USING CLEANING COMPOUND PAGE 18...
- Page 21 All manuals and user guides at all-guides.com CHECKING AND ADJUSTING THE GAS IGNITION COMPONENTS FIGURE 17 FIGURE 16 PAGE 19...
- Page 22 All manuals and user guides at all-guides.com Optional parts FIGURE 18 PEG-C REPLACEMENT PARTS - PILOT 24 VOLT SPARK ITEM # PART # DESCRIPTION OTY. ITEM # PART # DESCRIPTION OTY. PB01301 PILOT-Q350A 24 VOLT PB-001.02 PILOT-Q345A SPARK HW-024.01 SCREW #10-32X3/16 HW-024.01 SCREW #10-32X3/16 MS-003.05...
- Page 23 32411302 BRN ACCESS DOOR PEG112C 1 352-1-1.04 GAS ORIFICE #56-LP 32411303 BRN ACCESS DOOR PEG150C PEG112C - (6), PEG150 - (8), PEG187 - (10), 32411304 BRN ACCESS DOOR PEG187C PEG 225 -(12), PEG262 - (14), PEG300 - (16) 32411305 BRN ACCESS DOOR PEG225C...
- Page 24 31422806 FRONT PANEL PEG262C 344-2-1.07 DRAFT HOOD PEG300C 31422807 FRONT PANEL PEG300C 31423302 REAR PANEL PEG112C 31421002 MANIFOLD COVER PEG112C 1 31423303 REAR PANEL PEG150C 31421003 MANIFOLD COVER PEG150C 31423304 REAR PANEL PEG187C 31421004 MANIFOLD COVER PEG187C 31423305 REAR PANEL PEG225C...
- Page 25 1 100-2-15.01 E-Left Hand Section 13 HW-003.02 NUT-1/4-20 HEX SLT 2 100-2-14.01 E-Center Section 14 HW-008.01 WASH 5/16 FLAT STL ZP PEG112C - (2), PEG150 - (3), PEG187 - (4), PEG 225 -(5), PEG262 - (6), PEG300 - (7) 3 100-2-13.02...
- Page 26 All manuals and user guides at all-guides.com PEG-C REPLACEMENT PARTS FRONT PANEL CONTROLS ITEM PART ITEM PART NUMBER DESCRIPTION OTY. NUMBER DESCRIPTION OTY. 1 GA-004.00 GAUGE WTR LEVEL 9 753-1-3.00 90° SYPHON 2 PF-033.02 PIPE FIT NPL 1/2"X4" 10 PF-025.01 1/4"...
- Page 27 All manuals and user guides at all-guides.com PEG-C REPLACEMENT PARTS - ELECTRICAL ITEM PART NUMBER NUMBER DESCRIPTION OTY. EF-013.01 ELEC. J-BOX 4X4X1/2 37414401 WIRE PRES. SWITCH TO J-BOX 34" 37424501 HARNESS-ELWCO TO J-BOX 18" PB00702 IGN WIRE 30" CIDE MODELS ONLY 37413602 HARNESS IGN.
- Page 28 All manuals and user guides at all-guides.com 3741801 PAGE 26 REV: 15, July 2003...
