1
DRV8702-Q1-EVM
This user's guide is provided with the DRV8702-Q1 customer evaluation module (EVM) as a supplement
to the DRV8702-Q1 data sheet. This document details the hardware implementation of the EVM and how
to use DRV8702-Q1-EVM GUI application.
1.1
Board Overview
The DRV8702-Q1-EVM serves as an evaluation kit to demonstrate TI's DRV8702-Q1 H-bridge gate driver
in a 3.5-in × 2.2-in compact form factor. An MSP430G553 device is used to control the speed and
direction of the motor, while also monitoring the motor current from the DRV8702-Q1 device. The power
stage is created using the DRV8702-Q1 H-bridge gate driver and the CSD18540Q5B N-channel
NexFET™ power MOSFETs. The EVM is a high-performance, power-efficient, and cost-effective platform
that speeds development for a quicker time to market.
NexFET, MSP430 are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
SLVUAW2 – October 2016
Submit Documentation Feedback
DRV8702-Q1 EVM User's Guide

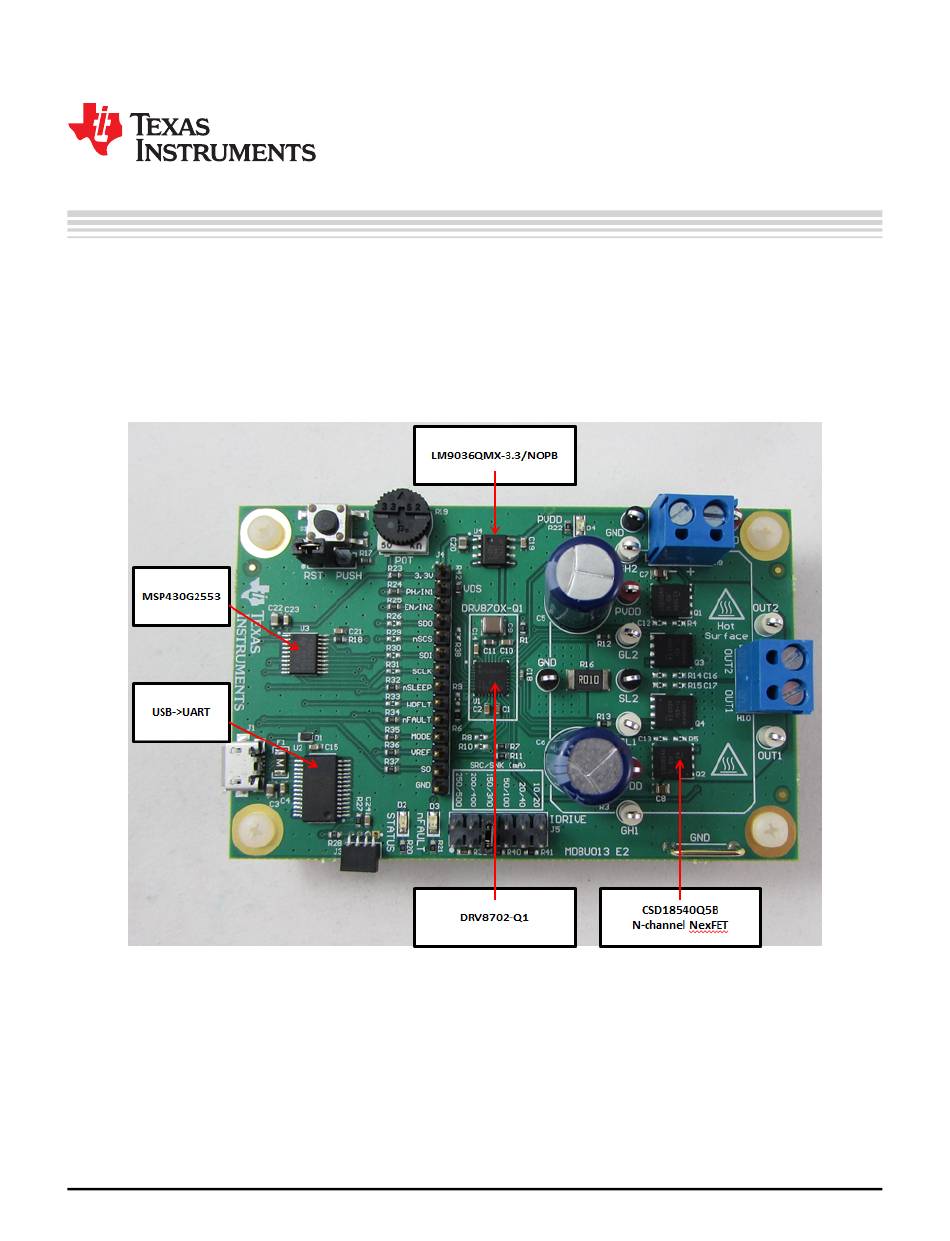

Figure 1. Board Components
Copyright © 2016, Texas Instruments Incorporated
User's Guide
SLVUAW2 – October 2016
DRV8702-Q1 EVM User's Guide
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DRV8702-Q1
Summary of Contents for Texas Instruments DRV8702-Q1
- Page 1 DRV8702-Q1 EVM User’s Guide DRV8702-Q1-EVM This user's guide is provided with the DRV8702-Q1 customer evaluation module (EVM) as a supplement to the DRV8702-Q1 data sheet. This document details the hardware implementation of the EVM and how to use DRV8702-Q1-EVM GUI application. Board Overview Figure 1.
- Page 2 UART MSP430G2553 DRV8702-Q1 Drive-Stage DC Motor Copyright © 2016, Texas Instruments Incorporated Figure 2. Block Diagram Jumper Settings and Test Points Figure 3. Board Jumpers and Test Points The jumper settings and test points are as follows: micro-USB (J1) — Use J1 to interface to a micro-USB cable used to download a program to the MSP430™...
-
Page 3: Gui Application
Step 2. Install the FTDI device driver. If the FTDI USB device driver is not already installed, the driver must be installed manually. The device driver setup can be found in the C:\Program Files (x86)\Texas Instruments\DRV8702- Q1\FTDI_USB_DRIVER folder after successfully completing installation in . Run the CDM21216_Setup.exe file in this folder and follow the installation instructions. -
Page 4: Hardware Setup
Section 2.2). Step 4. Click on the DRV8702-Q1-EVM shortcut either on the desktop or from the start menu to run the GUI application. The Serial Port page displays the list of COMs available for opening the connection as shown in Figure 5. - Page 5 • Serial Port 2.3.1 Introduction Page The Introduction page has the general information about the DRV8702-Q1 device. The sub-pages, Device and EVM, under Introduction page have the detailed description about the device and EVM respectively as shown in Figure SLVUAW2 – October 2016 DRV8702-Q1 EVM User’s Guide...
- Page 6 2.3.2 Motor Control Page This page has different widget controls to control the motor as shown in Figure Figure 8. DRV8702-Q1-EVM GUI (Motor Control Page) DRV8702-Q1 EVM User’s Guide SLVUAW2 – October 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
- Page 7 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein.
- Page 8 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 9 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
- Page 10 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2016, Texas Instruments Incorporated...
-
Page 11: Important Notice
IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
