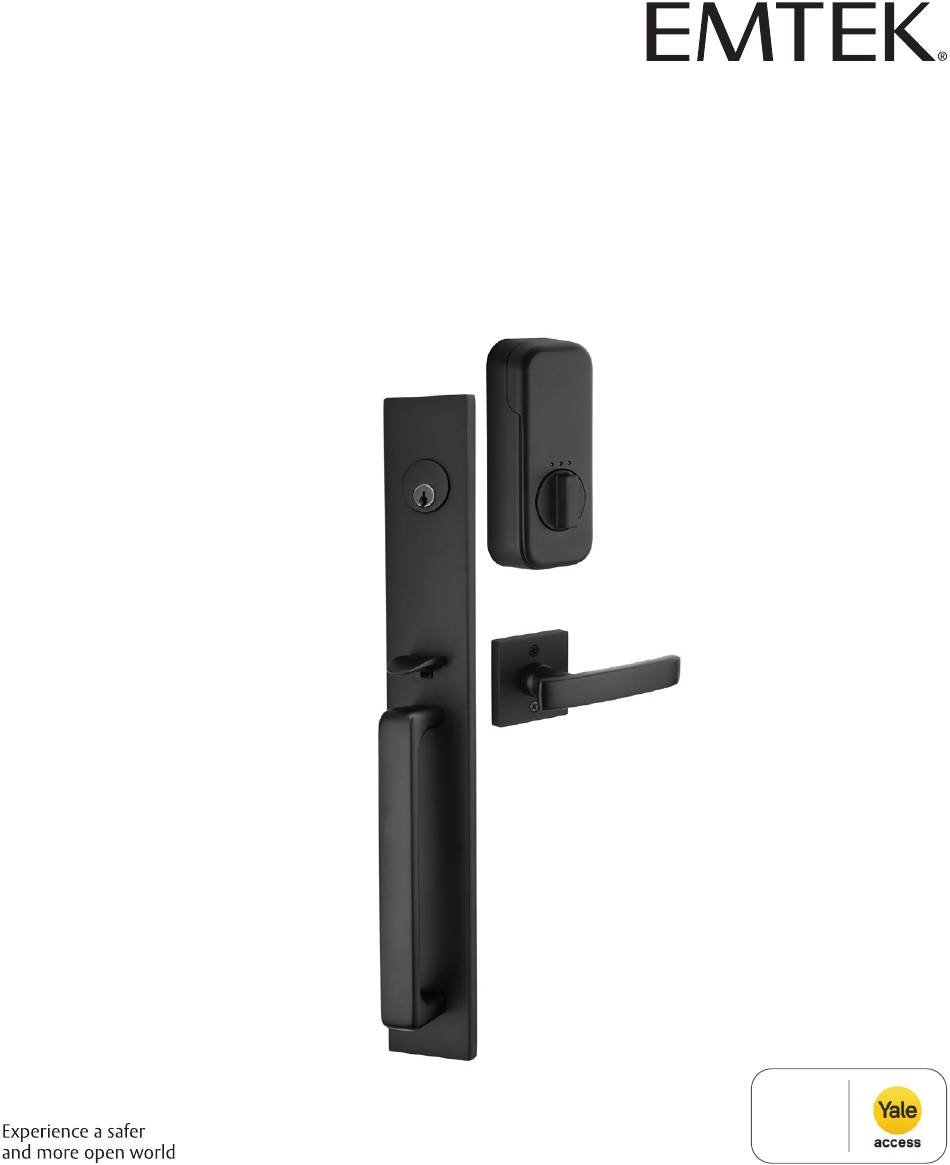

- Page 1 EMPowered™ Motorized SMART Lock Upgrade Works with Yale Access Monolithic/Full Length Entry Set WORKS WITH...
-
Page 2: What's In The Box
What’s in the box ITEM ITEM NO. DESCRIPTION QTY. DESCRIPTION QTY. EMPowered™ Unit Deadbolt Extension Collar Smart Module Deadbolt Cylinder Battery Cover Passage Latch AA Batteries Latch Face Plate M4-0.7 x 8mm Machine Screws Decorative Cap Interior Escutcheon #8-32 Flat Head Machine Screw #10-32 x 2-1/8”... - Page 3 23/8” Door Prep 2-3/8" 1" Dia. Edge Bores 2-3/4" 23/4” 21/4” 2 1 4 " 21/8” Dia. 51/2” 2-1/8" Dia. 5-1/2” Bores Bores 21/4” 2 1 4 " 1" Template Door Jamb Prep 11/8” 1-1/8" 2 3 4 " 23/4” 2 1 4 "...
- Page 4 Install Latches Note: Use only the supplied latch for proper functionality.
- Page 5 Install Grip and Interior Lever/Knob Must use screw guide...
-
Page 6: Remove Battery Cover
Remove Battery Cover Loosen screw on bottom to remove cover. - Page 7 Install Lock Cylinder & Interior Mounting Plate Extension Collar required for thin doors.
- Page 8 Check Interior Mounting Plate Alignment Center tail piece in mounting plate hole before tightening.
- Page 9 Install Interior Escutcheon Bolt must be in retracted (unlocked) position.
-
Page 10: Testing Operation
Testing Operation... -
Page 11: Install Batteries
Install Batteries Bolt must be in retracted (unlocked) position before installing batteries. - Page 12 Handing the Lock To hand the lock, hold the button until you hear one beep.
- Page 13 Register The Module To register the module, hold the button for two seconds.
- Page 14 Installing DoorSense Surface Mount Option DoorSense Mounting DoorSense Mounting Cover Screws Housing Tape 1-1/2” 1. Determine mounting location 1-1/2” 3-1/2” 3-1/2”...
- Page 15 Installing DoorSense Surface Mount Option 2. Attach mounting tape then screw into frame 3. Complete the DoorSense™ setup in the Yale Access app Lock Settings after completing step 12.
- Page 16 Installing DoorSense Flush Mount Option DoorSense DoorSense Housing 1. Remove magnet from housing and place DoorSense onto the magnet...
-
Page 17: Flush Mount Option
Installing DoorSense Flush Mount Option 2. Drill hole and Insert DoorSense 5/8” Diameter 1/2” Deep 3-1/2” 3. Complete the DoorSense™ setup in the Yale Access app Lock Settings after completing step 12. - Page 18 Download or go the Yale Access App to Complete Installation Set Up an Emtek Lock in the Yale Access App QR Codes Coming Soon SET UP A DEVICE CAN’T SCAN CAN’T FIND THE EMTEK RADIO MODULE MD-01 THE CODE SERIAL NUMBER Set Up a Yale/August Connect Wi-Fi Bridge QR Codes Coming Soon...
-
Page 19: Install Cover
Install Cover Secure cover by tightening screw on bottom. -
Page 20: Hardware Troubleshooting
Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Symptom Suggested Action Door is binding • Check that door and frame are properly aligned and door is free swinging. • Check hinges: They should not be loose or have excessive wear on knuckles. -
Page 21: Programming Troubleshooting
Programming Troubleshooting Symptom Suggested Action Lock does not respond - • Check batteries are installed and oriented correctly door is open and accessible. (polarity) in the battery case. • Check batteries are in good condition; replace batteries* if discharged. Lock does not respond •... -
Page 22: Resetting Lock To Factory Default
Resetting Lock to Factory Default When lock is reset to factory defaults, all programming features are reset to original default settings (see below). 1. Remove battery cover and batteries. 2. Remove the interior escutcheon to access the reset button. 3. The reset button (see image) is located beside the PCB cable connector. - Page 23 Compliance FCC INTERFERENCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
