chamberlaindiy.com.au
chamberlaindiy.co.nz
Garage Roller Door Opener
Installation and Operating Instructions
Owners Copy: Please keep these instructions for future reference
DO NOT PROCEED WITH THE INSTALLATION UNTIL READING THE
CR700MYQ
This manual contains IMPORTANT SAFETY information
INSTRUCTIONS THOROUGHLY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chamberlain HandyLift MyQ
Summary of Contents for Chamberlain HandyLift MyQ

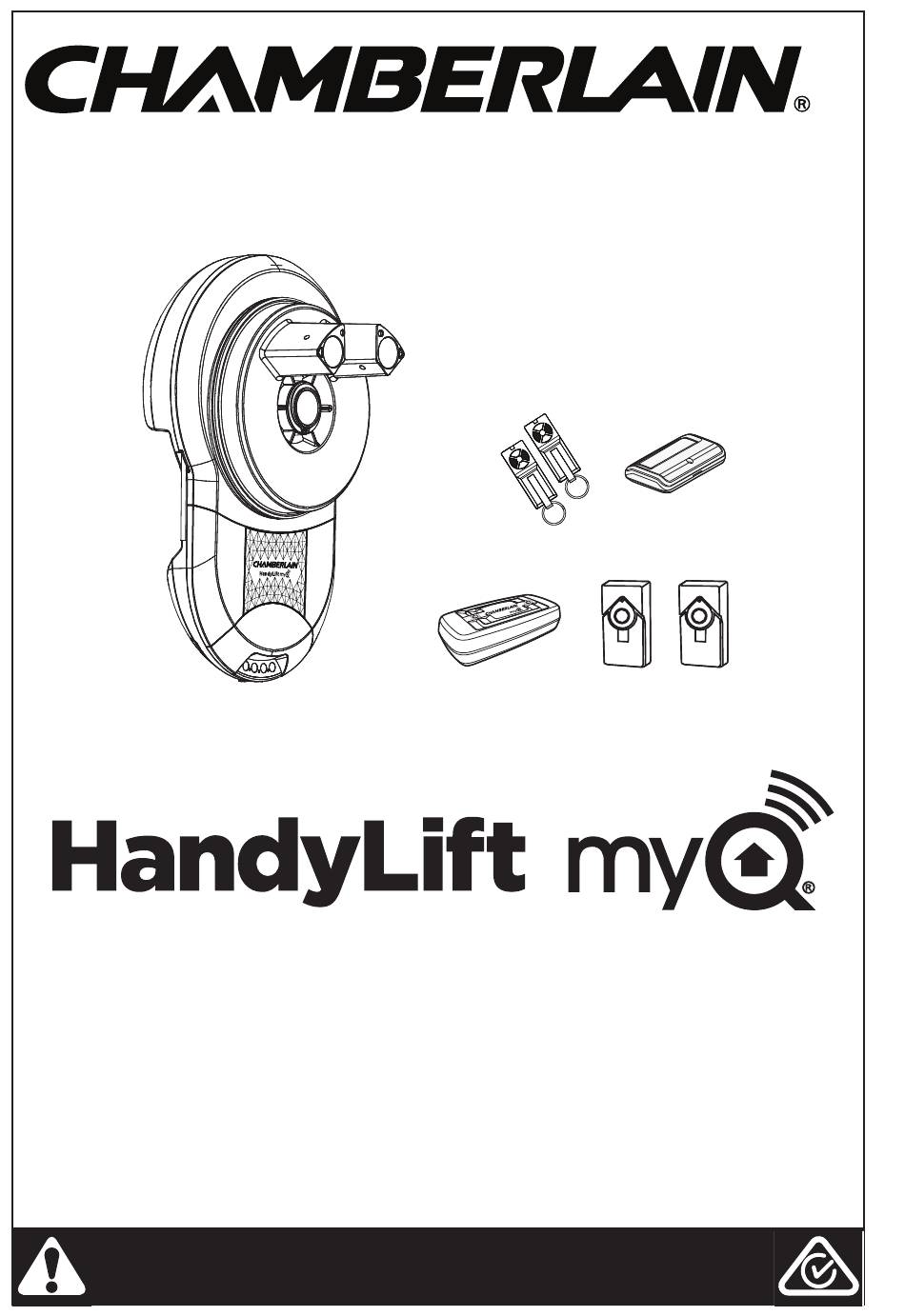

- Page 1 chamberlaindiy.com.au chamberlaindiy.co.nz CR700MYQ Garage Roller Door Opener Installation and Operating Instructions Owners Copy: Please keep these instructions for future reference This manual contains IMPORTANT SAFETY information DO NOT PROCEED WITH THE INSTALLATION UNTIL READING THE INSTRUCTIONS THOROUGHLY...
- Page 2 Warranty Registration Register your warranty at: chamberlaindiy.com.au/warranty chamberlaindiy.co.nz/warranty...
-
Page 3: Table Of Contents
START BY READING THESE IMPORTANT SAFETY INSTRUCTIONS WARNING • Failure to comply with the following instructions may result in serious injury or property damage. • Read and follow all instructions carefully. • The garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the instructions in this manual. -
Page 4: Carton Inventory
13 mm, 10 mm, 8 mm Quick Start Guide 5.5 mm DOOR REQUIREMENTS The HandyLift MyQ (CR700MYQ) is suitable for spring balanced Residential Rolling garage doors with: Minimum distance from edge of curtain to edge of door bracket 45 mm •... -
Page 5: Control Panel
CONTROL PANEL 1. Terminal Block: used for external accessories (see chart below). Colour Polarity Comment Ref Function Push button Dry contact input for push button wired wall controls White Common Common terminal for push button, obstruction detection beams & accessory power B Common White Common terminal for push button, obstruction... -
Page 6: Prepare & Test The Door
TESTING THE DOOR Complete the following test to ensure your door is well balanced, and not sticking or binding: • Disable all locks and remove any ropes connected to the garage door. • Lift the door to about halfway and then release it. The door should remain spring balanced. -
Page 7: Pinning The Door
PINNING THE DOOR Note: A ballooning door may delay the safety reversal response and can compromise garage door security. • To remedy any ballooning, insert the supplied self tapping Free curtain Ballooning Add fasteners here metal screws (inset 3) into where the curtain leaves the roll. Secure these through the curtain into the drum wheel at each end of the roll. - Page 8 LEFT / RIGHT HAND INSTALLATION LEFT RIGHT (handing must (factory be changed default during limit setting) setting - refer to section 13) Inside garage looking out...
-
Page 9: Installation Procedure
INSTALLATION PROCEDURE Do not allow people to walk under or around the door during the installation process as serious injury can occur. NOTE: The opener can be installed on either side of the door. The following instructions are for Rope RIGHT HAND INSTALLATIONS (as illustrated i.e. -
Page 10: Adjustment & Testing
Courtesy light: During the programming sequence, the courtesy light will flash at half strength NOTE: The HandyLift MyQ (CR700MYQ) opener is factory configured for right hand installation. The opener will operate during this procedure. Make sure the door is clear of obstruction. - Page 11 TESTING THE SAFETY REVERSE SYSTEM The safety reverse system test is important. The garage door must reverse on contact with a 40 mm obstacle laid flat on the floor. Failure to properly adjust the opener may result in serious personal injury from a closing garage door.
-
Page 12: Install Obstruction Detection Beams
SPECIAL NOTE: Chamberlain strongly recommends that Safety Beams. Safety Beams be installed on all garage door openers. SAFETY BEAMS: By installing Safety Beams, an open door is prevented from closing if a person or object is located in the beam area. - Page 13 SAFETY BEAMS (CONTINUED) Connect cable to the Opener: Disconnect the mains Power from the Opener. fig. 3 At the Powerhead Control Panel remove the plastic break out (see fig 3) to expose the “External Accessory Terminal Block”. Twist both WHITE wires together and both GREY wires together.
-
Page 14: Myq Gateway Installation
To prevent possible serious injury/death, or property damage read and follow all instructions carefully. • The Internet Gateway System: is designed to operate with Chamberlain Sectional and Rolling Garage Door openers, and all the SAFETY INSTRUCTIONS detailed in the OPENER HANDBOOK need to be observed. - Page 15 • When the Chamberlain Internet Gateway powers up, the GREEN LED and BLUE LED will blink 3 times to indicate a correct power connection and reset of the Internet Gateway. After power up, the LEDs will indicate the status of the Chamberlain Internet Gateway.
- Page 16 Step 4 - Changing Chamberlain MyQ App Security Settings ® You can change the SECURITY SETTINGS (see steps 5 & 6) of the Chamberlain MyQ app to allow quicker ® access to your devices and account. The default security setting for the app is at the highest level. You must enter your email and password credentials every time to launch the app or to access and change your account settings.
- Page 17 Add/delete/rename a device (a garage door opener) Go to Places; tap the gear in the upper left corner of the screen. To Add: - Tap the Chamberlain Internet Gateway name - Tap Add New Device To Delete: - Tap the Chamberlain Internet Gateway name - Tap Edit - Tap the “-“...
- Page 18 The 4-digit passcode now replaces email and password for security. Add/delete/rename a device (a garage door opener) Go to Places tab > Menu button > Manage Places Select your place (Chamberlain Internet Gateway) To Add: - Menu button > Add New Device...
- Page 19 • The GREEN LED must be on continuously after power and network connections are completed (NOTE: The LED may blink intermittently with data traffic). • GREEN LED Off – The router is not providing an IP address to the Chamberlain Internet Gateway. Check your router settings and internet connections.
-
Page 20: Timer To Close
The door may operate unexpectedly, therefore do not allow anything to obstruct the path of the door. STANDBY MODE (OPTIONAL) The HandyLift MyQ has been factory set for low standby mode (sub 1 watt usage). This will deliver the lowest possible standby power. The... -
Page 21: Audible Beep
AUDIBLE BEEP (OPTIONAL) The HandyLift MyQ (CR700MYQ) has been factory set for an audible “BEEP”. The Audible beep can be turned OFF by using the following method. • Start with the door fully CLOSED. • Press and Hold both “S” and “DN” buttons... -
Page 22: Wireless Programming
WIRELESS PROGRAMMING (REMOTE ACCESSORIES) Activate the opener only when door is in full view, free of obstruction and properly adjusted. No one should enter or leave the garage while the door is in motion. Do not allow children to operate push buttons or remotes. Do not allow children to play near the door. NOTE: The transmitters supplied with your opener are preprogrammed by the factory. -
Page 23: Operating Your Opener
Set the limits and/or force if necessary. closing door to open and prevents an open door from closing. It is STRONGLY RECOMMENDED for homeowners with young children or pets. SPECIFICATIONS HANDYLIFT MYQ Opening the door manually: (CR700MYQ) Input Voltage: 220-240 VAC, 50-60 Hz, 140 W... -
Page 24: Wiring
TYPICAL WIRING DIAGRAM HANDYLIFT MYQ (CR700MYQ) Information for Service Personnel green (4) grey (3) white (2) red (1) External Receiver 24 vdc white grey Wired Wall Button Obstruction Detection Beams Battery of the remote control: REPLACE BATTERIES IN REMOTES The batteries in the remote have a long life. -
Page 25: Troubleshooting
TROUBLESHOOTING 1. The opener will not operate from either the 8. The door opens but will not close (or reverses UP/DOWN activation button or the transmitters : while closing): • Does the opener have electric power? Plug a lamp into •... -
Page 26: Accessories
ACCESSORIES 1. Model E940C Car visor remote 4. Model 1702AML Outside quick release 2. Model E950C Key ring remote 5. Model 774AML Obstruction detection beams - safety 3. Model E840C Wireless keypad - open the garage door beams to protect your family, pets and property from a with a four button key code closing door DIAGNOSTIC CHART... -
Page 27: Warranty
Unit to you. purchaser, with this Chamberlain Limited Warranty. This Chamberlain Limited Warranty does not cover any failure of, or defect in, the Unit due to: The benefits given to you under this Chamberlain Limited Warranty are... - Page 28 Warranty Registration Register your warranty at: chamberlaindiy.com.au/warranty chamberlaindiy.co.nz/warranty Trademark of The Chamberlain Group, Inc. ® Registered Trademark of The Chamberlain Group, Inc. 114A4902B © 2017 The Chamberlain Group, Inc...
