REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/12 , R2/R3/R4

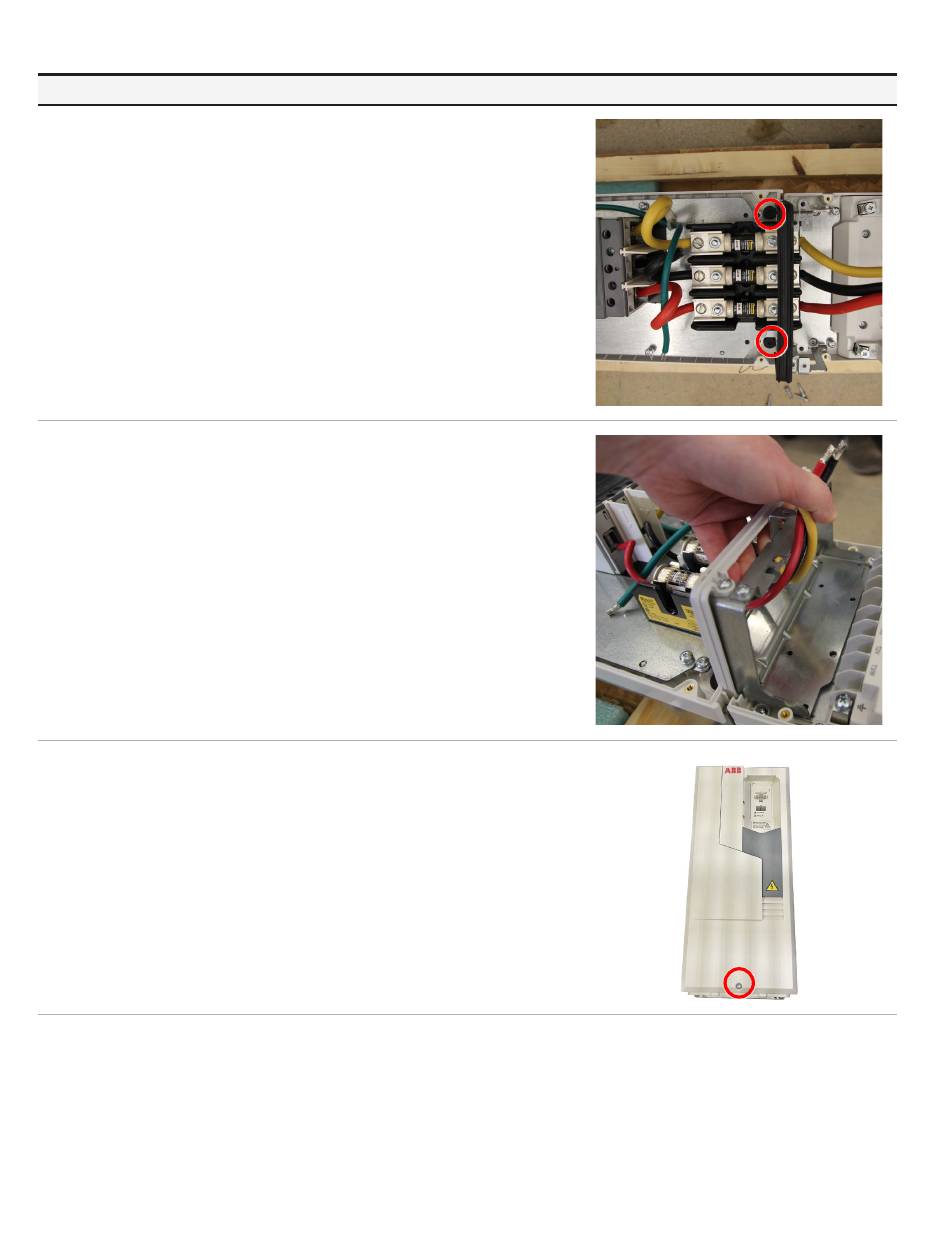

Step Instruction
9
Remove two (2) grommets from the tray to access mounting
screws.
Using a T30 bit, loosen and remove the top two (2) M6 screws
securing the drive.
Carefully lift the drive out of channel.
10
Lift enclosure and slide the drive out of the channel.
11
Unpack the replacement drive.
UL Type 12: UL Type 12 drives require a UL Type 12 replacement
drive, UL Type 1 are not allowed as substitutes for UL Type 12.
Using a T20 bit, loosen screws securing the cover.
UL Type 12: Recycle the hood that was included in the box.
Diagram
4
