Step 12; Step 13; Step 14; Step 15 - ABB ACH580-01 PxR R3 Instructions Manual

REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/12 , R2/R3/R4

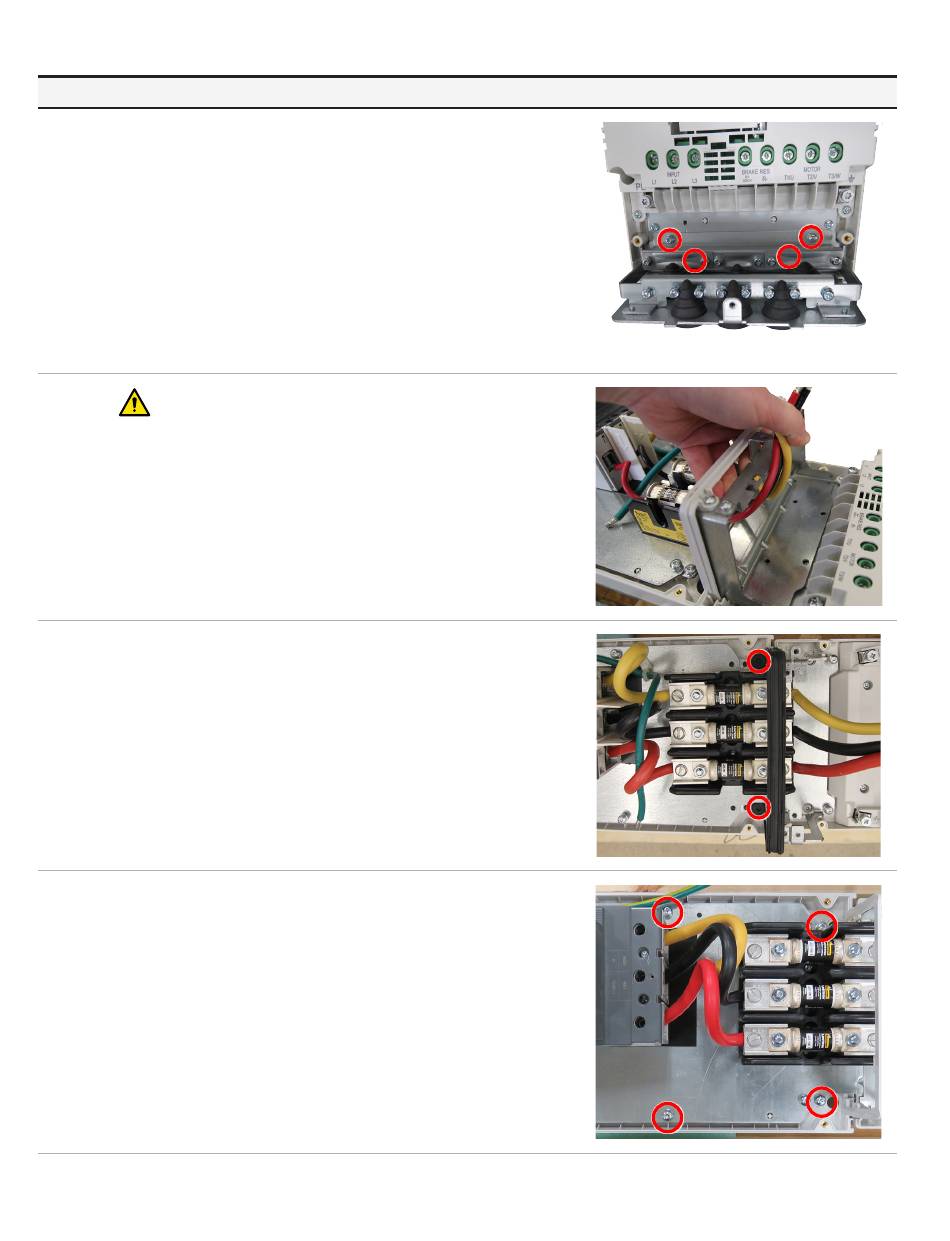

Step Instruction
12
R3 Frame: Using a T20 bit, loosen and remove two (2) M4x16
screws. Remove conduit assembly.
R4 Frame: Using a T25 bit, loosen and remove four (4) M5x25
screws. Remove conduit assembly.
Recycle the conduit assembly and hardware.
13
CAUTION! Use two people to install the drive.
Lift the enclosure and slide the drive mounting holes over the
bottom two (2) screws and slide drive in place.
14
Using a T30 bit, replace the two (2) M6 screws that were removed
earlier.
Torque all four (4) mounting screws to 27 in-lb (3 Nm).
UL Type 12: Reinstall grommets that were removed earlier.
15
Secure the mounting plate using the two (2) M5x25 screws that
were removed earlier.
Using a T25 bit, torque to 18 in-lb (2 Nm).
Diagram
