REPLACEMENT INSTRUCTIONS | ACH580-01 PXR UL TYPE 1/ 12, R2/R3/R4

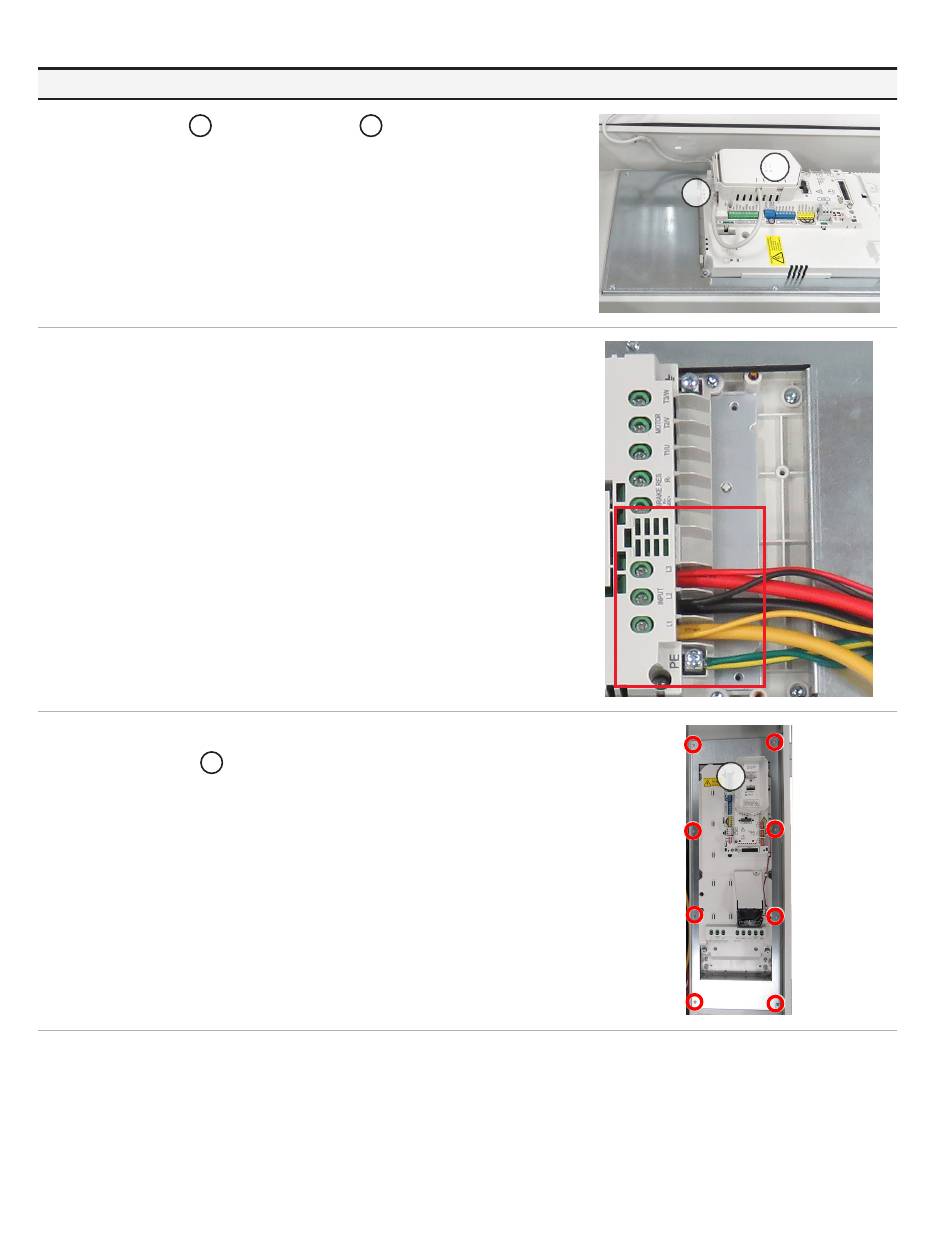

Step Instruction
4
A
Cut zip tie
NOTE: Remove any additional drive I/O wiring.
5
Using a PZ2 bit, loosen and remove wires from the input terminals
of the drive.
Using a PZ3 bit, loosen and remove ground wire from the drive.
6
Using a T20 bit, loosen and remove screws securing the
A
flange plate
Save hardware.
B
and remove the CDPI from drive. Set aside.
.
Diagram
A
A
3
B
