Leviton 06674 Instruction Sheet

WARNINGS
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT THE POWER IS OFF
BEFORE WIRING!
• TO AVOID FIRE, SHOCK, OR DEATH: Use with compatible dimmable LED and
CFL bulbs, incandescent or 120V halogen fixtures only. For a complete list of
compatible LED bulbs refer to www.leviton.com/led.
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.
Cat. No. LED/CFL
06674 150W
You will need:
• Slotted/Phillips screwdriver
• Pencil
• Electrical tape
• Cutters
• Pliers
• Ruler
Installation

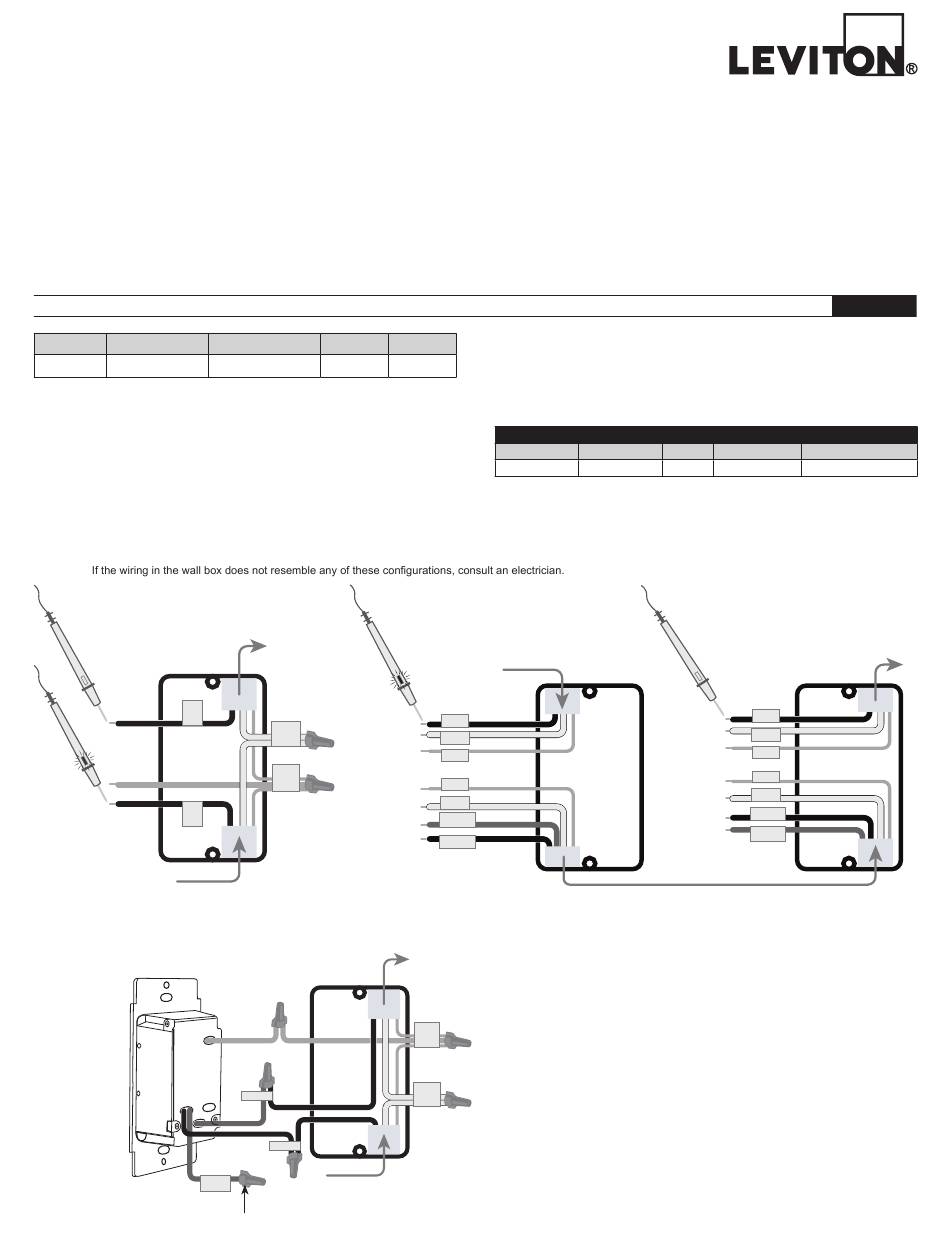

Identify your wires (most common).
1.
NOTE:
Single Pole
To Light
LOAD
LINE
From
Branch Circuit
2. Wire.
Remove 5/8 in (1.6 cm) of insulation from each wire in the wall box.
NOTE: These are diagrams to represent the most common applications. Your dimmer or wallbox may not look exactly as you see in these diagrams
Single Pole
TRAVELER
NOTE: This wire is used in 3-way
installations only. Cap wire as shown
when not in use.

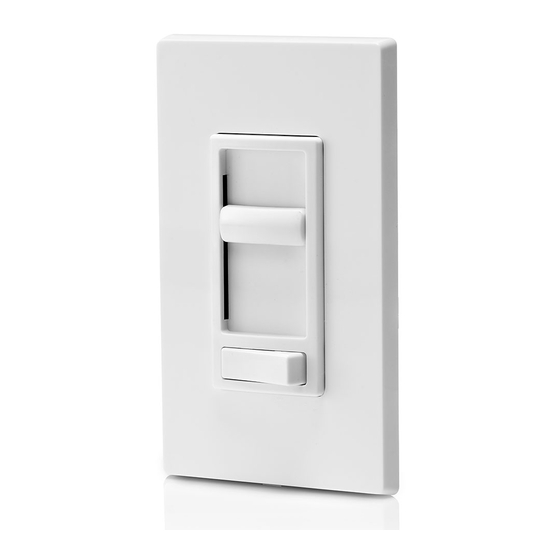

LED / CFL / Incandescent Slide Dimmer
INSTALLATION INSTRUCTIONS
Incandescent VAC
600W 120VAC
3-Way
NEUTRAL
GROUND
To Light
LOAD
LINE
From
Branch Circuit
Cat. No. 06674
CAUTIONS
• When multiple bulbs are used with one dimmer DO NOT mix bulb types. All bulbs shall be
either LED, CFL
or incandescent. Using the same make/model of each bulb will enhance performance.
• Use only one (1) dimmer in a 3-way circuit. The switch(es) will turn the light on at the
brightness level selected at the dimmer.
• To avoid overheating and possible damage to this device and other equipment, DO NOT
install to control a receptacle, a motor or a transformer-operated appliance, or any other
lighting sources than those specified.
• Use this device WITH COPPER CLAD WIRE ONLY.
• To clean use a damp cloth with mild soap. DO NOT use disinfecting products,
including foggers, sprays or other types of atomized cleaning agents.
Before you install your dimmer by itself or with
Hz
other dimmers:
60Hz
In incandescent multi-dimmer installations, the reduction of the dimmer's capacity is
required. Refer to the chart for maximum load per dimmer. No derating is required for
use in dimmable LED or dimmable CFL multi-dimmer installations.
MAXIMUM LOAD PER DIMMER FOR MULTI-DEVICE
Cat. No.
06674 Incandescent
Dimmer Wallbox
From
Branch Circuit
LINE
NEUTRAL
GROUND
GROUND
NEUTRAL
TRAVELER 2
TRAVELER 1
TRAVELER 2
To Switch
Wallbox
GROUND
NEUTRAL
Load Single Two Devices
600W 500W
3-Way Switch Wallbox
LOAD
NEUTRAL
GROUND
GROUND
NEUTRAL
TRAVELER 1
TRAVELER 2
DI-000-06674-02B
ENGLISH
More than 2 Devices
400W
To Light
From Dimmer
Wallbox
