Leviton lumina 0-10VDC RF Installation Instructions

WARNINGS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

Before Installation

• Install into any single gang device back box.
• Support Multi-gang installations.
• Require Decora faceplate, sold separately.
®
• Devices use 0-10Vdc low voltage control wires which may be installed as Class 1 or Class 2.
IMPORTANT NOTE: If installed as Class 2, all devices in the circuit must be Class 2 rated and this switch must be wired per instructions below.
Class 2 Installation:
As required under NEC code NFPA 70, paragraph 725.136 (d), the Class 2 0-10V (gray and violet) control wires must be mechanically separated from
Class 1 wiring (line, neutral and ground power lines) when located within the same electrical box. This is accomplished by installing a mechanical barrier
such as silicone tubing or other non-conducting sleeve over the length of 0-10V control wires.
When product is used with 120VAC power source and the 0-10V control wires are connected to CL3, CL3R or CL3P rated control cables (or permitted
substitute), then silicone tubing or other non-conducting sleeve is required over the control wires for the entire wire length from the device to the location
where the wires exit the box. Tubing is not required on the CL3, CL3R or CL3P between the wire connector and extending out of the electrical box.
When used with 277VAC power source and the 0-10V control wires are connected to CL3, CL3R or CL3P rated control cables (or permitted substitute),
then silicone tubing or other non-conducting sleeve is required over the control wires for the entire wire length from the device to the location where the
wires exit the box. Tubing is also required on the CL3, CL3R or CL3P between the wire connector and extending out of the electrical box.
NOTE:
• Silicone tubing should be NRTL (UL/CSA/ETL) recognized or equivalent to provide mechanical separation equal to .25" in air.
• Connectors joining 0-10V control wires should be approved LISTED CONNECTORS.
• Wire connectors and wire tubing should be provided by the installation contractor.

Installation

WARNING: TO AVOID FIRE, SHOCK, OR DEATH;
TURN OFF POWER at circuit breaker or fuse and
test that power is off before wiring!
1.

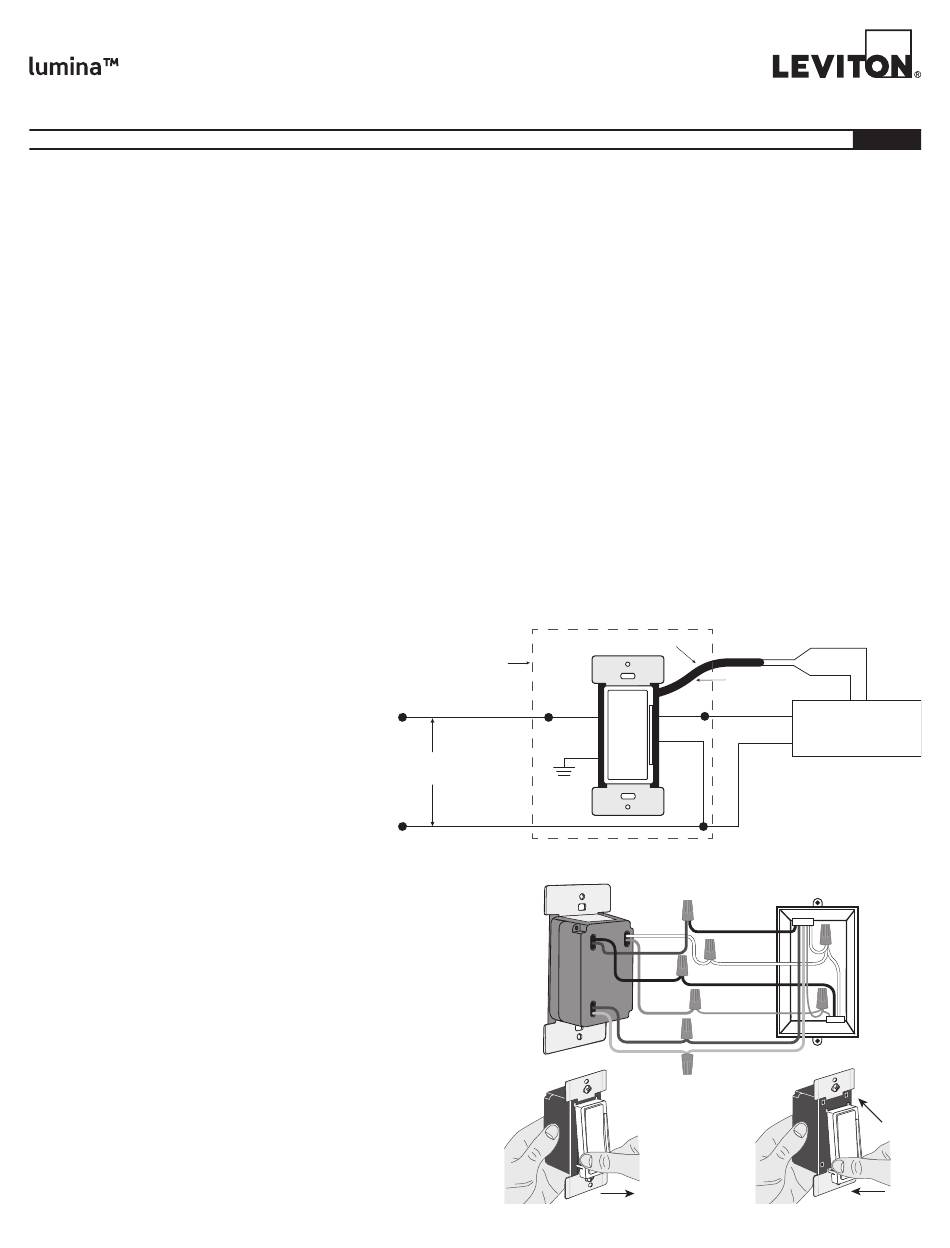

Strip wires 3/4" and connect as per wiring diagram.
Ensure wires are firmly attached and there is no
exposed copper.
2.
Gently place the wires and your device into the wall box and attach
with screws provided.
3.
Restore power and test ON/OFF operation. LED locator light should
be ON when switch power is turned OFF.
4.
If desired, change switch color.
5.
Install Decora faceplate.
© 2019 Leviton Mfg. Co., Inc.
0-10VDC RF Wall Dimmer
Cat. No. ZS057-D0Z, Ratings: 120-277VAC, 50/60Hz.
Cat. No. ZS057-30Z, Ratings: 347VAC, 50/60Hz.
INSTALLATION INSTRUCTIONS
Electrical Box
Hot (Black)
Line
Neutral (White)
CAUTIONS
• Use this device with copper or copper clad wire only.
• For indoor applications only.
• Save these instructions.
Connectors
Black Blue
White
Green
Ground
Class 1 installation shown (for Class 2, refer to notes)
White
Blue
Black
Green
Violet
Gray
To release, push sides.
DI-000-ZS057-02B-X1
ENGLISH
Violet
Gray
Sleeve
Black
0-10 VDC
White Ballast/LED Driver
Load
Neutral
Line (Hot)
Ground
Line up and press in to attach.
DI-000-ZS057-02B-X1
