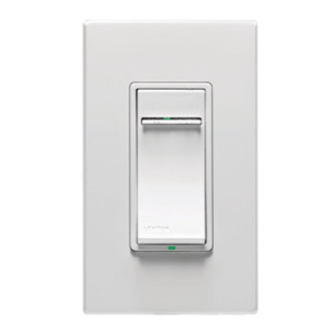

Leviton vizia rf + VRMX1-1L Installation Instructions And Owner's Manual

WARNINGS AND CAUTIONS
:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Use ONly with the appropriate Advance Transformer 120V Mark 10™ Powerline or Lutron Tu-Wire
• To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, a motor- or a transformer operated appliance.
• Use with magnetic low voltage transformers, incandescent, or 120V halogen fixtures only. Use a Leviton electronic low voltage dimmer to control electronic (solid state) low voltage transformers.
• When retrofitting Mark 10™ Powerline dimming ballasts into fixtures that originally had Instant Start ballasts, the sockets MUST be replaced with Rapid Start sockets to allow proper
dimmer operation and prevent damage to the dimmer ballast. Refer to the instructions provided with the ballast.
• Vizia RF + dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia +
TM
INTRODUCTION
Leviton's Vizia RF + components are designed to communicate with
TM
each other via Radio Frequency (RF) to provide remote control of your
lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton's
Vizia RF + component line is a Z-Wave enabled device. In a
TM ®
Z-Wave network, each device is designed to act as a router. These
®
routers will re-transmit the RF signal from one device to another until
the intended device is reached. This ensures that the signal is received
by its intended device by routing the signal around obstacles and radio
dead spots. The Scene Capable Incandescent/Magnetic Low Voltage
or Fluorescent Dimmer is compatible with any Z-Wave enabled
®
network, regardless of the manufacturer and can also be used with
other devices displaying the Z-Wave logo.
®
CAUTION:
Remember to exercise good common sense when using the Timer
features of your remote, especially when scheduling unattended
devices. There can be some unexpected consequences if not used
with care. For example, an empty coffee pot can be remotely turned
on. If that should happen, your coffee pot could be damaged from
overheating. If an electric heater is turned on by remote control while
clothing is draped over it, a fire could result. DO NOT USE the remote
for the control of high power heating appliances such as portable
heaters. This device will not control lighting that is used with electronic
low-voltage and high frequency power supply transformers, nor high
pressure discharge lamps (HID lighting). This includes mercury-vapor,
sodium vapor and metal halide lamps.
FEATURES
• Soft fade ON/OFF
• Scene capable
• ON/OFF LED and Brightness level LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave enabled devices
®
Tools needed to install your Dimmer:
Slotted/Phillips Screwdriver Electrical Tape Pliers
Pencil Cutters Ruler
Changing the color of your Dimmer:
Your device may include color options. To change color of the face
proceed as follows:
line up tabs
Push in side at and press in sides
tab to release
one at a time to attach
Installing Dimmer by itself or with other devices:
If installing Dimmer in a single device application, proceed with the
INSTAllING yOUR DIMMER section. If installing Dimmer in a
multi-device application, proceed as follows:
Single Pole (One location) or 3-Way (Multi-location)
Scene Capable Incandescent/Magnetic low Voltage or Fluorescent Dimmer
electronic ballasts for controlling the specific fluorescent lamps in Fluorescent Mode.
®
or Vizia RF + controllers for multi-location dimming.
TM TM
MUlTI-DEVICE APPlICATION
In multi-dimmer installations, the reduction of the dimmer's capacity is
required. Refer to the chart for maximum load per dimmer.
Remove all
inner side
sections
Do not
remove
Bend back and
outer side
forth to remove
sections
side section
MAXIMUM lOAD PER DIMMER FOR MUlTI-DEVICE
load Single Two Devices More than 2 Devices
Incand 1000W 800W 650W
Mag LV 1000VA 800VA 650VA
MAXIMUM BUlB WATTAGE
Low-voltage dimmers are rated in Volt-Amps (VA). The maximum bulb wattage
is determined by the efficiency of the transformer in the low-voltage lighting
system. Transformer efficiencies will vary from different manufacturers;
consider 80% efficient as average. Use the chart to determine maximum bulb
wattage for typical transformer efficiency ratings.
MAXIMUM BUlB WATTAGE AT 75% EFFICIENCy
Rating Single Two Gang More than 2 Gang
1000VA 800W 640W 520W
MAXIMUM BUlB WATTAGE
Mark 10™ Powerline dimmers are rated in Volt-Amps (VA). The maximum
bulb wattage is determined by the efficiency of the Mark 10™ Powerline
ballast. The following table shows the maximum number of ballasts that can
be connected to a single dimmer for different Mark 10™ Powerline ballasts.
Also note that the table shows maximum ballasts for multi-gang installations.
Cat. No. VRMX1, 120V, For use with Advance Transformer
120V Mark 10 Powerline Electronic Ballasts
TM
Max. # Ballasts/Dimmer for
Advance
Multi-gang
Mark 10 TM
lamp
Powerline
Single Two More than
Part No.
Gang Ganged 2 Gang
REZ-2Q18-M2-LD CFM18W/GX24Q 23 18 15
REZ-1T32 CFM26W/GX24Q 32 25 20
REZ-2Q26 CFM26W/GX24Q 17 13 11
REZ-1T32 CFM32W/GX24Q 26 20 16
REZ-1T42 CFM42W/GX24Q 20 16 13
REZ-1Q18-M2-BS CFQ18W/G24Q 46 37 30
REZ-1Q18-M2-LD CFQ18W/G24Q 46 37 30
REZ-2Q18-M2-BS CFQ18W/G24Q 23 18 15
REZ-1T32 CFQ26W/G24Q 32 25 20
REZ-1T42-M2-BS CFQ26W/G24Q 32 25 20
REZ-1T42-M2-LD CFQ26W/G24Q 32 25 20
REZ-2Q26 CFQ26W/G24Q 17 13 11
REZ-2Q26-M2-BS CFQ26W/G24Q 17 13 11
REZ-2Q26-M2-LD CFQ26W/G24Q 17 13 11
REZ-1Q18-M2-BS CFTR18W/GX24Q 46 37 30
REZ-1Q18-M2-LD CFTR18W/GX24Q 46 37 30
REZ-2Q18-M2-BS CFTR18W/GX24Q 23 18 15
REZ-2Q18-M2-LD CFTR18W/GX24Q 23 18 15
REZ-1T42-M2-BS CFTR26W/GX24Q 32 25 20
REZ-1T42-M2-LD CFTR26W/GX24Q 32 25 20
REZ-2Q26-M2-BS CFTR26W/GX24Q 17 13 11
REZ-2Q26-M2-LD CFTR26W/GX24Q 17 13 11
REZ-1T42-M2-BS CFTR32W/GX24Q 26 20 16
REZ-1T42-M2-LD CFTR32W/GX24Q 26 20 16
REZ-2T42-M3-BS CFTR32W/GX24Q 13 10 8
Cat. No. VRMX1-1L, 1000VA, 1000W (Lighted)
120VAC, 60Hz

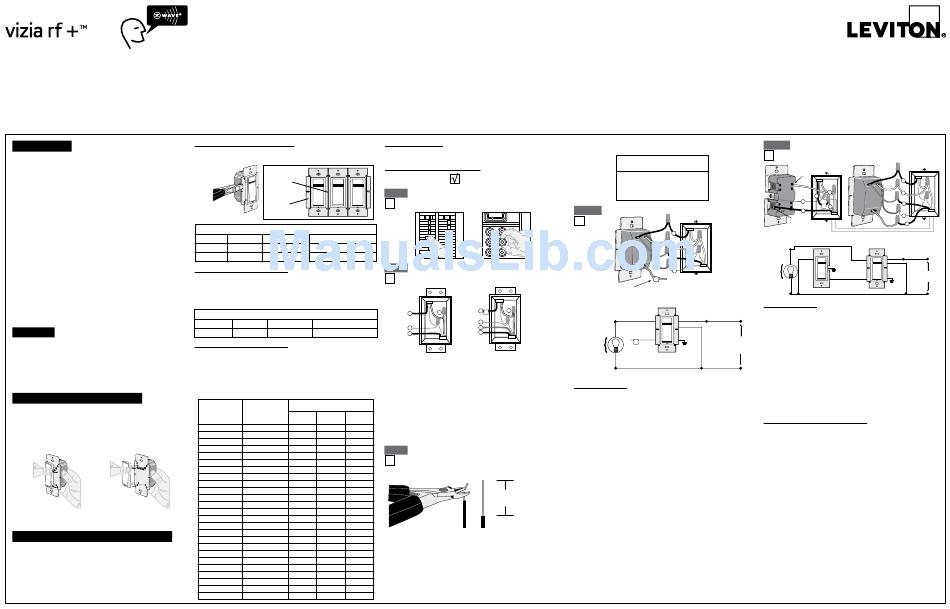

INSTAllATION INSTRUCTIONS
WARNINGS AND CAUTIONS
• When magnetic low voltage circuits are operated at a dim level, with all lamps inoperative, excess current may flow through the transformer. To avoid possible transformer failure due to
overcurrent, use a transformer that incorporates thermal protection or a fuse at the primary windings.
• Fluorescent lamps must be burned in at full intensity for 100 hours prior to dimming for proper dimming performance. Use only one (1) Vizia RF +™ Incandescent/Magnetic Low Voltage
or Fluorescent Dimmer in a multi-location circuit with up to 9 coordinating remotes (without LEDs) or up to 4 matching remotes (with LEDs). The remote(s) will turn the load on ("at the
level selected" for dimmers only) at the control.
• Total minimum load must exceed 40W.
• Dimmer may feel warm to the touch during normal operation.
• Recommended minimum wall box depth is 2-1/2".
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft.
• Use this device WITH COPPER OR COPPER ClAD WIRE ONly.
lutron Tu-Wire®:
To determine total ballast load, add the line current found on the ballast label
for all ballasts in the circuit. This will indicate the total load for the control.
INSTAllING yOUR DIMMER
NOTE: Use check boxes when Steps are completed.
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
Step 1
OFF POWER at circuit breaker or fuse and test that power
is off before wiring!
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble any
of these configurations, consult an electrician.
2
1
2
1
3
4
3
5
4
3-Way
Single Pole
1. Line or Load
1. Line (Hot)
(see important
2. Neutral
instruction)
3. Ground
2. Neutral
4. Load
3. Ground
4. First Traveler – note color
5. Second Traveler – note color
IMPORTANT: For 3-Way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as the
common (Line or Load) in both the dimmer wall box and remote wall box.
Preparing and connecting wires:
Step 3
Pull off pre-cut insulation from dimmer leads. Make sure that
the ends of the wires from the wall box are straight (cut if
necessary). Remove insulation from each wire in the wall box
as shown:
5/8"
Strip Gage
(1.6 cm)
(measure bare
wire here)
Cut
(if necessary)
• Pull off pre-cut insulation from dimmer leads.
• Make sure that the ends of the wires from the wall box are straight
(cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no lEDs) Application, go to
Step 4b.
:
For non-standard wiring applications, refer
to Wire Nut and Connector Size Chart
WIRE CONNECTOR / # OF COND.
COMBINATION CHART
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 or 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
2 - #14 w/ 1 to 3 #16 or #18
Single Pole Wiring Application:
Step 4a
Black
1
White
2
Red
4
Green
3
Yellow/Red
Insulating label:
This wire is used in 3-way installations only.
For single pole installations, do not remove this insulating label.
Dimmer
Red Black Hot (Black)
Black
White
Yellow/Red
Line
(PRIMARY SIDE
Green
120 VAC,
OF BALLAST)
Insulating Ground
60Hz
Label
White
Neutral (White)
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
WARNING:
CONNECT A MAGNETIC LOW-VOLTAGE DIMMER ONLY
TO THE PRIMARY (HIGH-VOLTAGE) SIDE OF A MAGNETIC
LOW-VOLTAGE TRANSFORMER.
• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot wall box wire to Black dimmer lead.
• Load wall box wire to Red dimmer lead.
• Line Neutral wall box wire to White dimmer lead.
• Yellow/Red dimmer lead should have Red insulation label affixed.
NOTE: If insulating label is not affixed to Yellow/Red dimmer lead,
use electrical tape to cover.
• Proceed to Step 5.
DI-000-VRMX1-02A
3-Way Wiring with Coordinating Remote
Step 4b
(no lEDs) Application:
Coordinating Remote Dimmer
Terminal Screw
marked White (WH)
Black
1
BK
White
2
2
1
Red
3
4
4
Green
5
3
Terminal
Yellow/
Screw marked
Red
5
Yellow/Red
(YL/RD)
Dimmer
Coordinating Remote (no LEDs)
Black
Black Hot (Black)
WH BK
Red
(unused)
White
(PRIMARY SIDE
Green
OF MAGNETIC
Ground
LOW-VOLTAGE Line
TRANSFORMER) RD YL/RD Yellow/
120VAC, 60Hz
(unused)
Red
Green
White
Ground
Neutral (White)
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
WARNING:
FOR MAGNETIC LOW-VOLTAGE APPLICATIONS,
CONNECT DIMMER ONLY TO THE PRIMARY (HIGH-VOLTAGE)
SIDE OF A MAGNETIC LOW-VOLTAGE TRANSFORMER.
NOTE: When using the coordinating remote without LEDs, the dimmer
can be installed on either the Line or Load side of the 3-way circuit.
NOTE: Maximum wire length from dimmer to all installed remotes cannot
exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch to Black dimmer lead.
• First Traveler wall box wire to Red dimmer lead (note wire color).
• Remove Red insulating label from Yellow/Red dimmer lead.
• Second Traveler wall box wire to Yellow/Red dimmer lead
(note wire color). This traveler from the dimmer must go to the
terminal screw on the remote marked "YL/RD".
• Line Neutral wall box wire to White dimmer lead.
WIRING COORDINATING REMOTE:
Connect wires per WIRING DIAGRAM as follows:
NOTE: "BK" and "RD" terminals on coordinating remote are unused.
Tighten both screws.
NOTE: Maximum wire length from dimmer to last remote is 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to First
Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal screw
marked "YL/RD". This traveler from the remote must go to the
Yellow/Red dimmer lead.
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
