Installation of the new capacitors
Both capacitors are the same, so it is not possible to mix them up. The only thing you have to take care is the
polarity! If it is wrong, the capacitor will be destroyed!
First install C3
Put some solder on one of the 2 points. Fix the capacitor on that point. Then solder the capacitor on the
second point.
Install C126 in the same way.

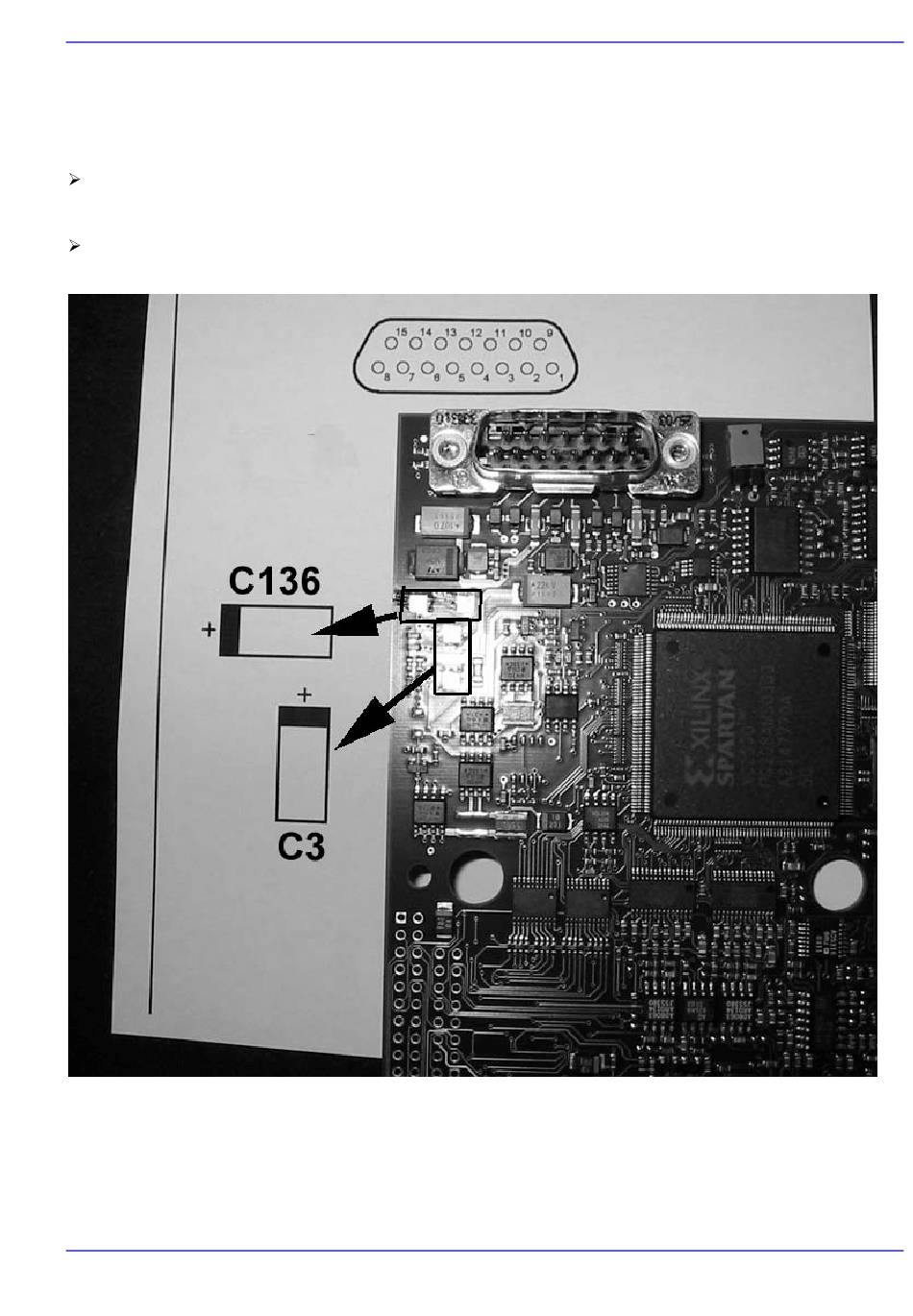

The picture shows the correct polarity.
AGFA d-lab.1
CM+9.8072.9003.0/DD+18070312D0/PN04073_00
