BLE (2.4 GHz)
The antenna for the BLE module is integrated in the BLE chip.
For more information, refer to the related product data sheet or other relevant technical documents.
3.8

LABEL AND COMPLIANCE INFORMATION

Refer to Chapters "Compliance Statements" and "Integrator and Host Requirements" for detailed label and compliance information.
3.9

TEST MODES AND ADDITIONAL TESTING REQUIREMENTS

No specific testing method has been defined by ELATEC for TWN4 Palon Compact LEGIC M.
TWN4 Palon Compact LEGIC M has been tested and found in compliance with the specifications noted on the approval certificates
and other relevant approval documents. However, the integrator is still responsible for any additional testing and authorization process
required for the end product. Refer to the KDB Publication 996369 D04 Module Integration Guide of the FCC Office of Engineering
and Technology (OET) for detailed information about test modes and additional testing requirements for the host device.
3.10

ADDITIONAL TESTING, PART 15 SUBPART B DISCLAIMER

TWN4 Palon Compact LEGIC M is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and
the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular
transmitter grant of certification. In addition, the final host product still requires Part 15 Subpart B compliance testing with
TWN4 Palon Compact LEGIC M installed.
3.11

MECHANICAL INSTALLATION

The reader module can be fixed into the host device with two screws M2.5.
3.12

ELECTRICAL CONNECTION

DIP ASSIGNMENT
1 RS-485 address 0 LSB
2 RS-485 address 1
3 RS-485 address 2
4 RS-485 address 3 MSB
5 RS-485 BIAS on/off
6 RS-485 speed 0
7 RS-485 speed 1
8 RS-485 termination 120 Ohm on/off
PIN ASSIGNMENT
1 RS-232 RX
2 RS-232 TX
3 RS-485 A
4 RS-485 B
5 TTL Wiegand D0 or DATA
6 TTL Wiegand D1 or CLOCK
7 VIN 9 – 30 Volt
8 GND
Firmware may change the assignment of the DIP switch. Please refer to the TWN4 Palon Technical Handbook.
For RS-232, Wiegand, Clock/Data the DIP switch is not used.
3.13

PROGRAMMATION/SOFTWARE INTEGRATION

n/a
© 2021 ELATEC GmbH – TWN4 Palon Compact LEGIC M integration manual DocRev1 – 08/2021

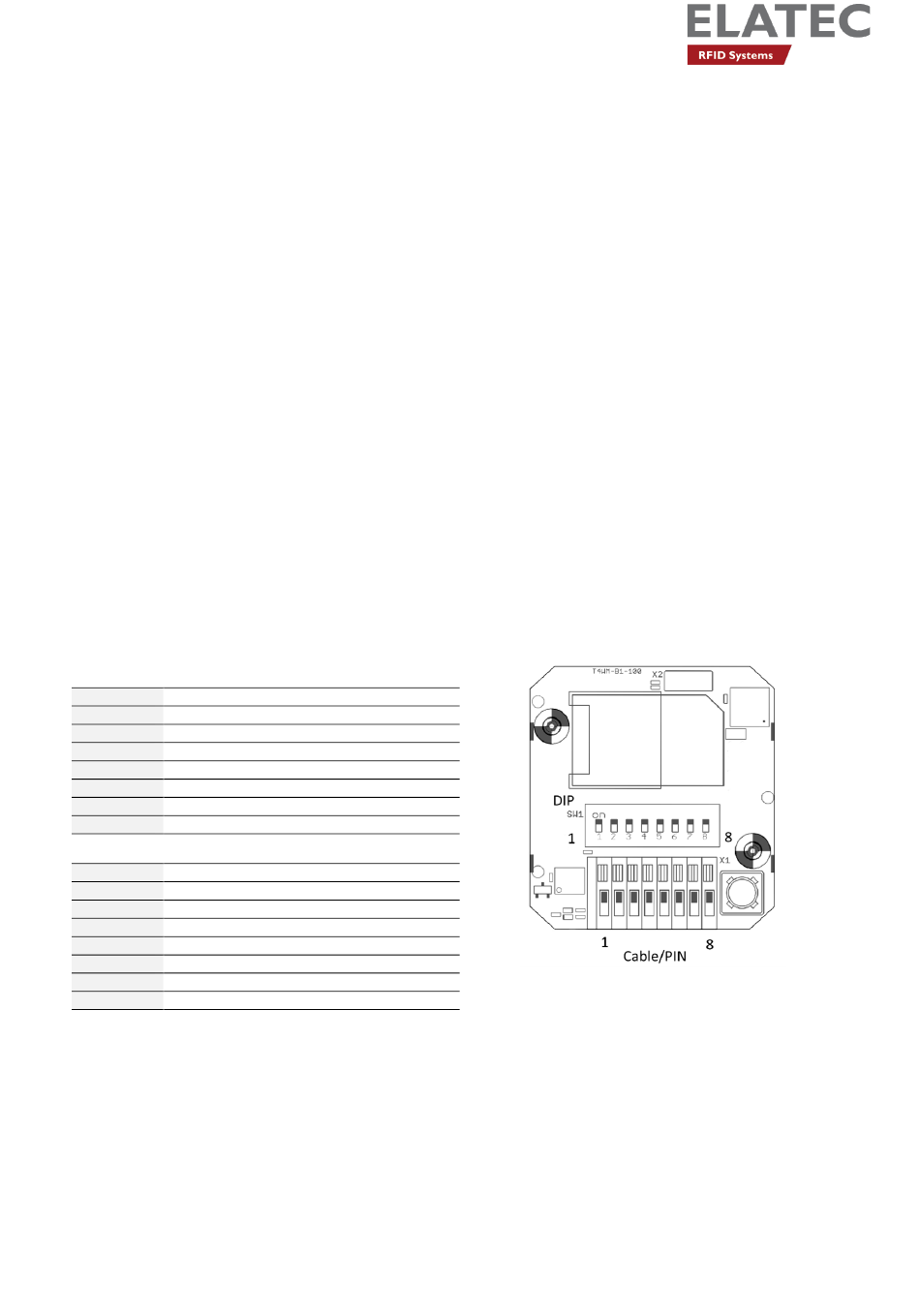

Drawing / rear view PCB
