STOCKHOLM
BOOKCASE LARGE WIDE
fantasticfurniture.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the STOCKHOLM and is the answer not in the manual?

Questions and answers

Related Manuals for fantastic furniture STOCKHOLM

Summary of Contents for fantastic furniture STOCKHOLM

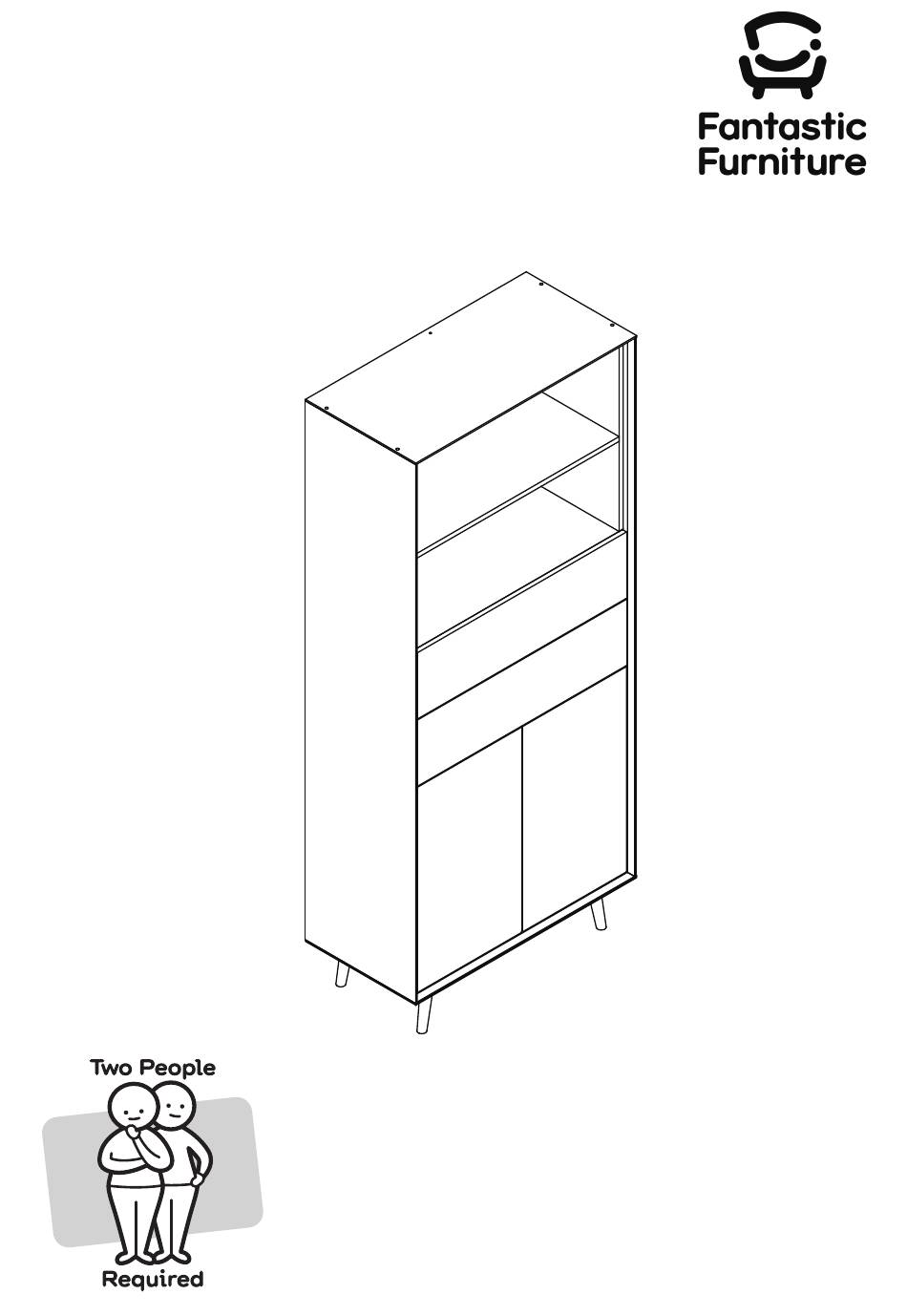

  • Page 1 Version 1.0 STOCKHOLM BOOKCASE LARGE WIDE fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love Love it? Share it! Fantastic buy! Share how it looks at home for your chance to win a $250 Fantastic Furniture Gift Card! fantasticfurniture PAGE 2 fantasticfurniture.com.au...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 4: What You Need

    What you need Top Panel (P1) to assemble the product Right Inner Side Inner Top Panel Side Panel (P7) Panel Inner (P4) (P5) Back Side Panel Panel Shelf Panel (P9) (P5) (P8) DO NOT USE Back Panel Other tools you need: Shelf Panel (P9) Phillips head screwdriver;...
  • Page 5 Step 1 (P5) You will need (P4) 2 x CL Runner 2 x CR Runner Tracks (H6) Tracks (H7) (P5) 12 x Small 12 x Screws Screws (H5) (H16) (P3) Phillips Head Screwdriver Attach 2 x Inner Side Panels (P5) to Left Side Panel (P3) and Right Side Panel (P4) with 12 x Screws (H16) by tightening with the Phillips...
  • Page 6 Step 3 You will need (P13) 16 x Small 4 x Catches Screws (H5) (H13) Phillips Head Screwdriver FLIP (P14) (P14) Attach 4 x Catches (H13) to each side of Rail (P14) and Rail (P13) with 16 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
  • Page 7 Step 5 Ensure laminated (P9) side of panel is facing inwards. (P9) (P10) (P7) (P11) (P8) (P8) (P12) (P16) Slide 2 x Back Panels (P9) and Back Panels (P10&P11) into the grooves of Inner Top & Shelf Panels (P7&P8x2) and Rail &...
  • Page 8 Step 7 You will need (P1) (P4) 4 x Dowels 4 x Long (H1) Screws (H2) Phillips Head Screwdriver (P3) Insert 4 x Dowels (H1) into the top of Left & Right Side Panels (P3&P4) and secure Top Panel (P1) to the top of the unit with 4 x Long Screws (H2) by tightening with the Phillips Head Screwdriver.
  • Page 9 Step 9 You will need (P4) 4 x Dowels 4 x Long (H1) Screws (H2) Phillips Head Screwdriver (P3) (P2) Insert 4 x Dowels (H1) into the bottom of Left & Right Side Panels (P3&P4) and secure Bottom Panel (P2) to the bottom of the unit with 4 x Long Screws (H2) by tightening with the Phillips Head Screwdriver.
  • Page 10 Step 11 You will need 4 x Hinges 8 x Small (H11) Screws (H10) (P15) 2 x Pin Screws Phillips Head (H12) Screwdriver Attach 4 x Hinges (H11) and 2 x Pin Screws (H12) to both Doors (P15x2) with 8 x Small Screws (H10) by tightening with the Phillips Head Screwdriver.
  • Page 11 Step 13 You will need 10 x Cam Bolts Phillips Head (H3) Screwdriver (P17) 2 x Pin Screws (H12) Attach 10 x Cam Bolts (H3) and 2 x Pin Screws (H12) to both Drawer Fronts (P17x2) by tightening with the Phillips Head Screwdriver. Step 14 You will need Phillips Head...
  • Page 12 Step 15 (P21) Ensure laminated (P18) side of panel is facing inwards. (P19) (P17) Slide the Drawer Bases (P21x2) into the grooves of Left & Right Drawer Sides (P18x2&P19x2) as shown. Step 16 You will need 10 x Screws Phillips Head (H16) Screwdriver (P22)
  • Page 13 Step 17 You will need (P19) 2 x DL 2 x DR Runners (H8) Runners (H9) (P18) 8 x Small Phillips Head Screws (H5) Screwdriver (P17) Attach 2 x DL Runners (H8) to Left Drawer Sides (P18x2) and 2 x DR Runners (H9) to Right Drawer Sides (P19x2) with 8 x Small Screws (H5) by tightening with the Phillips Head Screwdriver.
  • Page 14 Step 19 (P1) You will need 8 x Wedges 8 x Wedge (H17) Screws (H18) (P10) 1 x Safety 1 x Safety Strap Strap (H19) Screw (H20) (P11) (P11) 1 x Washer Phillips Head (H21) Screwdriver Attach 1 x Safety Strap (H19) to Top Panel (P1) with 1 x Safety Strap Screw (H20) and 1 x Washer (H17) by tightening with the Phillips Head Screwdriver.
