I N S T A L L A T I O N
M A N U A L

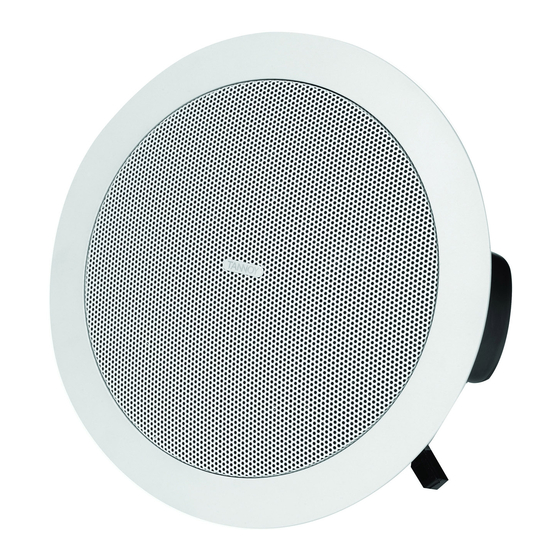

CVS 4
CVS 6
CVS 8
CVS 4 TEMPLATE CUTOUT SIZE: 180mm
CVS 6 TEMPLATE CUTOUT SIZE: 250mm
A
T
CVS 8 TEMPLATE CUTOUT SIZE: 320mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVS 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tannoy CVS 4

Summary of Contents for Tannoy CVS 4

  • Page 1 I N S T A L L A T I O N M A N U A L CVS 4 CVS 6 CVS 8 CVS 4 TEMPLATE CUTOUT SIZE: 180mm CVS 6 TEMPLATE CUTOUT SIZE: 250mm CVS 8 TEMPLATE CUTOUT SIZE: 320mm...
  • Page 2 SAFETY NOTICES PRODUCT FEATURE IDENTIFICATION ACCESSORIES INSTALLATION GUIDE MECHANICAL INSTALLATION GUIDE FOR SUSPENDED CEILINGS MECHANICAL INSTALLATION GUIDE FOR SHEET-ROCK CEILINGS WIRING AND SETTING UP DIMENSIONS CVS 4 DIMENSIONS CVS 6 DIMENSIONS CVS 8 DIMENSIONS TECHNICAL SPECIFICATIONS PAINTING WARRANTY DECLARATION OF CONFORMITY...

  • Page 3: Safety Notices

    Recommended torque setting: 1.5Nm Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers. Electrical Safety Notice: to comply with the standard UL1480 , metal-clad flexible conduit (BX) is required for connection to the terminal block for proper earth grounding.

  • Page 4: Product Feature Identification

    4. PRODUCT FEATURE IDENTIFICATION: CVS 4 Safety Tab Rotary Switch Conduit/Cable Clamp Tuning Ports Screws for mounting wings Mounting Wings CVS 6 Safety Tab Screws for mounting wings Conduit/Cable Clamp Tuning Ports Rotary Switch Mounting Wings CVS 8 Safety Tab...
  • Page 5 5. ACCESSORIES: Standard Accessories C-Ring Tile bridge kit Note: A tile bridge kit must always be used when installing into suspended ceiling tiles Grille Cut-out template Paint Mask Optional Accessories Plaster (Mud) Ring...

  • Page 6: Mechanical Installation Guide For Suspended Ceilings

    Slide the speaker assembly through the hole and turn the screws on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. If using a power driver, Tannoy recommends a torque setting of 1.5Nm. DO NOT OVERTIGHTEN! Slide the tile panel back into the suspended ceiling.
  • Page 7 Slide the speaker assembly through the hole and turn the screws to extend the mounting wings. Tighten the screws until a firm grip is achieved. If using a power driver, Tannoy recommends a torque setting of 1.5Nm. DO NOT OVERTIGHTEN! Connect a Secondary Support Line to safety tab.

  • Page 8: Mechanical Installation Instructions For Optional Plaster Ring

    6.3 MECHANICAL INSTALLATION INSTRUCTIONS FOR OPTIONAL PLASTER RING: An optional plaster (mud) ring bracket is available from Tannoy. This bracket is designed to be pre-installed into newly constructed, non-suspended ceilings. Nail or screw the plaster ring to the joists. Lay the speaker wiring to where the speaker will be fitted and complete the plastering work on the ceiling.

  • Page 9: Wiring And Setting Up

    SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE. The CVS 4 is fitted with a 30W transformer. When used in distributed-line systems, the transformer can be tapped at 30W, 15W and 7.5W, with an additional 3.75W tapping for 70.7V line systems.

  • Page 10: Cvs 4 Dimensions

    8.1 CVS 4 DIMENSIONS: CVS 4 TEMPLATE CUTOUT SIZE: 180mm 214.9 202.5 [8.46"] [7.97"] 14.7 [0.58"] ø174.8 ø213.0 [6.88"] [8.39"]...

  • Page 11: Cvs 6 Dimensions

    8.2 CVS 6 DIMENSIONS: CVS 6 TEMPLATE CUTOUT SIZE: 250mm 258.5 246.5 [9.70"] [10.18"] 15.9 [0.63"] ø279.6 ø244.6 [11.01"] [9.63"]...
  • Page 12 8.3 CVS 8 DIMENSIONS: CVS 8 TEMPLATE CUTOUT SIZE: 320mm 264.0 251.0 [10.39"] [9.88"] 19.6 [0.77"] 355.6 315.2 [14.00"] [12.41"]...

  • Page 13: Technical Specifications

    CVS4 TECHNICAL SPECIFICATIONS Transducers System CVS4 Low Frequency 100mm (4.00") Mineral Loaded Frequency Response (-3dB) 85Hz - 19kHz High Frequency 19mm (0.75") Frequency Range (-10dB) 77Hz - 22kHz System Sensitivity (1W @1m) 87dB (1W = 2.45V for 6 Ohms) Physical Nominal Coverage Angle 90 degrees conical Enclosure...
  • Page 14 CVS6 TECHNICAL SPECIFICATIONS Transducers System CVS6 Low Frequency 150mm (6.00") Mineral Loaded Frequency Response (-3dB) 79Hz - 21kHz polypropylene ICT™ Frequency Range (-10dB) 60Hz - 24kHz High Frequency 19mm (0.75") System Sensitivity (1W @1m) 91dB (1W = 2.45V for 6 Ohms) Physical Nominal Coverage Angle 90 degrees conical...
  • Page 15 CVS8 TECHNICAL SPECIFICATIONS Transducers System CVS8 Low Frequency Coaxial Frequency Response (-3dB) 79Hz - 21kHz 200 mm (8.00") mineral loaded cone material Frequency Range (-10dB) 60Hz - 24kHz High Frequency 19mm (0.75") System Sensitivity (1W @1m) 93dB (1W = 2.45V for 6 Ohms) Physical Nominal Coverage Angle 90 degrees conical...

  • Page 16: Warranty

    Claims will not be considered if the serial number has been altered or removed. Work under warranty should only be carried out by a Tannoy Professional dealer or service agent. This warranty in no way affects your statutory rights. For further information please contact your dealer or distributor in your country.

  • Page 17: Declaration Of Conformity

    12. DECLARATION OF CONFORMITY: The following apparatus is/are manufactured in China for Tannoy Ltd of Rosehall Industrial estate, Coatbridge, Scotland, ML5 4TF and conform(s) to the protection requirements of the European Electromagnetic Compatibility Standards and Directives relevant to Domestic Electrical Equipment. The apparatus is designed...
  • Page 18 Tannoy has a policy of continuous improvement and this specification sheet provides the latest information at the time of printing. All specifications may be subject to further change. Please contact the Tannoy website for the latest information.
