Tannoy CVS4 User Manual

CVS4
UL-1480,
UL-2043

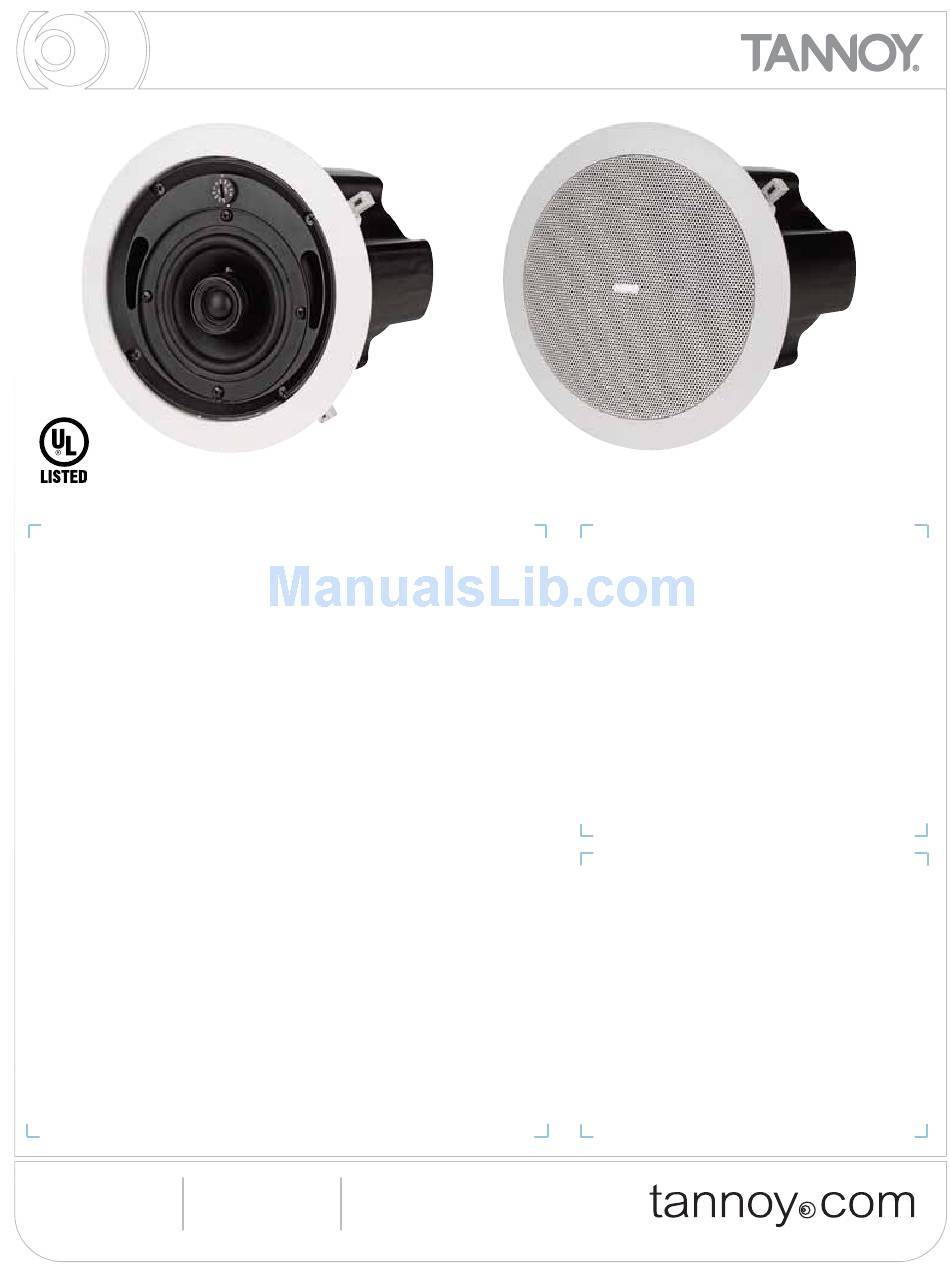

Product Description
The Tannoy CVS4 is a full bandwidth ceiling speaker system comprising a 100mm (4.00")
mid bass driver with a coaxially mounted 19mm (0.75") high frequency section mounted in
a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant
UL94V-0 ABS material.
The mineral loaded polypropylene cone material and nitrile rubber surround enhance
durability and long-term reliability. This compact unit is specifically designed for all
applications requiring the combination of excellent sonic quality for music and speech
reinforcement and exceptional reliability.
The CVS4 is equipped with a low insertion loss 30W line transformer easily configurable to
the following settings via front baffle mounted rotary tapping switch:
70V systems: 30W / 15W / 7.5W / 3.75W / OFF & low Impedance operation
100V systems: 30W / 15W / 7.5W / OFF & low Impedance operation
The CVS4 is supplied with an integral zinc-plated steel back can, with recessed termination
box, to satisfy the vast majority of installation application requirements. The removable
locking connector has screw terminals for secure wire termination and "loop through"
facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable
or conduit. Security toggle clamps make for quick and easy installation, while two tile
support rails and one C-ring are also included in the package. A plaster (mud) ring is
available as an optional accessory.
Tannoy United Kingdom T: 00 44 (0) 1236 420199
Tannoy Deutschland T: 00 49 (180) 1111 881
Tannoy France T: 00 33 (0) 1 7036 7473
TC|Group Americas T: 00 1 (519) 745 1158
E: enquiries@tannoy.com
E: anfragen@tannoy.com
E: ventes@tannoy.com
E: info@tcgroup-americas.com
Features
• Coaxially mounted 100mm (4.00") mineral loaded
woofer with rubber surround and 19mm (0.75") soft
dome diffraction loaded tweeter.
• High power & high sensitivity with extended frequency
response and very low distortion
• Wide, controlled constant directivity dispertion for
optimum coverage.
• UV/weather resistant UL94V-0 ABS front baffle
• Easily accessible tapping switch on front baffle.
• Low insertion loss 30W line transformer
• Ferrofluid cooled neodymium HF
• Packaged with tile rails and C-ring for quick & easy
installation and simple stocking logistics
Applications
• Multi-zone foreground music & paging systems
• Boardrooms & offices
• Business music systems
• Airports, convention centres, hotels
• Reception / waiting rooms
• Houses of worship
• Retail outlets / shopping malls
• Lounges / bars
• Cruise ships
• Courtrooms
CVS4 data file // issue 1.09 // 18.01.10
