Summary of Contents for Tannoy CMS 1201DCT

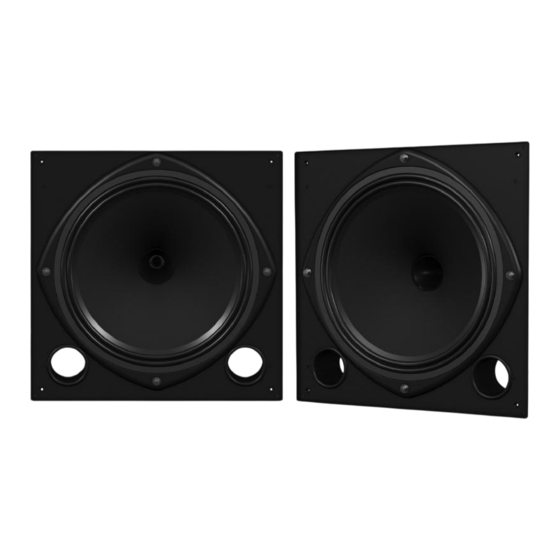

- Page 1 Quick Start Guide CMS 1201DCT 12" Full Range Ceiling Loudspeaker with Dual Concentric Driver and Transformer for Installation Applications CMS 1201DC 12" Full Range Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications V 3.0...
- Page 2 Midas, Klark Teknik, Lab Gruppen, by qualified personnel. or table specified by the Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, manufacturer, or sold with This symbol, wherever it appears, Behringer, Bugera, Oberheim, Auratone, Aston the apparatus. When a cart alerts you to the presence of uninsulated...
-
Page 3: Product Overview
Gracias por adquirir este producto Tannoy. El CMS 1201DC es un potente dispositivo de altavoz de techo de gran formato de última generación concebido, diseñado y construido para complementar la gama CMS líder en su clase de Tannoy. De los pioneros de la fuente puntual y los altavoces de techo de gran formato, el CMS 1201DC está... - Page 4 CMS 1201DCT/1201DC Installation Guide Back-can The custom engineered powder coated steel back-can has been designed to cater for all conceivable installation possibilities making the CMS 1201DC extremely versatile. Internally dampened with 11 mm (0.43") OSB2 board, the addition of the back-can provides exceptional low frequency performance.
- Page 5 Quick Start Guide Flying using Eyebolts WARNING: As the legal requirements for flying change fom country to country, please consult your local safety standards office befoe installing any product. We also recommend that you thoroughly check any laws and bylaws prior to commencing work.
- Page 6 Wiring and Setting Up The CMS 1201 is available in both a standard low-impedance variant (CMS 1201DC) and a low insertion loss 60 W line transformer-equipped version (CMS 1201DCT) for use on 70 V or 100 V distributed lines. The following tappings are configurable on the transformer befoe screwing driver assembly into the back can: 70 V systems: 60 W / 30 W / 15 W / 7.5 W / OFF...
- Page 7 Quick Start Guide Dimensions 588.2 457.0 [23.16"] [17.99"] 24.6 100.0 100.0 [0.97"] [3.94"] [3.94"] 302.6 315.0 [11.91"] [12.40"] 15.3 [0.60"] 516.0 725.0 [20.31"] [28.54"] 60.0 [2.36"] 432.0 [17.01"] 432.0 [17.01"]...
-
Page 8: Specifications
Recommended Amplifier Power 400 W @ 8 Ohms Nominal Impedance 8 Ohms Transformer Taps (CMS 1201DCt only) 70 V 60 W / 30 W / 15 W / 7.5 W / OFF 100 V 60 W / 30 W / 15 W / OFF... - Page 9 Quick Start Guide Other important information Outras Informações Important information Informations importantes Importantes 1. Register online. Please register your new 1. Enregistrez-vous en ligne. Prenez le 1. Registre-se online. Por favor, registre seu Music Tribe equipment right after you purchase it by temps d’enregistrer votre produit Music Tribe aussi vite novo equipamento Music Tribe logo após a compra visiting musictribe.com.
- Page 10 Quick Start Guide Hereby, Music Tribe declares that this product is in compliance with Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC, and this passive product is not applicable to EMC Directive 2014/30/EU, LV Directive 2014/35/EU. Full text of EU DoC is available at https://community.musictribe.com/ EU Representative: Music Tribe Brands DK A/S Address: Ib Spang Olsens Gade 17, DK - 8200 Aarhus N, Denmark...
