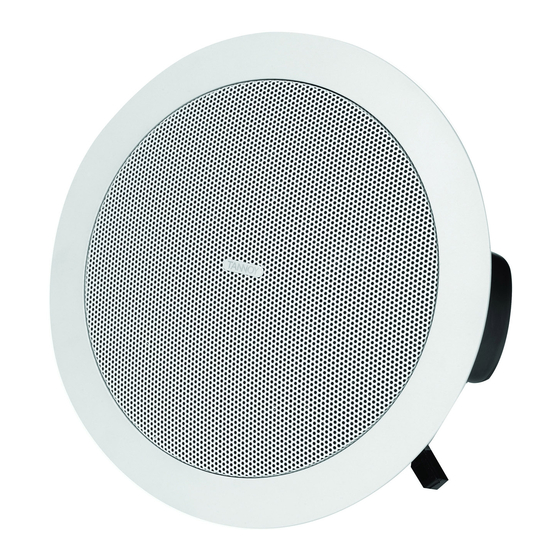

Tannoy CVS 4 Installation Manual
Hide thumbs
Also See for CVS 4:
- Specifications (8 pages) ,
- Quick start manual (44 pages) ,
- Installation manual (19 pages)
Table of Contents
Advertisement
Tannoy has a policy of continuous improvement and this specification sheet provides the latest information at the time of printing.
All specifications may be subject to further change. Please contact the Tannoy website for the latest information.
Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com
Tannoy North America
T: 00 1 (519) 745 1158
Tannoy Deutschland
T: 00 49 (180) 1111 881
Tannoy France
T: 00 33 (0)1 7036 7473
Tannoy adopts a policy of continuous improvement and product specification is subject to change.
E: inquiries@tannoyna.com
E: info@tannoy.com
E: ventes@tannoy.com
I N S T A L L A T I O N
CVS 4
CVS 4 TEMPLATE CUTOUT SIZE: 180mm
CVS 6 TEMPLATE CUTOUT SIZE: 250mm
M A N U A L
CVS 6
Advertisement
Table of Contents
Related Manuals for Tannoy CVS 4
Summary of Contents for Tannoy CVS 4
- Page 1 CVS 4 CVS 6 Tannoy has a policy of continuous improvement and this specification sheet provides the latest information at the time of printing. All specifications may be subject to further change. Please contact the Tannoy website for the latest information.
-
Page 2: Table Of Contents
CVS 4 DIMENSIONS Recommended torque setting: 1.5Nm CVS 6 DIMENSIONS Tannoy will not be held responsible for any damages caused by the improper installation of these TECHNICAL SPECIFICATIONS loudspeakers. PAINTING Electrical Safety Notice: to comply with the standard UL1480, metal-clad flexible conduit (BX) is required for connection to the terminal block for proper earth grounding. -
Page 3: Product Feature Identification
4. PRODUCT FEATURE IDENTIFICATION: 5. ACCESSORIES: CVS 4 Standard Accessories C-Ring Tile bridge kit Note: A tile bridge kit must always be used when installing into suspended ceiling tiles Safety Tab Tuning Ports Rotary Switch Conduit/Cable Clamp Grille Cut-out template... -
Page 4: Mechanical Installation Guide For Suspended Ceilings
Slide the speaker assembly through the hole and turn the screws to extend the mounting wings. Tighten the screws until a firm grip is achieved. If using a power driver, Tannoy recommends a torque setting of 1.5Nm. DO NOT OVERTIGHTEN! Slide the speaker assembly through the hole and turn the screws on the front of the speaker to extend the mounting wings. -
Page 5: Mechanical Installation Instructions For Optional Plaster Ring
7. WIRING AND SETTING UP: An optional plaster (mud) ring bracket is available from Tannoy. This bracket is designed to be pre-installed into newly Open the wiring cover at the back of the speaker can to access the Euro type connector constructed, non-suspended ceilings. -
Page 6: Cvs 4 Dimensions
8.1 CVS 4 DIMENSIONS: 8.2 CVS 6 DIMENSIONS: CVS 4 TEMPLATE CUTOUT SIZE: 180mm CVS 6 TEMPLATE CUTOUT SIZE: 250mm 214.9 202.5 246.5 258.5 [8.46"] [7.97"] [9.70"] [10.18"] 14.7 15.9 [0.58"] [0.63"] ø279.6 ø244.6 [11.01"] [9.63"] ø174.8 ø213.0 [8.39"] [6.88"]... -
Page 7: Technical Specifications
CVS4 CVS6 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Transducers Transducers System CVS4 System CVS6 Low Frequency 100mm (4.00") Mineral Loaded Low Frequency 150mm (6.00") Mineral Loaded Frequency Response (-3dB) 85Hz - 19kHz Frequency Response (-3dB) 79Hz - 21kHz polypropylene ICT™ High Frequency 19mm (0.75") Frequency Range (-10dB) 77Hz - 22kHz... -
Page 8: Painting
Details of the Apparatus: Tannoy Contractor Loudspeaker number has been altered or removed. Work under warranty should only be carried out by a Tannoy Professional dealer or service agent. This warranty in no way affects your statutory rights. For further information please contact your dealer or distributor in your country.
