Tannoy CVS 8 Installation Manual

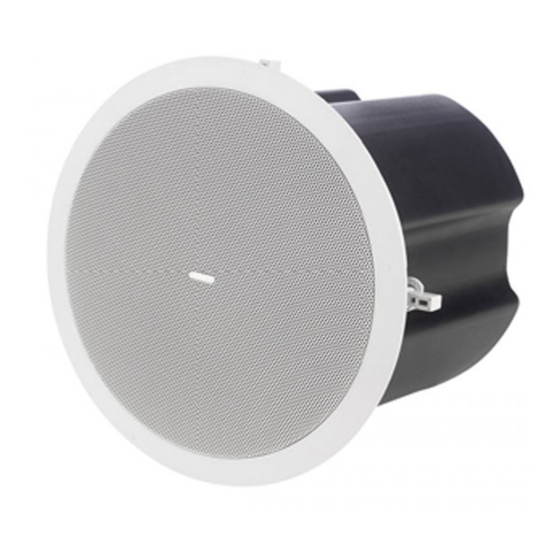

Ceiling loudspeaker
Hide thumbs Also See for CVS 8:
Table of Contents

Advertisement

Quick Links

Enlarged version
I N S T A L L A T I O N
M A N U A L
CVS 4
CVS 6
CVS 8
Tannoy has a policy of continuous improvement and this specification sheet provides the latest information at the time of printing.
All specifications may be subject to further change. Please contact the Tannoy website for the latest information.
CVS 4 TEMPLATE CUTOUT SIZE: 180mm
CVS 6 TEMPLATE CUTOUT SIZE: 250mm
A
T
CVS 8 TEMPLATE CUTOUT SIZE: 320mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVS 8 and is the answer not in the manual?

Questions and answers

Related Manuals for Tannoy CVS 8

Summary of Contents for Tannoy CVS 8

  • Page 1 CVS 6 CVS 8 Tannoy has a policy of continuous improvement and this specification sheet provides the latest information at the time of printing. All specifications may be subject to further change. Please contact the Tannoy website for the latest information.

  • Page 2: Safety Notices

    CVS 4 DIMENSIONS Recommended torque setting: 1.5Nm CVS 6 DIMENSIONS Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers. CVS 8 DIMENSIONS Electrical Safety Notice: to comply with the standard UL1480 , metal-clad flexible conduit (BX) is required for connection to the terminal block for proper earth grounding.

  • Page 3: Product Feature Identification

    Mounting Wings CVS 6 Safety Tab Screws for mounting wings Conduit/Cable Clamp Tuning Ports Paint Mask Rotary Switch Mounting Wings CVS 8 Safety Tab Rotary Switch Optional Accessories Conduit/Cable Clamp Plaster (Mud) Ring Tuning Ports Screws for mounting wings Mounting Wings...

  • Page 4: Mechanical Installation Guide For Suspended Ceilings

    Slide the speaker assembly through the hole and turn the screws to extend the mounting wings. Tighten the screws until a firm grip is achieved. If using a power driver, Tannoy recommends a torque setting of 1.5Nm. DO NOT OVERTIGHTEN! Slide the speaker assembly through the hole and turn the screws on the front of the speaker to extend the mounting wings.

  • Page 5: Mechanical Installation Instructions For Optional Plaster Ring

    7. WIRING AND SETTING UP: An optional plaster (mud) ring bracket is available from Tannoy. This bracket is designed to be pre-installed into newly Open the wiring cover at the back of the speaker can to access the Euro type connector constructed, non-suspended ceilings.

  • Page 6: Cvs 4 Dimensions

    8.1 CVS 4 DIMENSIONS: 8.2 CVS 6 DIMENSIONS: CVS 4 TEMPLATE CUTOUT SIZE: 180mm CVS 6 TEMPLATE CUTOUT SIZE: 250mm 214.9 202.5 246.5 258.5 [8.46"] [10.18"] [9.70"] [7.97"] 14.7 15.9 [0.63"] [0.58"] ø279.6 ø244.6 [11.01"] [9.63"] ø213.0 ø174.8 [6.88"] [8.39"]...

  • Page 7: Technical Specifications

    8.3 CVS 8 DIMENSIONS: CVS4 CVS 8 TEMPLATE CUTOUT SIZE: 320mm TECHNICAL SPECIFICATIONS Transducers System CVS4 Low Frequency 100mm (4.00") Mineral Loaded Frequency Response (-3dB) 85Hz - 19kHz High Frequency 19mm (0.75") Frequency Range (-10dB) 77Hz - 22kHz 264.0 251.0 [10.39"]...
  • Page 8 CVS6 CVS8 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Transducers Transducers System CVS6 System CVS8 Low Frequency 150mm (6.00") Mineral Loaded Low Frequency Coaxial Frequency Response (-3dB) 79Hz - 21kHz Frequency Response (-3dB) 79Hz - 21kHz polypropylene ICT™ 200 mm (8.00") mineral loaded cone material Frequency Range (-10dB) 60Hz - 24kHz Frequency Range (-10dB)

  • Page 9: Declaration Of Conformity

    Claims will not be considered if the serial number has been altered or removed. Work under warranty should only be carried out by a Tannoy Professional Details of the Apparatus: Tannoy Contractor Loudspeaker dealer or service agent.
  • Page 10 NOTES NOTES...

This manual is also suitable for:

Cvs 6Cvs 4
