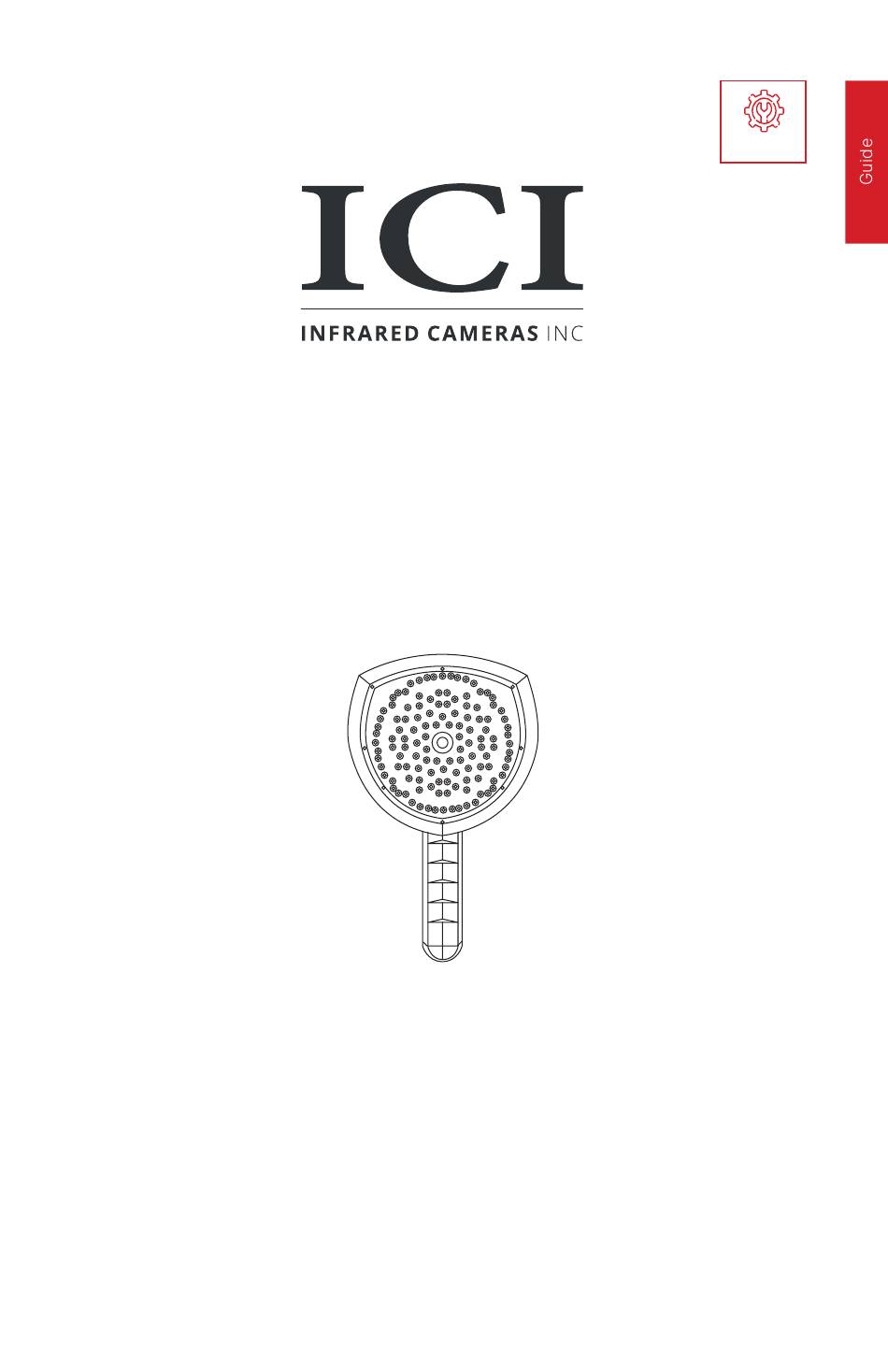

ICI SOUND DETECTAI Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Edit Text
Out
Industry
Ind
SOUND DETECTAI
QUICK START GUIDE
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
Phone: (409) 861-0788
Toll Free: (866) 861-0788
infraredcameras.com
support@infraredcameras.com
We Are IR ™

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOUND DETECTAI and is the answer not in the manual?

Questions and answers

Related Manuals for ICI SOUND DETECTAI

Summary of Contents for ICI SOUND DETECTAI

  • Page 1 Edit Text Industry SOUND DETECTAI QUICK START GUIDE ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 Phone: (409) 861-0788 Toll Free: (866) 861-0788 infraredcameras.com support@infraredcameras.com We Are IR ™...
  • Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
  • Page 3 Package 1 THERE ARE MULTIPLE PACKAGE OPTIONS AVAILABLE. SEE PAGES 5 - 11 FOR INSTRUCTIONS FOR PACKAGE 1. Sound DetectAI device Battery Charger Power Adapter Battery x2 USB Drive ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE CONTINUING.
  • Page 4 Package 2 THERE ARE MULTIPLE PACKAGE OPTIONS AVAILABLE. SEE PAGES 12-16 FOR INSTRUCTIONS FOR PACKAGE 2. Sound DetectAI device Battery cable Battery Pack Power Adapter Power Cord USB Drive ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE CONTINUING.
  • Page 5 THE SETUP INSTRUCTIONS ONLY APPLY TO PACKAGE 1 SEEN ON PAGE 3. Power on device. The Sound DetectAI is used as a handheld device. POWER ON THE DEVICE BY PRESSING THE POWER BUTTON. PRESS THE POWER BUTTON AGAIN TO POWER OFF THE DEVICE.

  • Page 6: Battery Installation

    Battery Installation THE BATTERY CHARGING INSTRUCTION ONLY APPLY TO PACKAGE 1 SEEN ON PAGE 3. MAKE SURE TO HOLD THE CAMERA FIRMLY IN BOTH HANDS WHEN REMOVING OR REPLACING BATTERY OR ATTACHING OR REMOVING THE BATTERY BAY COVER. Hold the camera firmly in both hands Press the grip line firmly placing a thumb on the grip line.
  • Page 7 Keep pressing the grip line and pull Ensure metal contacts are aligned; battery bay cover up and away to then, push battery into battery bay. remove the battery bay cover. DO NOT FORCE THE BATTERY INTO THE BATTERY BAY. IF USER FEELS SIGNIFICANT RESISTANCE REMOVE THE BATTERY AND ENSURE METAL CONTACTS ARE ALIGNED BEFORE TRYING TO PLACE BATTERY INTO THE BATTERY BAY.
  • Page 8 Close gap by releasing the battery bay cover. ENSURE BATTERY COVER IS PROPERLY ATTACHED. IMPROPER ATTACHMENT OF BATTERY COVER MAY EXPOSE THE BATTERY AND INTERNAL ELECTRONICS TO ELEMENTAL DAMAGE.
  • Page 9 Charging Instructions: Battery THE BATTERY CHARGING INSTRUCTIONS ONLY APPLY TO PACKAGE 1 SEEN ON PAGE 3. THE BATTERY CANNOT BE CHARGED INSIDE THE DEVICE. REMOVE THE BATTERY IN ORDER TO CHARGE IT. Plug the power adapter cord into the battery charger Align the battery, and insert the Plug power adapter into a battery into battery charger.
  • Page 10 THE BATTERY CHARGING INSTRUCTIONS ONLY APPLY TO PACKAGE 1 SEEN ON PAGE 3. IT TAKES 4-6 HOURS TO CHARGE AN EMPTY BATTERY TO FULL. WHEN THE STATUS LED OF THE CHARGER IS RED THE BATTERY IS BEING CHARGED. THE CHARGER LED TURNS GREEN WHEN CHARGING IS COMPLETE.
  • Page 11 Memory THE MEMORY INSTRUCTIONS APPLY TO BOTH PACKAGE 1 AND PACKAGE 2; SEE PAGES 3-4 FOR PACKAGES. Align the USB drive and insert it into the top of the device. DO NOT FORCE THE USB DRIVE INTO THE SLOT. THE SIDE OF THE CARD WITH CONTACT PINS MUST BE INSERTED FIRST.
  • Page 12 THE SETUP INSTRUCTIONS ONLY APPLY TO PACKAGE 2 SEEN ON PAGE 4. Align the battery cable; then, plug the The Sound DetectAI is used battery cable into the battery pack. as a handheld device. THE ACOUSTIC IMAGER NEEDS SUFFICIENT WARM-UP TIME FOR THE MOST ACCURATE MEASUREMENTS AND BEST IMAGE QUALITY.
  • Page 13 Align the red orientation marking on the battery cable to the red marking on the device; then, plug the battery cable into the device until a click is heard. POWER IS SUPPLIED TO THE DEVICE THE MOMENT IT IS PLUGGED INTO THE BATTERY PACK.
  • Page 14 Charging Instructions: Battery Pack THE BATTERY PACK INSTRUCTIONS ONLY APPLY TO PACKAGE 2 SEEN ON PAGE 4. Plug the power cord into the Plug the jack end of the power power adapter. adapter into the battery pack. Plug power adapter into a 110/120V electrical outlet.
  • Page 15 THE BATTERY PACK INSTRUCTIONS ONLY APPLY TO PACKAGE 2 SEEN ON PAGE 4. IT TAKES 4-6 HOURS TO CHARGE AN EMPTY BATTERY PACK TO FULL. WHEN THE STATUS LED OF THE CHARGER IS RED OR YELLOW THE BATTERY PACK IS BEING CHARGED. WHEN THE STATUS LED OF THE BATTERY PACK IS GREEN THE CHARGE IS COMPLETE.
  • Page 16 Memory THE MEMORY INSTRUCTIONS APPLY TO BOTH PACKAGE 1 AND PACKAGE 2; SEE PAGES 3-4 FOR PACKAGES. Align the USB drive and insert it into the top of the device. DO NOT FORCE THE USB DRIVE INTO THE SLOT. THE SIDE OF THE CARD WITH CONTACT PINS MUST BE INSERTED FIRST.
  • Page 17 Website: www.infraredcameras.com You may reach a representative by phone or email Mon – Fri 8:00AM - 5:00PM CST. ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
