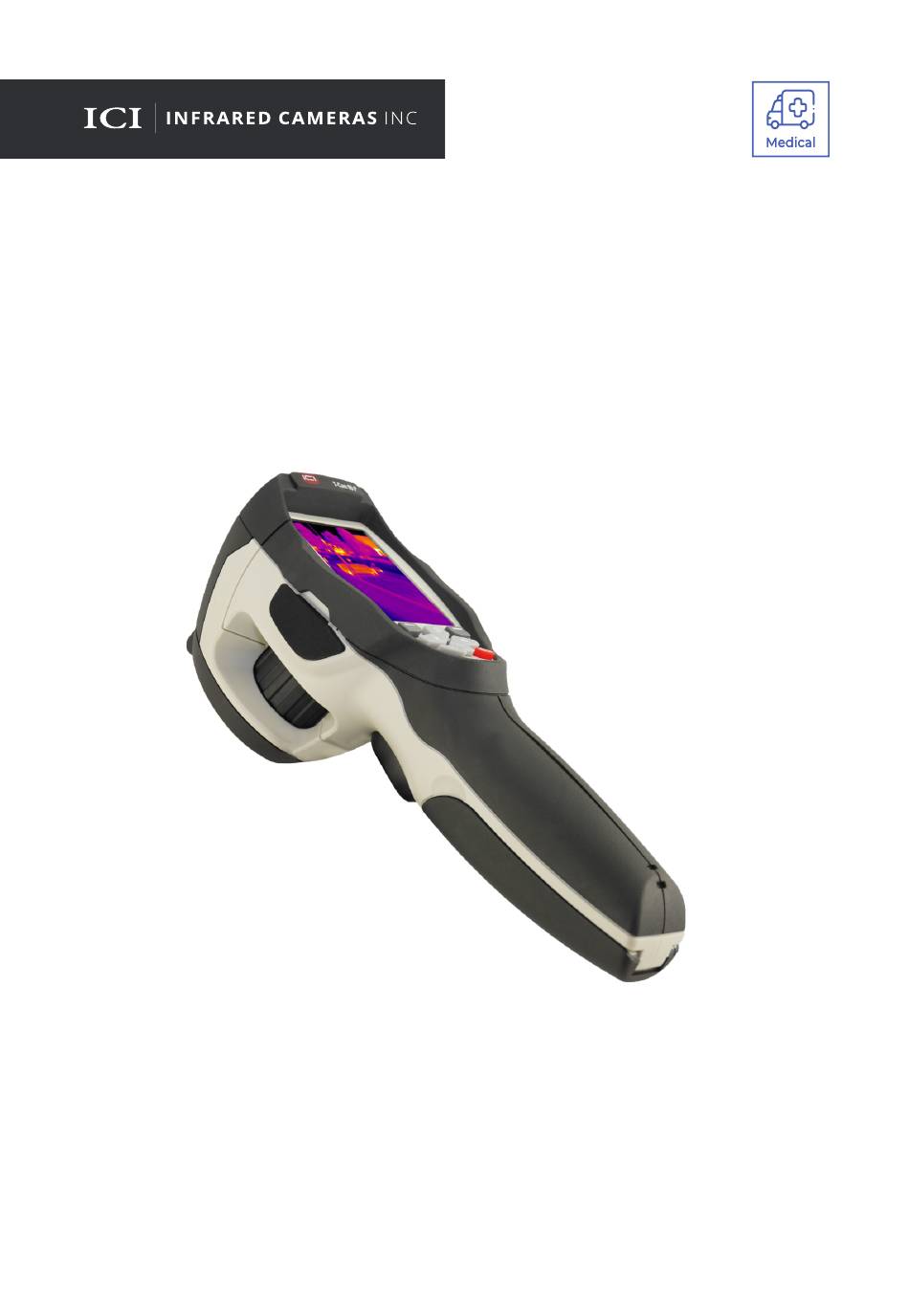

T-CAM 160 XT P SERIES IR CAMERA
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
2105 W. Cardinal Dr. Beaumont, TX 77705 | Phone: (409) 861-0788 | Toll Free: (866) 861-0788
infraredcameras.com | sales@infraredcameras.com | We Are IR ™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-CAM 160 XT P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICI T-CAM 160 XT P Series

Summary of Contents for ICI T-CAM 160 XT P Series

  • Page 1 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON. IMPORTANT SAFETY INFORMATION INSIDE. 2105 W. Cardinal Dr. Beaumont, TX 77705 | Phone: (409) 861-0788 | Toll Free: (866) 861-0788 infraredcameras.com | sales@infraredcameras.com | We Are IR ™...
  • Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

  • Page 3: Table Of Contents

    T-CAM 160 XT P SERIES IR CAMERA USER MANUAL Contents General Description Safety Information Features Intended Use Technical Specifications, Accessories, and Documents Structure Operation Instructions Menus PC Software 10. Cleaning and Maintenance 11. Troubleshooting 12. Site and System Validation Checklist...

  • Page 4: General Description

    T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 1. General Description The T-Cam 160 XT P Series IR Camera is a handheld device designed for surface temperature measurement of infants and adults without contacting the human body. Thermal and visual images are displayed on the LCD and can be saved to a Micro SD Memory card.

  • Page 5: Features

    Customizable Emissivity + Presets • Withstands Light Weather 4. Intended Use The T-Cam 160 XT P Series IR Camera is a handheld device designed for surface temperature measurement of infants and adults without contacting the human body. 4-1. Normal Temperatures According to Age The temperature of the human body varies throughout the day.

  • Page 6: Structure

    T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 6. Structure 4-1 Appearance and Definitions of Interface Camera lens cover Lens focus adjuster Trigger LCD Display Buttons Menu/Select Button (Left) Lock/Close Button (Right) Up/Zoom out Button Down/Zoom in Button Right/Light Button...
  • Page 7 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL LED Light Visual Camera Laser Pointer Infrared Camera Lens Hole for tripod insertion Charge light Adapter/Charger Input Terminal Audio/Microphone HDMI Output USB Cable Connection...

  • Page 8: Operation Instructions

    T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 7. Operation Instructions 7-1 How to Charge the Battery Before using the imager for the first time, charge the battery for a minimum of 1.5 hours. The battery status is shown by the indicator in the upper-left corner of the screen.
  • Page 9 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 7-4 Lens FOV is the largest area the imager can see at a set distance. This table lists the horizontal FOV, vertical FOV and IFOV for standard lens. Focal Length Horizontal FOV...
  • Page 10 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 7-5 Focus To adjust the focus, turn the lens focus adjuster clockwise or counter-clockwise. When the target comes into focus, it shows a sharper image. When the target moves out of focus, the thermal image becomes blurry.
  • Page 11 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 7-9 Laser • In desktop view. Press the left button and hold about 2 seconds, the laser will turn on. • In desktop view. Press the left button and hold about 2 seconds again, the laser will turn off.
  • Page 12 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL The following table gives typical emissivity of important materials: Material Emissivity Water 0.96 Stainless steel 0.14 Aluminum plate 0.09 Asphalt 0.96 Concrete 0.97 Cast iron 0.81 Rubber 0.95 Wood 0.85 Brick 0.75...

  • Page 13: Menus

    T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8. Menus 8-1 Main Menu The Main Menu contains six items: Measure, Emiss, Image, Palette, Range, and Settings. Measure: sets the calculation and display of radiometric temperature measurement data related to the thermal images.
  • Page 14 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-2 Image Mode The imager has 3 kinds of image modes for display. IR, Visible, IR_Mix_VIS. IR: displays only infrared image; Visible: displays only visible image; IR_Mix_VIS: display a fusion image of infrared and visible images.
  • Page 15 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-4 Image Adjustment There are two modes for image adjustment, Auto and Manual. Press the right function button to change modes. means Manual and means Auto. Auto: level and span are decided automatically by the minimum and maximum temperatures detected.
  • Page 16 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-6 Open and Close Press the “Select” to select Spot, Hot, or Cold to open the corresponding measurement. The icon will open to the corresponding point measurement. The icon will close the corresponding point measurement.
  • Page 17 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-10 Temperature Ranges The default temperature measurement range is “0 °C ~ 50 °C”. There may be other options, but these are not suited for skin temperature measurement. In the main menu, press the “up” or “down” button to highlight “Range”.
  • Page 18 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-12 Languages In the Settings sub-menu, press the “up” or “down” button to highlight “Language” . Press the “select” button to open language sub-menu. Press the “up” , “down” , “left” and “right” button to highlight the correct language.
  • Page 19 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-14 Factory Settings In the Settings sub-menu, press the “up” or “down” button to highlight “Factory Set”. Press the “select” button to open the “Factory Set” sub-menu. Press the “OK” to restore factory settings. Select “Cancel” to exit without changes.
  • Page 20 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-15 Set time In the Settings sub-menu, press the “up” or “down” button to highlight “Set time”. Press the “select” button to open the “Set time” sub-menu. Press the “Left” and “Right” button to highlight the correct item .
  • Page 21 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-18 Power off In the Settings sub-menu, press the “up” or “down” button to highlight “Auto power off”. Press the “select” button to open the “Auto power off” sub-menu. Press the “up” or “down” button to highlight the correct item.
  • Page 22 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-20 Camera Menu The imager has photo and video functions. In photo mode, the imager can save thousands of images. Every image is 1280 x 960, and saves in a .jpg format. Infrared data and visible data is stored in an image.
  • Page 23 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-23 Files Browser In desktop view. Press the “Browse” button. The imager will display images and videos saved to the SD Memory Card. 8-24 Open an Image Press the “up”, “down”, “left”, and “right” button to highlight an image.
  • Page 24 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-25 Play a Video Press the “up”, “down”, “left” and “right” button to highlight a video. Press the “Open” key to enter the video player interface. To hear voices, insert earphones with a microphone.
  • Page 25 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 8-27 USB Mode Connect the USB cable to device. A menu opens with two options: Storage: Browse files stored on the SD card on the user’s computer. If Storage mode is selected, the display will show a picture as follow: PC Camera: The imager becomes a USB device for the user’s computer.

  • Page 26: Pc Software

    When finished, switch off the external device and disconnect the HDMI video cable from the thermal imager. 9. PC Software ICI’s PC Software allows audio annotations and commentary to be reviewed on a PC. 9-1 System Requirements • Operating system: Window XP or higher •...

  • Page 27: Cleaning And Maintenance

    T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 10. Cleaning and Maintenance 10-1 Cleaning the Germanium Lens Do not use cleaning products that corrode or scratch optical glass components. The germanium window surface is coated with anti-reflection coating. Dust, grease, and fingerprints will produce harmful substances and lead to a decline in performance, or cause scratches.

  • Page 28: Site And System Validation Checklist

    T-CAM 160 XT P SERIES IR CAMERA USER MANUAL Site and System Setup Validation Checklist Site: ______________________________ System:___________________________ Contact Person:___________________ Date:________ **All those tasked with the initial setup of the temperature screening equipment must be present during this training. ***This portion of the validation requires a live video feed with the instructors.
  • Page 29 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL □ Ensure the line of sight from the person being screened to the camera is never blocked by another individual entering or leaving the point of measurement □ The secondary screening area should be setup near the screening area...
  • Page 30 T-CAM 160 XT P SERIES IR CAMERA USER MANUAL 12-8 Final Step Final validation is dependent upon a signed copy of this checklist from each person responsible for each site. Upon completion please sign below: ICI representative: Company representative: ____________________________...

  • Page 31: About Ici

    You can see our products and services used in industrial, commercial, and government applications worldwide. Additionally, our ICI 7320 was awarded “Product of the Month” by NASA*. Originally named Texas Infrared (still DBA), Infrared Cameras Inc. has been in business since March, 1995.
