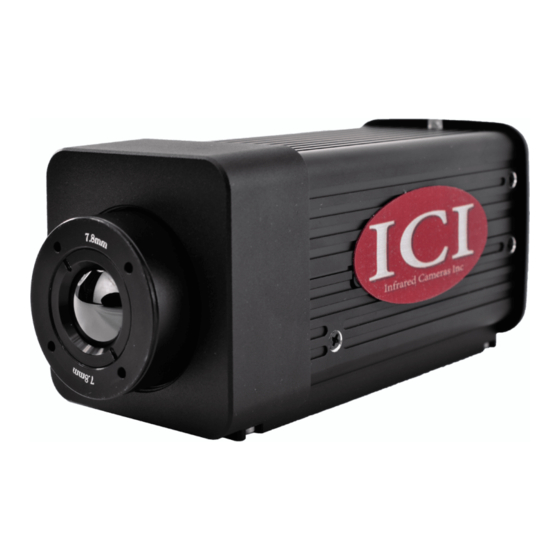

FMX 400 P SERIES IR CAMERA
USER MANUAL
PLEASE READ THIS MANUAL BEFORE SWITCHING THE UNIT ON.
IMPORTANT SAFETY INFORMATION INSIDE.
THIS DEVICE IS INTENDED FOR ADJUNCTIVE USE.
NOT MEANT FOR STANDALONE DIAGNOSTICS.
ICI cameras fall under US Federal Law and Export Control.
2105 W. Cardinal Dr. Beaumont, TX 77705
For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICI FMX 400 P Series
Summary of Contents for ICI FMX 400 P Series
- Page 1 THIS DEVICE IS INTENDED FOR ADJUNCTIVE USE. NOT MEANT FOR STANDALONE DIAGNOSTICS. ICI cameras fall under US Federal Law and Export Control. 2105 W. Cardinal Dr. Beaumont, TX 77705 For more information, contact us: (409) 861-0788 | sales@infraredcameras.com | www.infraredcameras.com...
- Page 2 IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 3: Table Of Contents
FMX 400 P SERIES IR CAMERA USER MANUAL Contents General Description Safety Information Intended Use Technical Specifications Structure Package Contents Installation Instructions Computer Setup Cleaning and Maintenance 10. Site and System Validation Checklist Troubleshooting 12. About ICI... -
Page 4: General Description
FMX 400 P SERIES IR CAMERA USER MANUAL 1. General Description FMX 400 Series IR cameras are specially designed to take the body temperature of a person and to report the total number of persons scanned. The system has been widely applied for inspection services, and is available for adjunctive use in: hospitals, and sub- acute healthcare settings public areas, i.e. -
Page 5: Technical Specifications
FMX 400 P SERIES IR CAMERA USER MANUAL 4. Technical Specifications Detector Array UFPA Pixel Pitch 17 μm 47° x 35.6° Measurement Distance Lens dependent Pixel Resolution 384 x 288 Spectral Band 8 μm to 14 μm Thermal Sensitivity (NETD) <... -
Page 6: Structure
FMX 400 P SERIES IR CAMERA USER MANUAL 5. Structure 5-1 Appearance 5-2 Definitions of Housing Interface Coaxial plug interface Analog I/O - reserved RJ-45 Internet access... -
Page 7: Package Contents
FMX 400 P SERIES IR CAMERA USER MANUAL 6. Package Contents Temperature Reference AC Power Cord FMX Series IR Camera Ethernet Cable Power Adapter Software USB Drive Coaxial Cable ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE PRESENT BEFORE BEGINNING INSTALLATION... -
Page 8: Installation Instructions
FMX 400 P SERIES IR CAMERA USER MANUAL 7. Installation Instructions SELECT AN APPROPRIATE AREA FREE OF IMMEDIATE AIRFLOW FROM DOORWAYS AND AIR CONDITIONING/VENTILATION SYSTEMS. THE SELECTED AREA SHOULD HAVE A STABLE AMBIENT TEMPERATURE BETWEEN 20 °C AND 24 °C AND RELATIVE HUMIDITY RANGE FROM 10% TO 50%. - Page 9 FMX 400 P SERIES IR CAMERA USER MANUAL Plug power cord into a 110/120V Mount the FMX Series IR Camera to a electrical outlet. tripod using the ¼-20 mount. MAKE SURE TRIPODS DO NOT BLOCK THE DIRECT PATH OF PERSON(S) TO BE IMAGED TO ENSURE THE EQUIPMENT WILL NOT BE MOVED OR KNOCKED DOWN.
- Page 10 FMX 400 P SERIES IR CAMERA USER MANUAL ENSURE THE CAMERA LENS AND TEMPERATURE REFERENCE SOURCE ARE FACING EACH OTHER ON PARALLEL PLANES. MAKE SURE CAMERA TARGET AREA IS FACING A NON-REFLECTIVE BACKGROUND. Plug Ethernet cable into the Ethernet port Plug the other end of the Ethernet cable of the FMX Series IR Camera.
- Page 11 FMX 400 P SERIES IR CAMERA USER MANUAL Plug power adapter into a 110/120V Power on Devices. electrical outlet. ALLOW AT LEAST 45 MINUTES FOR THE TEMPERATURE REFERENCE SOURCE TO WARM UP. THIS WILL PROVIDE THE MOST ACCURATE SKIN TEMPERATURE MEASUREMENTS.
- Page 12 FMX 400 P SERIES IR CAMERA USER MANUAL CRITICAL INFORMATION • The technology should be used to measure only one subject’s temperature at a time. • Measurements should not be solely, or primarily, relied upon to diagnose or exclude a diagnosis of any disease.
-
Page 13: Computer Setup
FMX 400 P SERIES IR CAMERA USER MANUAL 8. Computer Setup 8-1 IP Address Configuration The FMX 400 comes configured with static IP address for the infrared camera. The infrared camera lies at 192.168.1.123. Connecting the computer requires setting the IPv4 settings of the Ethernet port to a static IP address in the same “Class C.”... -
Page 14: Cleaning And Maintenance
FMX 400 P SERIES IR CAMERA USER MANUAL 8-2 IR Flash Skin Temperature Monitor Software (IR Flash STM) Software arrives installed on computers and tablets purchased from ICI as complete systems and it will launch automatically on startup. A copy of the software is provided on the Software USB Drive. -
Page 15: Site And System Validation Checklist
FMX 400 P SERIES IR CAMERA USER MANUAL Site and System Setup Validation Checklist Site: _______________________________ System: ___________________________ Contact Person: __________________ Date: ______________________________ **All those tasked with the initial setup of the temperature screening equipment must be present during this training. - Page 16 FMX 400 P SERIES IR CAMERA USER MANUAL 10-3 The Traffic Flow □ Establish a guided pathway from the entrance to the screening area □ Design this pathway so there is an equilibration time □ No restrooms on ingress pathway □...
- Page 17 FMX 400 P SERIES IR CAMERA USER MANUAL □ Height of camera □ Average male 70 ± 4 inches; Average female 65 ± 4 inches □ 5’ 4 ” – 5’8” will image 4’8” to 6’ 4 ” individual □...
-
Page 18: Troubleshooting
FMX 400 P SERIES IR CAMERA USER MANUAL 11. Troubleshooting 11-1 Camera(s) not showing, camera(s) lagging, or software crashing • Close and reopen software • Reconnect power & Ethernet cables • Ensure that camera has been powered on for a few minutes •... - Page 19 FMX 400 P SERIES IR CAMERA USER MANUAL • Remove masks & glasses • Camera is proper distance from person • Camera is at proper height • Temperature Reference Source in view, perpendicular to camera, but not blocked • Person is looking directly at camera lens, not at an angle •...
-
Page 20: About Ici
You may reach a representative by phone or email Monday – Friday 8:00AM - 5:00PM CST. ICI manufactures complete systems and software. We can provide complete engineering, software, and OEM solutions. Our Fortune 500 clients rely on us for infrared equipment and thermography training (which we offer through the Infrared Training Institute).
