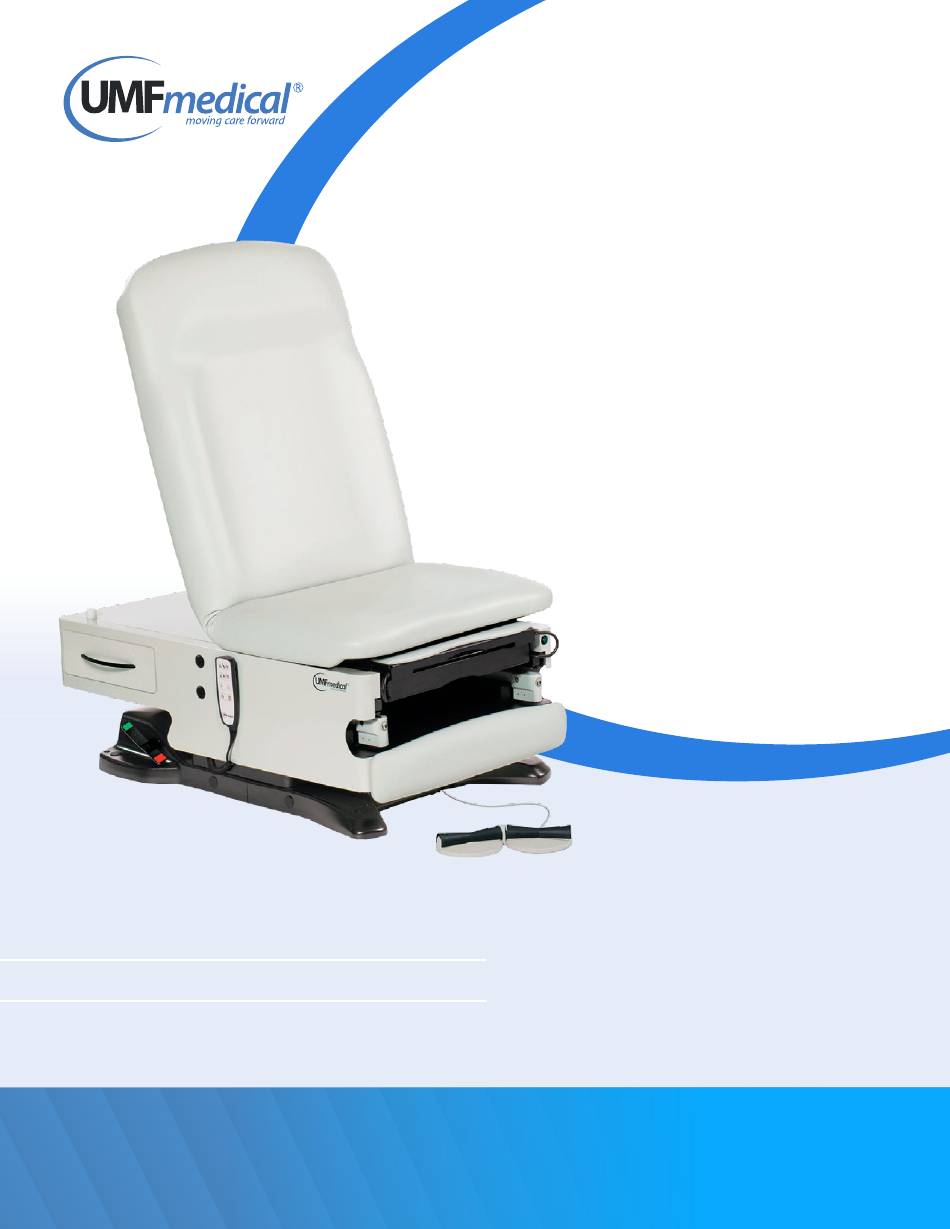

- Page 1 OWNER’S MANUAL 4040-650/4070-650 POWER EXAM TABLE SERIAL NUMBER DATE OF MANUFACTURE MAXIMUM PATIENT WEIGHT 650 LBS / 295 KG Ph: 814.266.8726 | Fax: 814.266.1870 UMFmedical.com 1316 Eisenhower Blvd. Johnstown, PA 15904 customerservice@umfmedical.com...
-
Page 2: Safety Symbols
This manual should remain permanently affixed or near the equipment for convenient reference. UMF Medical reserves the right to make changes to the design of products at any time and without notice. CLASSIFICATIONS Equipment Class – Class I... -
Page 3: Specifications
SPECIFICATIONS (4040-650) Maximum Patient Weight 650 lbs (295 kg) Electrical Supply(Standard) 120V 60HZ 9AMP Electrical Supply(Optional) 220V 60HZ 5AMP Power Cord Length 10 FT (3.0m) Table Weight 400 lbs (181kg) 21.0” Long x 3.5” Diameter Paper Roll (Maximum size) (53.3 cm x 8.9 cm) 19.0”... - Page 4 SPECIFICATIONS (4070-650) Maximum Patient Weight 650 lbs (295 kg) Electrical Supply(Standard) 120V 60HZ 9AMP Electrical Supply(Optional) 220V 60HZ 5AMP Power Cord Length 10 FT (3.0m) Table Weight 400 lbs (181kg) 21.0” Long x 3.5” Diameter Paper Roll (Maximum size) (53.3 cm x 8.9 cm) 19.0”...
-
Page 5: Safety Features
SAFETY FEATURES Patient Safety Table Lockout 4070-650 4040-650 This table is equipped with a safety feature that allows the practitioner to Press & hold STOP 1 beep indicates locked To lock and unlock: deactivate all table functions in order to button for 2 seconds. -
Page 6: Features And Operation
FEATURES AND OPERATION Hand & Foot Control — Table Operation (4040-650) Hand Control Foot Control Home Height Adjustment WARNING: DO NOT USE BACKREST AS A SEAT Backrest Adjustment... - Page 7 FEATURES AND OPERATION Hand & Foot Control — Table Operation (4070-650) TABLE Hand Control Foot Control Home Height Adjustment Back Adjustment (Manual Operation: Depress release handle. Adjust backrest to desired position. Backrest Adjustment Release handle to lock. WARNING: DO NOT USE BACKREST AS A SEAT...
- Page 8 Hand Control — Memory Programming & Special Functions Simultaneous Movement (shown as an example) Memory Positions Stop Control 4040-650 4070-650 — Two programmable positions for storing commonly use table positions. To Program: Move table to desired position for memory storage.
- Page 9 (4070-650:) upholstery slightly until all by squeezing the manual latches align properly. release lever and gently lifting upward. (4040-650:) by using hand or foot control. Step 5: Step 6: Using your index finger, Raise the foot section...
-
Page 10: Storage Drawers
FEATURES AND OPERATION Storage Drawers Side Drawer 24.5” x 12.5” x 3.5” (62cm x 32cm x 9cm) Front Drawer 19.0” x 12.0” x 3.5” (48cm x 30cm x 9cm) Leg Extension & Drip Pan Slide the leg section out. Lift front of the leg pad to disengage from locked position. -
Page 11: Paper Roll Replacement
FEATURES AND OPERATION Paper Roll Replacement Max Roll Size 21” x 3.5” (53cm x 9cm) Slide rod out of brackets, install new roll, and reinstall into brackets Stirrup Positioning & Adjustment Pull the stirrups out and unfold. Lift slightly and move left or right to position. Release stirrup to lock into position. - Page 12 FEATURES AND OPERATION Reversing Side Drawers Step 1: Step 2: Remove side panels. Remove drawer › Extend drawer › Press tabs on both sides › Remove drawer Step 3: Step 4: Slide cages to opposite Align slides and install side of table. drawer on opposite side.
- Page 13 COMMON OPTIONS AND ACCESSORIES Mobile Caster Base (142) Concealed retractable casters can be installed on base to allow for easy table movement for cleaning. Table in Table in UNLOCKED in LOCKED position cleaning position WARNING: TABLE IS NOT TO BE USED FOR PATIENT TRANSPORT. ENSURE WHEELS ARE IN ‘PATIENT READY’ POSITION PRIOR TO A PATIENT ACCESSING TABLE.
- Page 14 COMMON OPTIONS AND ACCESSORIES Hospital Grade Receptacle with Child Safe Cover (852) To access receptacles, insert a screwdriver, key, or other tool into slot on receptacle cover to remove child-proof cover. Replace child-proof cover following use. Option available on the 200 series and standard on the 300 series.
- Page 15 COMMON OPTIONS AND ACCESSORIES Bierhoff Knee Crutch (251-Pair) Extend stirrups to full-extended position with heel stirrup in retracted position. Insert knurled end of knee crutch rod into hole on end of stirrup. Adjust to position and tighten with slide lock. Stainless Steel Irrigation Pan with Spout (822) The stainless steel drain pan is offered without a spout (standard) or with...
-
Page 16: Cable Connection
CABLE CONNECTION ATTENTION: If hand control will be primary control used, UMF Medical recommends the hand control to be plugged into Front the front of the table. Optional port for foot or hand control. Back (Left to Right) Port for foot control. -
Page 17: Equipment Care
WILL NOT OCCUR. Healthcare Facilities for bleach alternative cleaners. Note: Immediately remove any fluid spilled on upholstery surface. Antimicrobial: UMF Medical Upholstery providers outstanding protection in difficult medical and healthcare environments and contains an agent effective against bacterial and fungal microorganisms. -
Page 18: Warranty Information
This warranty does not cover and UMF Medical shall not be expiration of the limited warranty period. -
Page 19: Setup Instructions
SETUP INSTRUCTIONS Models 4040/4070-650-100 (Power100+, Power 100) Models 4040/4070-650-200 & 300 (Power200+, Power 200, ProGlide300+, ProGlide300) To set up your New Power Table: To set up your New Power Table: PLEASE FOLLOW THESE STEPS COMPLETELY to ensure that your table functions properly PLEASE DO NOT PLUG PLEASE FOLLOW THESE STEPS COMPLETELY to ensure TABLE IN UNTIL PRECEDING STEPS ARE COMPLETED.
