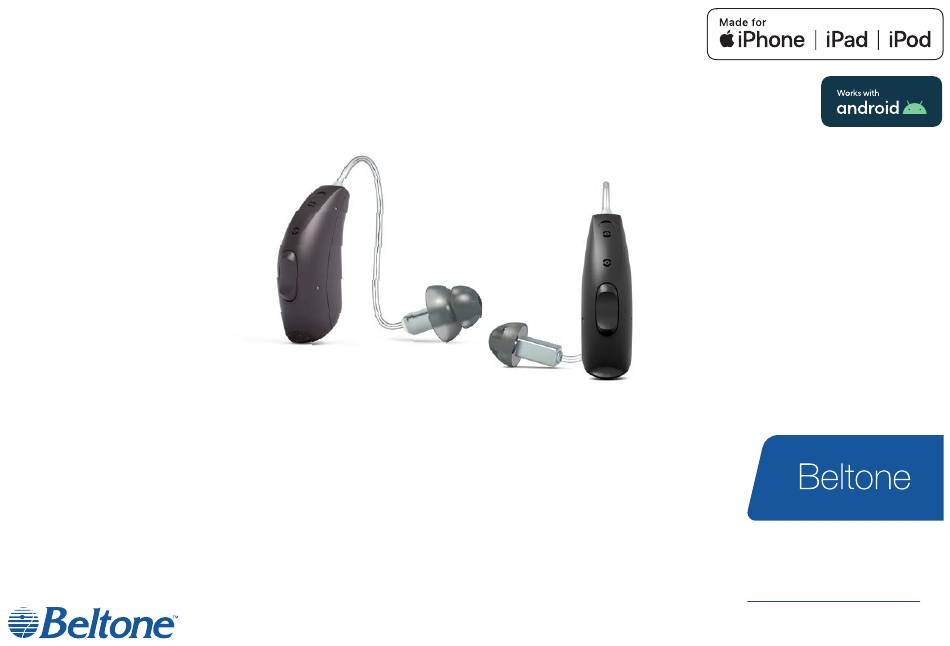

Technical Manual
Beltone BERLIN RIE Platform
Beltone A/S
Global Technical Operations
http://gto.gnresound.com
Lautrupbjerg 7
DK-2750 Ballerup, Denmark

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLY464-DRW and is the answer not in the manual?

Questions and answers

Summary of Contents for Beltone RLY464-DRW

  • Page 1 Technical Manual Beltone BERLIN RIE Platform Beltone A/S Global Technical Operations http://gto.gnresound.com Lautrupbjerg 7 DK-2750 Ballerup, Denmark...
  • Page 2: Table Of Contents

    Doc 0256680 rev L Table of Contents Form-Factor-Matrix & Product Information ..................3-5 Part list..............................6 Part list - prog service modules/ASM FRAME ..................7 Part list - Test equipment ........................8 Part list - HSG parts & replacement packs ..................9 Part list - SF 2 C Rec tubes & domes ....................10 Part list - SF 2 B Rec tubes &...
  • Page 3: Form-Factor-Matrix & Product Information

    Form-Factor-Matrix & Product Information - C5.0 Doc 0256680 rev L Data Sheet Platform BERLIN RIE Product Model Doc No RLY464-DRW Cloud Key (CK) - C5.0 batt 13 zinc air RELY RLY364-DRW 401423000 wireless RLY264-DRW (No MFi) HIs are available with 4 selectable rec power levels: Low (LP), Medium (MP), High (HP) and Ultra (UP). The HI fits the SureFit...
  • Page 4 Form-Factor-Matrix & Product Information - C5.0 Doc 0256680 rev L Data Sheet Platform BERLIN RIE Product Model Doc No Cloud Key (CK) - C5.0 AMZ1764-DRW batt 13 zinc air AMZ964-DRW AMAZE wireless AMZ664-DRW no TC & DAI 400928000 AMZ1764-DRWT Cloud Key (CK) - C5.0 batt 13 zinc air AMAZE AMZ964-DRWT...
  • Page 5 Form-Factor-Matrix & Product Information - C4.5 Doc 0256680 rev L Data Sheet Platform BERLIN RIE Product Model Doc No TRUST 17 TST1764-DRW Cloud Key (CK) - C4.5 batt 13 zinc air TRUST 9 TST964-DRW 400637000 wireless TRUST 6 TST664-DRW LEGEND 17 LND1764-DRW C4.5 Batt size 13 zinc air...
  • Page 6: Part List

    Part List Doc 0256680 rev L Description Part No Description Part No PIN,0.60X6.05 (rec end) 16059700 MANDREL 0490-059 GENERIC BRUSH, BLK 17435000 PIN,0.60X7.80 (close to TGL) 15344400 PIN,0.60X5.45,W/3GROOVES (for batt door) 19069900 PIN REMOVAL TOOL. PACKED 15502500 DAI ADAPTOR 2 (audio shoe w/3pin euro socket) 19901700 KIT,COLOR MARKERS,BT BRIE* 19693500...
  • Page 7: Part List - Prog Service Modules/Asm Frame

    Part List - Programmed Serv Modules/ASM FRAME Doc 0256680 rev L LEGEND Part No AMAZE Part No ASM,FRAME,LND1764-DRW,PROG 19417400 ASM,FRAME,AMZ1764-DRW,PROG 20791800 ASM,FRAME,LND964-DRW,PROG 19417500 ASM,FRAME,AMZ964-DRW,PROG 20791900 ASM,FRAME,LND664-DRW,PROG 19428900 ASM,FRAME,AMZ664-DRW,PROG 20792000 TRUST Part No ASM,FRAME,TST1764-DRW,PROG 20222700 ASM,FRAME,TST964-DRW,PROG 20222800 ASM,FRAME,TST664-DRW,PROG 20222900 Service modules are non serviceable at local site. Instead defective ones must be returned to Global Repair Site Note: S/n label is attached to the service module and the new replacement serv mod is delivered with a label with a new unique s/n.
  • Page 8: Part List - Test Equipment

    Part List - Test Equipment Doc 0256680 rev L Description Part No Description Part No PROG. CABLE EXTENSION, MILANO TEST JIG, BERLIN RIE (to fix HI during final test) 19429000 17517800 (to be used for HI test due to current measurement) FRAME (black frame for ATC4000 sound chamber) 16902800 PROG CABLE R (CS44)
  • Page 9: Part List - Hsg Parts & Replacement Packs

    Part List - HSG Parts & REPL PACKS Doc 0256680 rev L COLOUR TOP HSG ASM BOT HSG BAT DOOR ASM REPL PACKS TST/AMZ/RLY AMZ/RLY AMZ/RLY 19417901 19417701 20223001 19418401 19997901 20790301 19983901 20789501 19417902 19417702 20223002 19418402 19997902 20790302 19983902 20789502 19417904...
  • Page 10: Part List - Sf 2 C Rec Tubes & Domes

    Part List - SUREFIT 2 C Rec Tubes (3 pin) & Domes Doc 0256680 rev L SUREFIT 2 C SUREFIT (SF) - STD, OPEN & CLOSED DOMES Description DOMES Bag (10 pcs) SIZE REC,STD,BAG,10PC 21432300 21641500 21642500 21643500 OPEN,REC,SM,BAG,10PC 21432400 21641600 21642600 21643600...
  • Page 11: Part List - Sf 2 B Rec Tubes & Domes

    Part List - SureFit 2 B Rec Tubes (3 pin) & Domes Doc 0256680 rev L SUREFIT 2 B (SF) SUREFIT (SF) DOMES USED WITH LP / MP REC (1 pc/each blister pack) Size Description (10 pcs) DOME,SF,TULIP,STD 19398500 21305500 21306500 21307500 DOME,SF,OPEN,SM...
  • Page 12: Part List - Surefit 2 B & C Accessories

    Part List - SureFit 2 B & C - Access (for rec tubes w 3 pin conn) Doc 0256680 rev L Description - SUREFIT 2 B Part No Description - SUREFIT 2 C Part No FITTING KIT,REC,SUREFIT 2 B* 20156300 FITTING KIT,REC,SUREFIT 2C* 21759700 FITTING KIT,REC,SF2 B (EMPTY)**...
  • Page 13: Part List - N-Cased Earmould

    Part List - Optional N-Cased Earmould Doc 0256680 rev L TUBE 3 PIN2 TUBE 3 PIN3 Note: ENCASED EM RIE ENCASED EM RIE If the UP rec is to be mounted, the N-Cased earmould must be chosen. Please follow “N-Cased Earmould Process,RIE” SIZE Part No Part No...
  • Page 14: Part List - Custom Insert Option

    Part List - Custom Insert Option Doc 0256680 rev L Description Part No MANDREL,LP REC,NANO 20016400 MANDREL,MP REC,NANO 20016500 MANDREL,HP REC,NANO 20016600 SIL RUBBER,.085 IN,VENT,WHT 12192-006 Note: For custom insert option instead of std rec domes, follow the instr in doc 0280210 RIE CUST INS & HOLLOW CAV,3PIN posted on the GTO website MANDRELS LP REC MP REC...
  • Page 15: Disassemble Procedure

    Disassemble Doc 0256680 rev L Conn lock Conn lock unlocked Locate the connector lock (conn lock is locking the rec) and unlock it by lifting it up Pull out the rec Push out the two pins with a pin removal tool BAT CLICK Pull out the pins by using a Open the bat door and gently pull upwards to separate the top HSG from bot HSG.
  • Page 16: Reassembling

    Reassemble Doc 0256680 rev L Mount batt door and push in the pin to fix it to the module. Make sure the pin is correct in place. Slide the module into the bot HSG and check it is aligned with holes for pins If the conn lock is damaged, mount a new one into the TOP HSG: Pick up a new conn lock.
  • Page 17: Replacing Filter In 3 Pin Receiver Tube

    Replacing Filter in 3 pin Receiver Tube (SF 2 B shown) Doc 0256680 rev L If a dome is mounted, remove it before starting replace the wax guard/filter. Remove the used filter: Carrying box with 8 pcs wax Insert the removal tip of the tool Slowly pull the filter straight out guard tools into the used filter so that the shaft...
  • Page 18: Test Equipment

    Test Equipment Doc 0256680 rev L COUPL MIC,TM-12,MEASURED Batt pill size 13 must be P/n 17517800 Prog cable ext ASM TEST REC UP 3 PIN p/n 18220700 used during test see note on the page “HI Testing” p/n 20011700 p/n 17449400 (not needed when using fitting SW) See more info on page “Part List - Test Equip for 3 Pin Rec Models”...
  • Page 19: Programming Clip Adaptor

    Prog Adaptor Clip Doc 0256680 rev L Clip for prog adaptor L/R It is important to have the programming cable connected before adding the clip to the programming adaptor. Add (used with prog adaptor the clip as shown in the pics. The clip is recommended to be used during test / fitting in order to keep the prog 18041400 only) cable connected during the complete procedure Recommended to be used...
  • Page 20: Adding Asm Test Rec To Fixture

    Prepare for HI Test (3 pin) Doc 0256680 rev L Page 20 of 22 Not subject to issue control when printed...
  • Page 21: Hi Testing

    HI Testing Doc 0256680 rev L Open batt door and insert a batt pill. Close batt door and attach the prog adapt and the prog cable to the HI. It is recommended to use the prog clip during HI test to prevent the prog cable to fall off - please see the “Prog adapt clip” page Connect the extension cable to the prog cable and the DSA as shown Note about PROG.
  • Page 22: Wireless Test

    Wireless Test Doc 0256680 rev L The wireless range test is a combined DSA6000 NOAHLINK SAS-3 Noahlink/SAS Range Check test using the SAS-3 with its MAC address entered into the DSA 6000 system configuration and a Noahlink mounted di- rectly in any of the DSA 6000 units USB ports. No fixture is required performing a wireless range test How to get the MAC address of the SAS: It is not directly available in the STD version.
