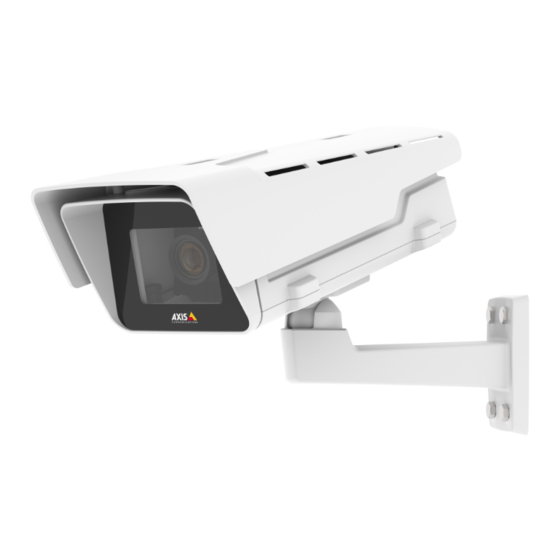

- Page 1 AXIS P1367-E Network Camera User Manual...
-
Page 2: Table Of Contents
AXIS P1367-E Network Camera Table of Contents Solution overview ......... . . -
Page 3: Solution Overview
AXIS P1367-E Network Camera Solution overview Solution overview... -
Page 4: Product Overview
AXIS P1367-E Network Camera Product overview Product overview Weather shield Top cover Window Intrusion alarm magnet Safety wire Cable tie anchor IK10 tool Intrusion alarm sensor Cable cover 10 Spring loaded thumb screw (4x) 11 Optic unit 12 Zoom puller... - Page 5 AXIS P1367-E Network Camera Product overview 15 Status LED 16 Network LED 17 Power LED 18 microSD card slot 19 I/O connector 20 RS485/422 connector 21 Control button 22 Network connector (PoE) 23 Audio out 24 Audio in 25 Cable gasket M20 (2x)
-
Page 6: Installation
AXIS P1367-E Network Camera Installation Installation To watch this video, go to the web version of this document. www.axis.com/products/online-manual/23180#t10169338 Installation video for the product. -
Page 7: Find The Device On The Network
Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support. - Page 8 AXIS P1367-E Network Camera Find the device on the network 2. Retype the password to confirm the spelling. 3. Click Create login. The password has now been configured.
-
Page 9: Additional Settings
AXIS P1367-E Network Camera Additional settings Additional settings Need more help? You can access the built-in help from the device’s webpage. The help provides more detailed information on the device’s features and their settings. Replace the lens 1. Stop all recordings and disconnect power from the product. -
Page 10: Reduce Noise In Low-Light Conditions
AXIS P1367-E Network Camera Additional settings 1. Go to Settings > Privacy mask. 2. Click New. 3. Adjust the size, color, and name of the privacy mask according to your needs. To watch this video, go to the web version of this document. -
Page 11: Monitor Long And Narrow Areas
Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°. -
Page 12: View Area
AXIS P1367-E Network Camera Additional settings ABC 123 1. Go to Settings > System > Orientation. 2. Click 3. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect license plates to appear. -
Page 13: Show A Text Overlay In The Video Stream When The Device Detects Motion
3. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Overlays are superimposed over the video stream. They are used to provide extra information during recordings, such as a timestamp, or during product installation and configuration. -
Page 14: Bitrate Control
How to show text overlay when the camera detects motion Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. - Page 15 AXIS P1367-E Network Camera Additional settings Maximum bitrate (MBR) With maximum bitrate, you can set a target bitrate to handle bitrate limitations in your system. You may see a decline in image quality or frame rate when the instantaneous bitrate is kept below the specified target bitrate. You can choose to either prioritize image quality or frame rate.
-
Page 16: Video Compression Formats
H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. -
Page 17: Reduce Bandwidth And Storage
AXIS P1367-E Network Camera Additional settings H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard. This means that less network bandwidth and storage space are required for a video file. -
Page 18: Set Up Rules And Alerts
How to record a video stream when the camera detects motion Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running. -
Page 19: Applications
9. Click Save. Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. -
Page 20: Troubleshooting
Always read the upgrade instructions and release notes available with each new release before upgrading the firmware. To find the latest firmware and the release notes, go to axis.com/support/firmware. AXIS Device Manager can be used for multiple upgrades. Find out more at axis.com/products/axis-device-manager. To watch this video, go to the web version of this document. -
Page 21: Reset To Factory Default Settings
Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the... -
Page 22: Performance Considerations
IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured). - Page 23 Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
-
Page 24: Specifications
This product supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both. -
Page 25: Buttons
AXIS P1367-E Network Camera Specifications Buttons Control button The control button is used for: • Enabling the Focus Assistant. Press and very quickly release the Control button. • Resetting the product to factory default settings. See Reset to factory default settings on page 21. - Page 26 AXIS P1367-E Network Camera Specifications Example DC ground DC output 12 V, max 50mA I/O configured as input I/O configured as output RS485/RS422 connector Two 2-pin terminal blocks for RS485/RS422 serial interface used to control auxiliary equipment such as pan-tilt devices.
-
Page 27: Operating Conditions
AXIS P1367-E Network Camera Specifications Important The maximum cable length is 30 m (98 ft). Operating conditions Product Temperature Humidity AXIS P1367-E -40 °C to 55 °C 10–100% RH (condensing) (-40 °F to 131 °F) Maximum temperature (intermittent): 60 °C (140 °F) - Page 28 User Manual Ver. M9.3 AXIS P1367-E Network Camera Date: May 2021 © Axis Communications AB, 2017 - 2021 Part No. T10095508...
