Intruder alarm system

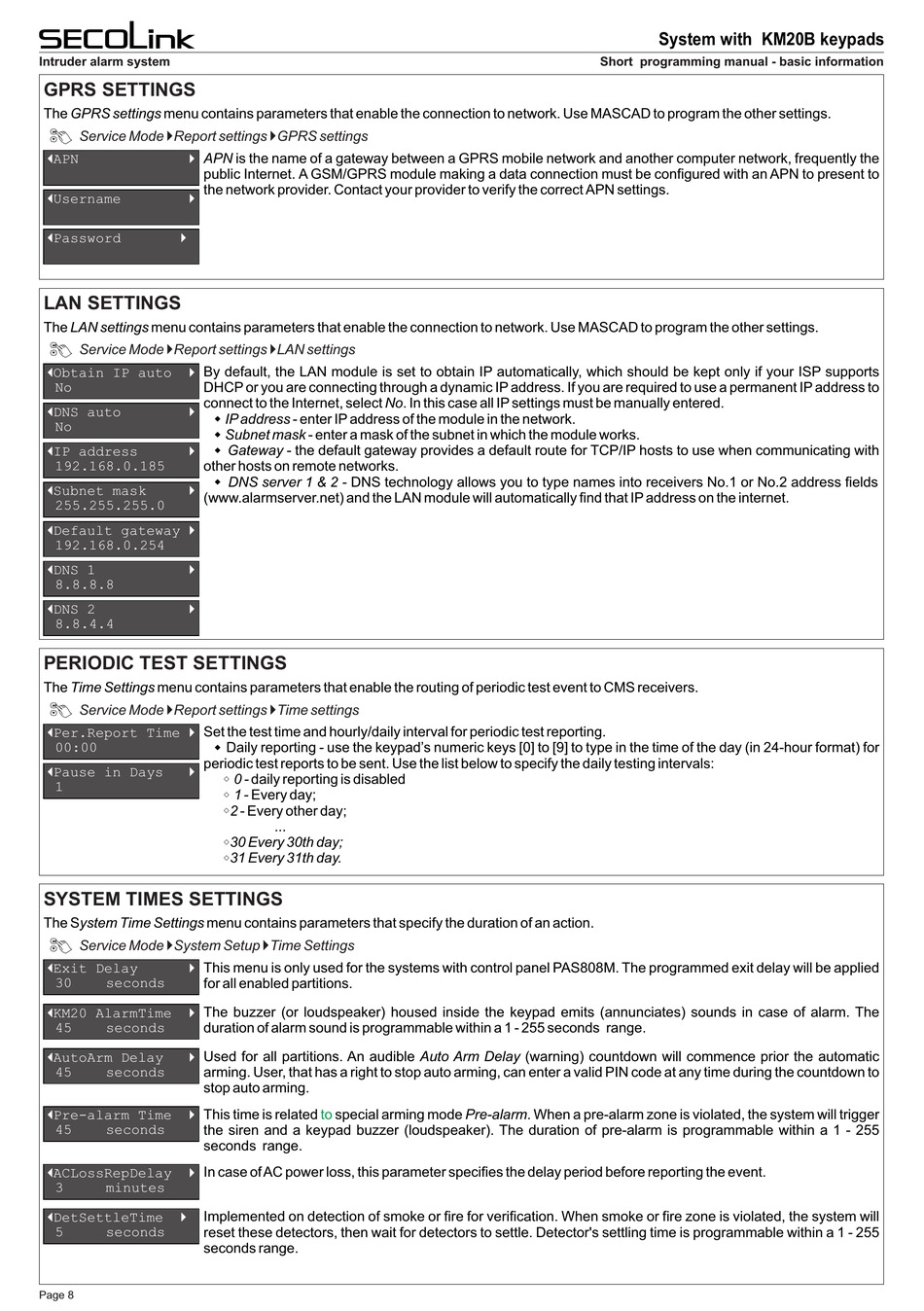

GPRS SETTINGS

The GPRS settings menu contains parameters that enable the connection to network. Use MASCAD to program the other settings.
Service Mode }Report settings }GPRS settings
APN is the name of a gateway between a GPRS mobile network and another computer network, frequently the
| }
APN
public Internet. A GSM/GPRS module making a data connection must be configured with an APN to present to
the network provider. Contact your provider to verify the correct APN settings.
| }
Username
| }
Password

LAN SETTINGS

The LAN settings menu contains parameters that enable the connection to network. Use MASCAD to program the other settings.
Service Mode }Report settings }LAN settings
By default, the LAN module is set to obtain IP automatically, which should be kept only if your ISP supports
| }
Obtain IP auto
DHCP or you are connecting through a dynamic IP address. If you are required to use a permanent IP address to
No
connect to the Internet, select No. In this case all IP settings must be manually entered.
| }
DNS auto
No
| }
IP address
other hosts on remote networks.
192.168.0.185
| }
Subnet mask
(www.alarmserver.net) and the LAN module will automatically find that IP address on the internet.
255.255.255.0
| }
Default gateway
192.168.0.254
| }
DNS 1
8.8.8.8
| }
DNS 2
8.8.4.4
PERIODIC TEST SETTINGS
The Time Settings menu contains parameters that enable the routing of periodic test event to CMS receivers.
Service Mode }Report settings }Time settings
Set the test time and hourly/daily interval for periodic test reporting.
| }
Per.Report Time
00:00
periodic test reports to be sent. Use the list below to specify the daily testing intervals:
| }
Pause in Days
1
SYSTEM TIMES SETTINGS
The System Time Settings menu contains parameters that specify the duration of an action.
Service Mode }System Setup }Time Settings
This menu is only used for the systems with control panel PAS808M. The programmed exit delay will be applied
| }
Exit Delay
for all enabled partitions.
30 seconds
The buzzer (or loudspeaker) housed inside the keypad emits (annunciates) sounds in case of alarm. The
| }
KM20 AlarmTime
duration of alarm sound is programmable within a 1 - 255 seconds range.
45 seconds
Used for all partitions. An audible Auto Arm Delay (warning) countdown will commence prior the automatic
| }
AutoArm Delay
arming. User, that has a right to stop auto arming, can enter a valid PIN code at any time during the countdown to
45 seconds
stop auto arming.
This time is related
| }
Pre-alarm Time
the siren and a keypad buzzer (loudspeaker). The duration of pre-alarm is programmable within a 1 - 255
45 seconds
seconds range.
In case of AC power loss, this parameter specifies the delay period before reporting the event.
| }
ACLossRepDelay
3 minutes
Implemented on detection of smoke or fire for verification. When smoke or fire zone is violated, the system will
| }
DetSettleTime
5 seconds reset these detectors, then wait for detectors to settle. Detector's settling time is programmable within a 1 - 255
seconds range.
Page 8
IP address - enter IP address of the module in the network.
Subnet mask - enter a mask of the subnet in which the module works.
Gateway - the default gateway provides a default route for TCP/IP hosts to use when communicating with
DNS server 1 & 2 - DNS technology allows you to type names into receivers No.1 or No.2 address fields
Daily reporting - use the keypad's numeric keys [0] to [9] to type in the time of the day (in 24-hour format) for
0 - daily reporting is disabled
1 - Every day;
2 - Every other day;
...
30 Every 30th day;
31 Every 31th day.
to special arming mode Pre-alarm. When a pre-alarm zone is violated, the system will trigger
System with KM20B keypads
Short programming manual - basic information
