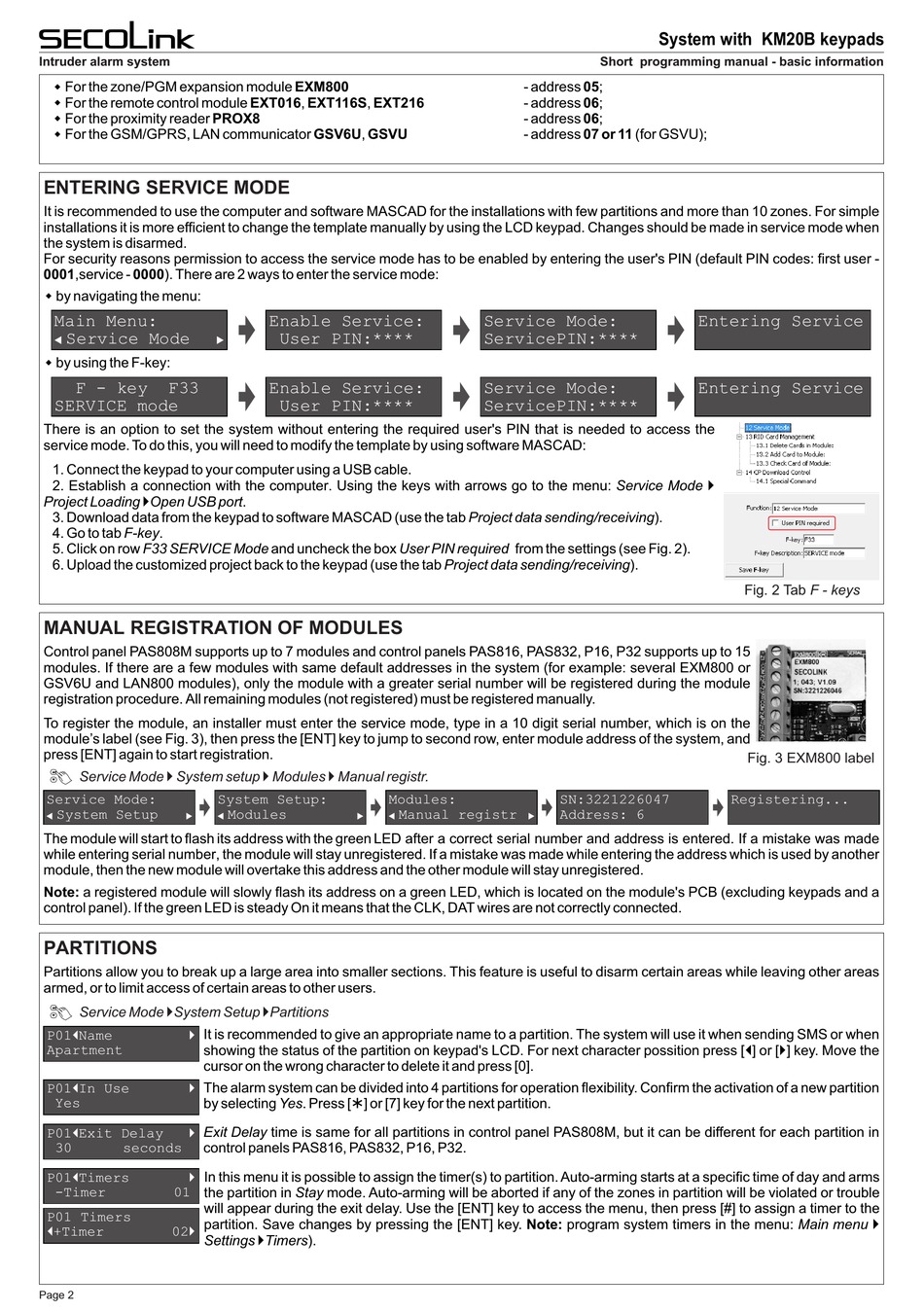

Entering Service Mode - SECOLink KM20B Short Programming Manual - Basic Information

Intruder alarm system
For the zone/PGM expansion module EXM800
For the remote control module EXT016, EXT116S, EXT216
For the proximity reader PROX8
For the GSM/GPRS, LAN communicator GSV6U, GSVU

ENTERING SERVICE MODE

It is recommended to use the computer and software MASCAD for the installations with few partitions and more than 10 zones. For simple
installations it is more efficient to change the template manually by using the LCD keypad. Changes should be made in service mode when
the system is disarmed.
For security reasons permission to access the service mode has to be enabled by entering the user's PIN (default PIN codes: first user -
0001,service - 0000). There are 2 ways to enter the service mode:
by navigating the menu:
Main Menu:
Service Mode
by using the F-key:
F - key F33
SERVICE mode
There is an option to set the system without entering the required user's PIN that is needed to access the
service mode. To do this, you will need to modify the template by using software MASCAD:
1. Connect the keypad to your computer using a USB cable.
2. Establish a connection with the computer. Using the keys with arrows go to the menu: Service Mode }
Project Loading }Open USB port.
3. Download data from the keypad to software MASCAD (use the tab Project data sending/receiving).
4. Go to tab F-key.
5. Click on row F33 SERVICE Mode and uncheck the box User PIN required from the settings (see Fig. 2).
6. Upload the customized project back to the keypad (use the tab Project data sending/receiving).
MANUAL REGISTRATION OF MODULES
Control panel PAS808M supports up to 7 modules and control panels PAS816, PAS832, P16, P32 supports up to 15
modules. If there are a few modules with same default addresses in the system (for example: several EXM800 or
GSV6U and LAN800 modules), only the module with a greater serial number will be registered during the module
registration procedure. All remaining modules (not registered) must be registered manually.
To register the module, an installer must enter the service mode, type in a 10 digit serial number, which is on the
module's label (see Fig. 3), then press the [ENT] key to jump to second row, enter module address of the system, and
press [ENT] again to start registration.
Service Mode } System setup } Modules } Manual registr.
Service Mode:
System Setup
The module will start to flash its address with the green LED after a correct serial number and address is entered. If a mistake was made
while entering serial number, the module will stay unregistered. If a mistake was made while entering the address which is used by another
module, then the new module will overtake this address and the other module will stay unregistered.
Note: a registered module will slowly flash its address on a green LED, which is located on the module's PCB (excluding keypads and a
control panel). If the green LED is steady On it means that the CLK, DAT wires are not correctly connected.
PARTITIONS
Partitions allow you to break up a large area into smaller sections. This feature is useful to disarm certain areas while leaving other areas
armed, or to limit access of certain areas to other users.
Service Mode }System Setup }Partitions
It is recommended to give an appropriate name to a partition. The system will use it when sending SMS or when
| }
P01 Name
showing the status of the partition on keypad's LCD. For next character possition press [|] or [}] key. Move the
Apartment
cursor on the wrong character to delete it and press [0].
The alarm system can be divided into 4 partitions for operation flexibility. Confirm the activation of a new partition
| }
P01 In Use
by selecting Yes. Press [Ü] or [7] key for the next partition.
Yes
Exit Delay time is same for all partitions in control panel PAS808M, but it can be different for each partition in
| }
P01 Exit Delay
control panels PAS816, PAS832, P16, P32.
30 seconds
| } In this menu it is possible to assign the timer(s) to partition. Auto-arming starts at a specific time of day and arms
P01 Timers
-Timer 01 the partition in Stay mode. Auto-arming will be aborted if any of the zones in partition will be violated or trouble
will appear during the exit delay. Use the [ENT] key to access the menu, then press [#] to assign a timer to the
P01 Timers
partition. Save changes by pressing the [ENT] key. Note: program system timers in the menu: Main menu }
| }
+Timer 02
Settings }Timers).
Page 2
Enable Service:
User PIN:****
Enable Service:
User PIN:****
System Setup: Modules:
Modules
- address 05;
- address 06;
- address 06;
- address 07 or 11 (for GSVU);
Service Mode:
ServicePIN:****
Service Mode:
ServicePIN:****
SN:3221226047
Manual registr Address: 6
System with KM20B keypads
Short programming manual - basic information
Entering Service
Entering Service
Fig. 2 Tab F - keys
Fig. 3 EXM800 label
Registering...
