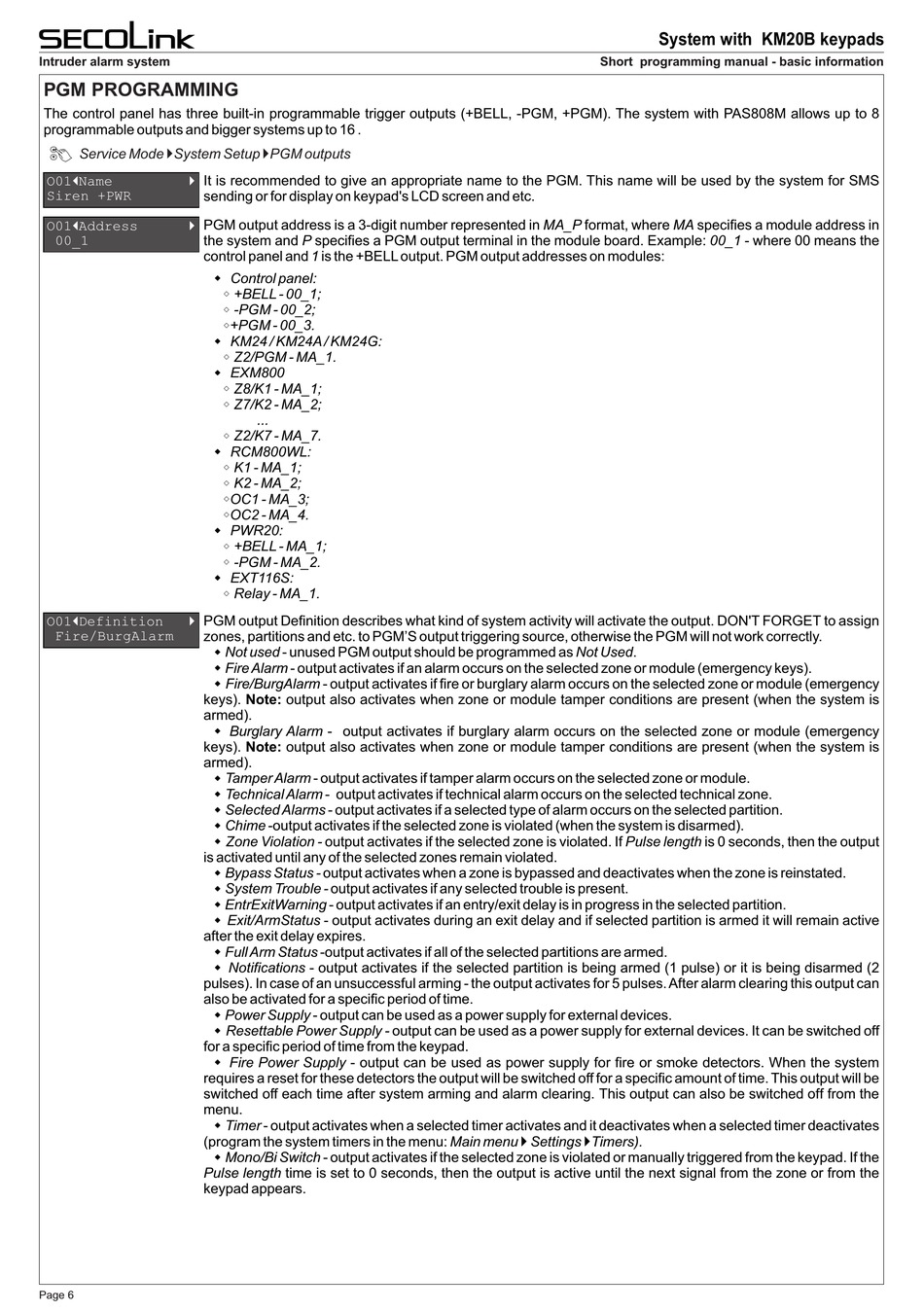

PGM PROGRAMMING

The control panel has three built-in programmable trigger outputs (+BELL, -PGM, +PGM). The system with PAS808M allows up to 8
programmable outputs and bigger systems up to 16 .
Service Mode }System Setup }PGM outputs
It is recommended to give an appropriate name to the PGM. This name will be used by the system for SMS
| }
O01 Name
sending or for display on keypad's LCD screen and etc.
Siren +PWR
PGM output address is a 3-digit number represented in MA_P format, where MA specifies a module address in
| }
O01 Address
00_1 the system and P specifies a PGM output terminal in the module board. Example: 00_1 - where 00 means the
control panel and 1 is the +BELL output. PGM output addresses on modules:
PGM output Definition describes what kind of system activity will activate the output. DON'T FORGET to assign
| }
O01 Definition
zones, partitions and etc. to PGM'S output triggering source, otherwise the PGM will not work correctly.
Fire/BurgAlarm
keys). Note: output also activates when zone or module tamper conditions are present (when the system is
armed).
keys). Note: output also activates when zone or module tamper conditions are present (when the system is
armed).
is activated until any of the selected zones remain violated.
after the exit delay expires.
pulses). In case of an unsuccessful arming - the output activates for 5 pulses. After alarm clearing this output can
also be activated for a specific period of time.
for a specific period of time from the keypad.
requires a reset for these detectors the output will be switched off for a specific amount of time. This output will be
switched off each time after system arming and alarm clearing. This output can also be switched off from the
menu.
(program the system timers in the menu: Main menu } Settings }Timers).
Pulse length time is set to 0 seconds, then the output is active until the next signal from the zone or from the
keypad appears.
Page 6
Control panel:
+BELL - 00_1;
-PGM - 00_2;
+PGM - 00_3.
KM24 / KM24A / KM24G:
Z2/PGM - MA_1.
EXM800
Z8/K1 - MA_1;
Z7/K2 - MA_2;
...
Z2/K7 - MA_7.
RCM800WL:
K1 - MA_1;
K2 - MA_2;
OC1 - MA_3;
OC2 - MA_4.
PWR20:
+BELL - MA_1;
-PGM - MA_2.
EXT116S:
Relay - MA_1.
Not used - unused PGM output should be programmed as Not Used.
Fire Alarm - output activates if an alarm occurs on the selected zone or module (emergency keys).
Fire/BurgAlarm - output activates if fire or burglary alarm occurs on the selected zone or module (emergency
Burglary Alarm - output activates if burglary alarm occurs on the selected zone or module (emergency
Tamper Alarm - output activates if tamper alarm occurs on the selected zone or module.
Technical Alarm - output activates if technical alarm occurs on the selected technical zone.
Selected Alarms - output activates if a selected type of alarm occurs on the selected partition.
Chime -output activates if the selected zone is violated (when the system is disarmed).
Zone Violation - output activates if the selected zone is violated. If Pulse length is 0 seconds, then the output
Bypass Status - output activates when a zone is bypassed and deactivates when the zone is reinstated.
System Trouble - output activates if any selected trouble is present.
EntrExitWarning - output activates if an entry/exit delay is in progress in the selected partition.
Exit/ArmStatus - output activates during an exit delay and if selected partition is armed it will remain active
Full Arm Status -output activates if all of the selected partitions are armed.
Notifications - output activates if the selected partition is being armed (1 pulse) or it is being disarmed (2
Power Supply - output can be used as a power supply for external devices.
Resettable Power Supply - output can be used as a power supply for external devices. It can be switched off
Fire Power Supply - output can be used as power supply for fire or smoke detectors. When the system
Timer - output activates when a selected timer activates and it deactivates when a selected timer deactivates
Mono/Bi Switch - output activates if the selected zone is violated or manually triggered from the keypad. If the
