Creative Playthings Lexington Premium Pack 8 Quick Start Manual

CHILDHOOD STARTS HERE
The components of this gym can be combined with others to create different play sets.
Read this sheet and all instructions included with the different parts before assembly.
See the Instructions and Owner's Manual included in carton 63007-445 for important

Cartons for this Play Set:

1 63007-421 Lexington Gym 1 (Hardware)
1 63007-422 Lexington Gym 2
1 63007-423 Lexington Gym 3
1 63007-445 Lexington Roof (Hdwre & Instr)
1 SH946-102 Access Ladder
1 AG942-400 Access Ladder Handles (Hdwre & Instr)
1 63058-202 4 Position Swing Beam
1 63060-222 9ft Swing Beam Legs (Hdwre & Instr)
1 50546-777 3 Swings, 1 Trapeze
1 15166-400 10 ft. Super Wave Slide
1 AG943-400 Slide Handle (Hdwre & Instr)
1 AH201-102Q Rock Climber (Hdwre & Instr)
1 SC909-800Q Lexington Play Walls (Hdwre & Instr)
1 SC910-800Q Lexington Play Floor (Hdwre & Instr)
1 63081-102 Ice Cream Stand (Hdwre & Instr)
1 SM964-402 Gable Fans (Hdwre & Instr)
1 SM963-402 Dormer (Hdwre & Instr)
1 AA917-603 Fireman's Pole (Hdwre & Instr)
© Copyright 2018, Creative Playthings
This is the best order of assembly to create this specific set.
safety information.

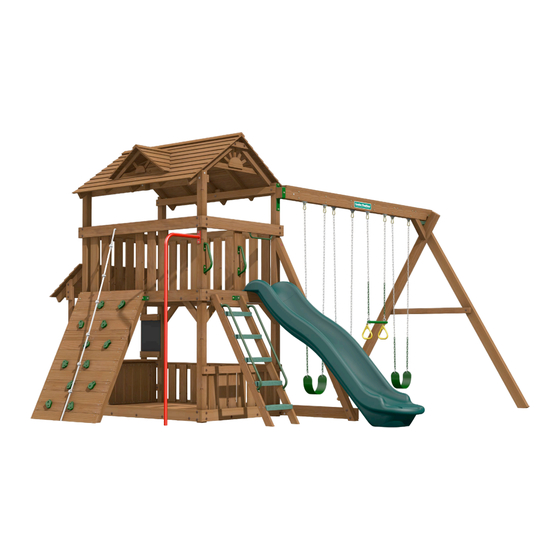

Lexington Premium Pack 8
• Start by assembling the Lexington tower. Instructions and hard-
ware are in the cartons noted at left.
• Wait to install the Access Ladder, Slide, and Wall Slats until after
the rest of the play set is complete.
• Lexington step 7. Do not install the safety rail. It will be used for
the Play Walls.
• Lexington step 8. Do not install the angle brace mounted to the
back platform end nearest the swings. It will interfere with the
chalkboard.
• Lexington step 15. No Swing Mount is needed.
After completing the tower except Access Ladder, Slide, and Wall
Slats:
• Using a ladder, install the Dormer (SM963-402) in the position
shown. Ladder access may be obstructed by later installations.
• Install the Gable Fans (SM964-402).
• Install the 9ft Swing Beam. Instructions are in carton 63060-222.
LEXI9WPP8
Dimensions of assembled package:
19' 4" wide x 16' 6" deep x 11' 6" tall
LEXINGTON PREMIUM PACK 8
LEXI9WPP8-100 Rev A (04-18)
