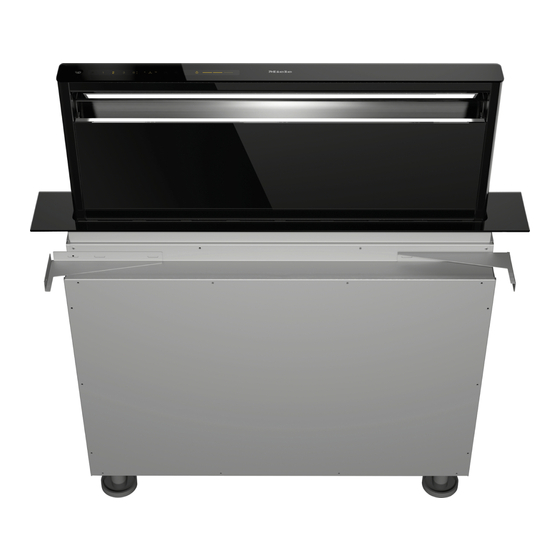

Downdraft extractor
Hide thumbs Also See for DAD 4840:
Table of Contents

Advertisement

Quick Links

Operating and installation
instructions
Downdraft extractor
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB
M.-Nr. 12 003 080

Advertisement

Table of Contents
loading

Related Manuals for Miele DAD 4840

Summary of Contents for Miele DAD 4840

  • Page 1 Operating and installation instructions Downdraft extractor To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 12 003 080...

  • Page 2: Table Of Contents

    Recirculation mode Plug&Play ............... 16 Before using for the first time ................17 Selecting extraction mode or recirculation mode..........17 Setting up Miele@home ..................18 Connecting via the app .................. 18 Connecting via WPS ..................20 Sign out of WiFi (reset to factory settings) ............. 21 Setting up Con@ctivity ..................
  • Page 3 Contents Energy saving tips ..................... 33 Cleaning and care ..................... 34 Housing ....................... 34 Important information for appliances with stainless steel surfaces ....34 Grease filters and panel for edge extraction ............35 Removing the panel ..................36 Cleaning the drip tray ..................37 Inserting the panel..................

  • Page 4: Caring For The Environment

    Please dispose of it at your local community waste collection / recycling centre for electrical and electronic appliances, or contact your dealer or Miele for advice. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please...

  • Page 5: Warning And Safety Instructions

    Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any future owner.
  • Page 6 Warning and Safety instructions Safety with children  Children under 8 years of age must be kept away from the cooker hood unless they are constantly supervised.  Children aged 8 and older may only use the cooker hood without supervision if they have been shown how to use it and are able to do so in a safe manner.
  • Page 7  Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician.  A damaged appliance can be dangerous. Check it for visible signs of damage. Do not use a damaged appliance.
  • Page 8 Miele authorised technician to protect the user from danger.  The lamps are a built-in component of the lighting. Replacement lamps may only be fitted by a Miele authorised technician or by the Miele Customer Service Department. ...
  • Page 9 Warning and Safety instructions Using at the same time as another heating appliance that depends on the air from the room  Danger of toxic fumes! Great care should be taken when using the cooker hood in the same room or the same area of the house at the same time as another heating appliance that depends on the air from the room.
  • Page 10 Warning and Safety instructions In order to ensure safe operation and to prevent gases given off by the heating appliance from being drawn back into the room when the cooker hood and the heater are both operated simultaneously, an underpressure in the room of 0.04 mbar (4 Pa) is the maximum permissible.
  • Page 11 Warning and Safety instructions Correct use  Risk of crushing! Do not reach into the travel area of the extractor as it moves up or down.  Open flames are a fire hazard. The use of an open flame under the cooker hood is not permitted. To avoid the danger of fire, do not flambé...
  • Page 12 The distances given in “Installation” must be observed when fitting the downdraft extractor.  Exhaust ducting must be of non-inflammable material. Suitable material is available from Miele specialist dealers or the Miele Spares Dept.  The appliance must not be connected to a chimney or flue which is in use.
  • Page 13 The steam could reach electrical components and cause a short circuit. Accessories and spare parts  Only use genuine original Miele accessories and spare parts with this appliance. Using accessories or spare parts from other manufacturers will invalidate the warranty and Miele cannot accept liability.

  • Page 14: Guide To The Cooker Hood

    Guide to the cooker hood...
  • Page 15 Guide to the cooker hood a Control elements b Retractable deflector plate c Hob lighting d Edge extraction panel e Drip tray f Charcoal filter Single-use or reactivatable charcoal filters Optional accessories for recirculation mode g Grease filters h Exhaust duct i Sensor control for switching the cooker hood on and off j Sensor controls for switching the fan on and off and for setting the fan power level...

  • Page 16: Modes Of Operation

    Modes of operation Depending on the model of the cooker Recirculation mode hood, the following options are (with conversion kit and charcoal filter available: as optional accessories) Extraction mode The air is drawn in via the edge extraction panel and cleaned first by the The cooking vapours are drawn in by grease filters and then by charcoal the cooker hood.

  • Page 17: Before Using For The First Time

    Before using for the first time Selecting extraction mode or Activating/Deactivating recirculation mode Plug&Play  Touch the On/Off switch . The cooker hood is suitable for both extraction mode and recirculation All symbols light up with reduced mode. The power of the fan is brightness.

  • Page 18: Setting Up Miele@Home

    Store or from the Google Play Store™. operate the cooker hood via the Miele app. If your Miele hob is connected to a home WiFi network, you can control the cooker hood automatically via the Con@ctivity function. Before installing the cooker hood in...
  • Page 19 Before using for the first time  With the deflector plate retracted, For the registration, you will need: touch the On/Off switch . 1. Your WiFi network password All symbols light up with reduced 2. Your cooker hood password brightness.  Press and hold the run-on option control ...

  • Page 20: Connecting Via Wps

    2 will light up constantly, 3 will flash. Tip: If your WiFi router does not support WPS, please connect via the Miele app. The WiFi connection must be started on the cooker hood at the same time as on the WPS router.

  • Page 21: Sign Out Of Wifi (Reset To Factory Settings)

    Before using for the first time Sign out of WiFi (reset to factory settings)  Touch 1. To set up a new WiFi connection, the existing WiFi connection must be disconnected.  With the deflector plate retracted, 2 will light up constantly, 3 will flash. touch the On/Off switch .

  • Page 22: Setting Up Con@Ctivity

    (Con@ctivity 3.0) Con@ctivity is the direct communication system between an electric Miele hob Prerequisite: and a Miele cooker hood. It enables the - Home WiFi network cooker hood to operate automatically depending on the operational state of a - WiFi-enabled Miele hob Miele hob with onset controls.

  • Page 23: Con@Ctivity Via A Direct Wifi Connection (Con@Ctivity 3.0)

    Con@ctivity via a direct WiFi connection (Con@ctivity 3.0) For further details, see the hob operating instructions. Prerequisite: - WiFi enabled Miele hob If you do not have a home network, you When successfully connected, 2 and can establish a direct connection 3 will light up constantly.

  • Page 24: Operation (Automatic Mode)

    Operation (Automatic mode) Risk of crushing! Do not reach into the motion range of the deflector plate as it moves up or down. When Con@ctivity is active, the cooker hood always operates in automatic mode (see “Before using for Examples for power levels 1 to B the first time”...

  • Page 25: Cooking Process

    Operation (Automatic mode) Cooking process Leaving automatic mode temporarily  For example, you switch on a cooking zone at the highest power level to To leave automatic mode temporarily heat a pan for frying. You reduce the during cooking: power level after approx. 10 seconds ...
  • Page 26 Operation (Automatic mode) You can also operate the cooker hood manually for a complete cooking process.  Switch the cooker hood fan on before the hob. If the cooker hood fan and the hob have been switched off for at least 30 seconds after cooking, automatic mode will resume next time the hob is switched on.

  • Page 27: Operation (Manual Mode)

    Operation (Manual mode) Selecting the second booster level Risk of crushing!  When you select the booster level, Do not reach into the motion range the B symbol lights up. To increase of the deflector plate as it moves up the power level further, touch B or down.

  • Page 28: Switching The Fan Off

    Operation (Manual mode) - If you touch the run-on option Switching on and dimming the control  again, the fan will remain hob lighting on ( will go out). The hob lighting can be switched on and off and dimmed independently of Switching the fan off the fan.

  • Page 29: Retracting The Deflector Plate

    Operation (Manual mode) Retracting the deflector plate  Touch the On/Off switch . The fan and the hob lighting are switched off. All symbols go out. The deflector plate retracts. Automatic retraction If you switch off the fan and the lighting when the deflector plate is extended, the deflector plate will automatically retract after 1 minute.

  • Page 30: Changing Settings

    Changing settings  Touch the On/Off switch . All settings are made with the cooker hood switched off. All symbols light up with reduced  Switch off the fan and the lighting brightness. and retract the deflector plate.  Press and hold the run-on option control ...

  • Page 31: Altering Or Deactivating The Charcoal Filter Operating Hours Counter

    Changing settings Altering or deactivating the Deactivating power charcoal filter operating hours management counter Keep in mind that deactivating this function may increase energy Charcoal filters are needed for consumption. recirculation mode. You can set the operating hours counter Activating/deactivating Power to suit the type of cooking you do.

  • Page 32: Buzzer For The Sensor Controls

    Changing settings  Confirm the setting with the run-on option control . All the lights will go out. If you do not confirm your choice of setting within 4 minutes, the cooker hood will revert to the old setting. Buzzer for the sensor controls When a function is selected with the sensor controls, a short buzzer will sound for confirmation.

  • Page 33: Energy Saving Tips

    Energy saving tips This cooker hood operates very - Clean or change the filters at regular efficiently and economically. The intervals. Heavily soiled filters reduce following will help you to save even performance, increase the risk of fire more energy when using it: and are unhygienic.

  • Page 34: Cleaning And Care

    Do not use any abrasive cleaning product (available from Miele). agents, e.g. powder cleaners or Important for appliances with glass cream cleaners and abrasive surfaces...

  • Page 35: Grease Filters And Panel For Edge Extraction

    Cleaning and care Removing the panel and grease Grease filters and panel for filters edge extraction Opening the panel  Fire hazard  With the deflector plate retracted, Oversaturated grease filters are a fire touch the On/Off switch . hazard. Clean the grease filters at regular ...

  • Page 36: Removing The Panel

    Cleaning and care  Use a commercially available household dishwasher detergent.  Select a dishwasher programme with a wash temperature between 50 °C and 65 °C. Depending on the detergent used, cleaning the filters in a dishwasher may cause the inside filter surfaces to become discoloured.

  • Page 37: Cleaning The Drip Tray

    Cleaning and care Cleaning the panel  Follow the instructions under “Housing”. The panel is not suitable for cleaning in a dishwasher.  When removing the panel and filters for cleaning, also clean off any residues of oil or fat from the now accessible parts of the casing to prevent the risk of these catching fire.

  • Page 38: Resetting The Grease Filter Operating Hours Counter

    Charcoal filters are available to order via After changing the charcoal filters, the the Miele Webshop, the Miele Spare operating hours counter needs to be Parts Department (see end of this reset. booklet for contact details) or from your ...

  • Page 39: Reactivatable Charcoal Filters

    Cleaning and care Reactivatable charcoal filters Reactivatable charcoal filters are available for this cooker hood. They can be used several times after being reactivated in the oven. Please follow the operating instructions supplied with the filters.

  • Page 40: Problem Solving Guide

    Problem solving guide Many malfunctions and faults that can occur in daily operation can be easily remedied. Time and money will be saved because a service call will not be needed. The following guide may help you to find the reason for a malfunction or a fault, and to correct it.

  • Page 41: Installation

    *INSTALLATION* Installation Before installation  Before installation, it is important to read the information given on the following pages as well as the “Warning and Safety instructions” at the beginning of this booklet.

  • Page 42: Appliance Dimensions

    *INSTALLATION* Installation Appliance dimensions...
  • Page 43 *INSTALLATION* Installation a Stepped cut-out for flush-fit installation in stone worktops (granite, marble) b Ensure that materials are sufficiently stable. c Cut-out off-centre d The minimum dimension is required if flat ducting is laid under the cabinets or the DUU 600 recirculation box is used. Exhaust duct  150 mm.

  • Page 44: Installation Examples

    *INSTALLATION* Installation Installation examples...
  • Page 45 *INSTALLATION* Installation a Exhaust air with flat ducting and DMK 150-1 wall box b Recirculation with flat ducting and DUU 600 recirculation box c Plug&Play operation with DUP 150 conversion kit During Plug&Play operation, ensure sufficient ventilation of the plinth area, e.g. through gaps in the plinth panel.

  • Page 46: Connection For Air Extraction

    - If the exhaust ducting has flaps, If the exhaust is ducted through an these must be opened whenever the outside wall, a Miele wall vent or roof cooker hood is switched on. vent (available as an optional accessory) is recommended. Both of Any constriction of the air throughput these have a built-in non-return flap.

  • Page 47: Electrical Connection

    If the mains connection cable is damaged, it must only be replaced with a specific mains connection cable of the same type (available from the Miele Customer Service Department). For safety reasons, such replacement may only be carried out by a qualified specialist or the Miele Customer Service Department.

  • Page 48: Service

    Contact in the event of a fault In the event of any faults which you cannot remedy yourself, please contact your Miele dealer or the Miele Customer Service Department. You can book a Miele Customer Service Department call-out online at www.miele.com/service.

  • Page 49: Technical Data

    DKF 30-P charcoal filter set. EU Conformity declaration Miele hereby declares that this cooker hood complies with Directive 2014/53/EU. The complete text of the EU declaration of conformity is available from one of the following internet addresses: - Products, Download from www.miele.ie...
  • Page 50 Data sheet for household cooker hoods In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No. 66/2014 MIELE Model name/identifier DAD 4840 Black Levantar Annual Energy Consumption (AEC 41,6 kWh/year hood Energy efficiency class Energy efficiency index (EEI...
  • Page 51 Technical data Data sheet for household cooker hoods In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No. 66/2014 MIELE Model name/identifier DAD 4940 Black Levantar Annual Energy Consumption (AEC 41,6 kWh/year hood Energy efficiency class Energy efficiency index (EEI...
  • Page 55 United Kingdom Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW Tel: 0330 160 6600, Internet: www.miele.co.uk/service, E-mail: info@miele.co.uk Australia Ireland South Africa Miele Australia Pty. Ltd. Miele Ireland Ltd. Miele (Pty) Ltd. ACN 005 635 398 2024 Bianconi Avenue...
  • Page 56 DAD 4840, DAD 4940 en-GB M.-Nr. 12 003 080 / 01...
