Sky-Watcher Heritage 76 Dobsonian Telescope
What's in the case?
• 1 Telescope with attached Finderscope
• 1 Eyepiece with 2 protective caps (20 mm)
—See Figure 1
• 1 Eyepiece (either 4 mm or 10 mm )
with 2 protective caps—See Figure 1
• 1 Setup Guide
• 1 Night Sky Pocket Guide
The Telescope Kit and all contents must be returned to a Coquitlam Public Library branch Help Desk.

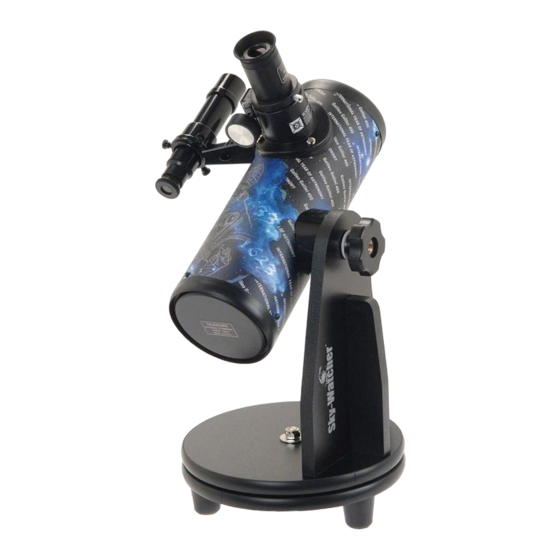

Parts Diagram
1. Eyepiece
2. Eyepiece screws
3. Focusing wheel
4. Dust cap
5. Telescope tube
6. Tension control knob
7. Finderscope
8. Finderscope focusing wheel
9. Finderscope alignment screws
7
9
8
3
1
2
4
5
6
Figure 1: Eyepieces
Eyepieces with
protective caps
Eyepieces without
protective caps
