- Page 1 INSTRUCTION MANUAL HAC125 DX 202411V1 Copyright © Sky-Watcher...

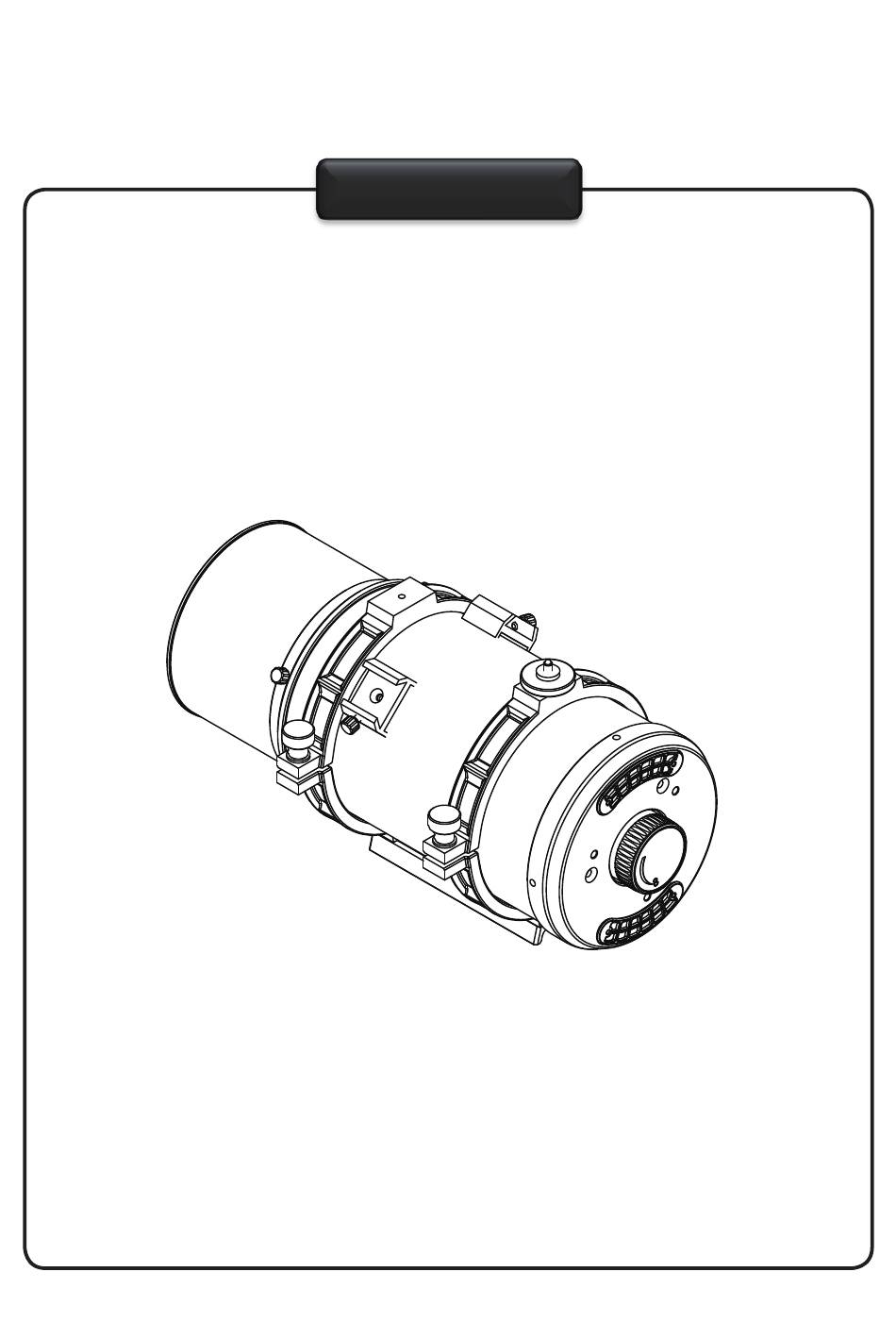

- Page 2 HAC125 DX Honders Advanced Catadioptric type photographic New concept HAC125 DX F/D=2 A traveler’s deep space digital eye on the sky, made to be fast and wide! Retractable Finderscope dew cap mounting slot Tube ring Focusing ring Lens hood locking screw...
-
Page 3: Specifications
1. Ø31.7 adapter of camera: Ø31.7 adapter of camera -9.7mm camera 30mm Focus of imaging Insert the camera into the adapter of HAC125 DX and tighten the locking screw .And try to keep the COSMOS Camera in the focal plane of the HAC125 DX. - Page 4 30mm M42X0.75 camera 6.5mm Focus of imaging 1.25 filter screw hole camera Remove the M42X0.75 adapter from HAC125 DX and install it on the camera camera Inser the camera to the adapter of HAC125 DX and tighten the locking screw...
- Page 5 The internal thread size of the camera adapter is M42X0.75, The back focal length of the camera is 12.5mm. 12.5mm M42X0.75 Camera 30mm 1.25 filter screw hole Camera Install the M42X0.75 adepter （with 12.5mm back focal length） on the camera Camera Inser the camera into the adapter of HAC125 DX and tighten the locking screw...
- Page 6 However, if desired, you can rotate the focus adjuster to adjust Point the HAC125 DX at a bright star and focus the camera. Center the star in the camera’s field of view. Inspect the defocused star diffraction pattern. When collimated, the pattern should look like a concentric doughnut.
- Page 7 The lens hood is detachable，which is convienient for users to install the camera. remove 3 locking screws on the lens hood,take off the lens ,then assemble it after installing the camera. HAC125 DX Focusing: Rotate the knob for focusing. The camera cable can be threaded through the lens hood.
- Page 8 NEVER USE YOUR TELESCOPE TO LOOK DIRECTLY AT THE SUN. PERMANENT EYE DAMAGE WILL RESULT. USE A PROPER SOLAR FILTER FOR VIEWING THE SUN. WHEN OBSERVING THE SUN, PLACE A DUST CAP OVER YOUR FINDERSCOPE TO PROTECT IT FROM EXPOSURE. NEVER USE AN EYEPIECE-TYPE SOLAR FILTER AND NEVER USE YOUR TELESCOPE TO PROJECT SUNLIGHT ONTO ANOTHER SURFACE, THE INTERNAL HEAT BUILD-UP WILL DAMAGE THE TELESCOPE OPTICAL ELEMENTS.
