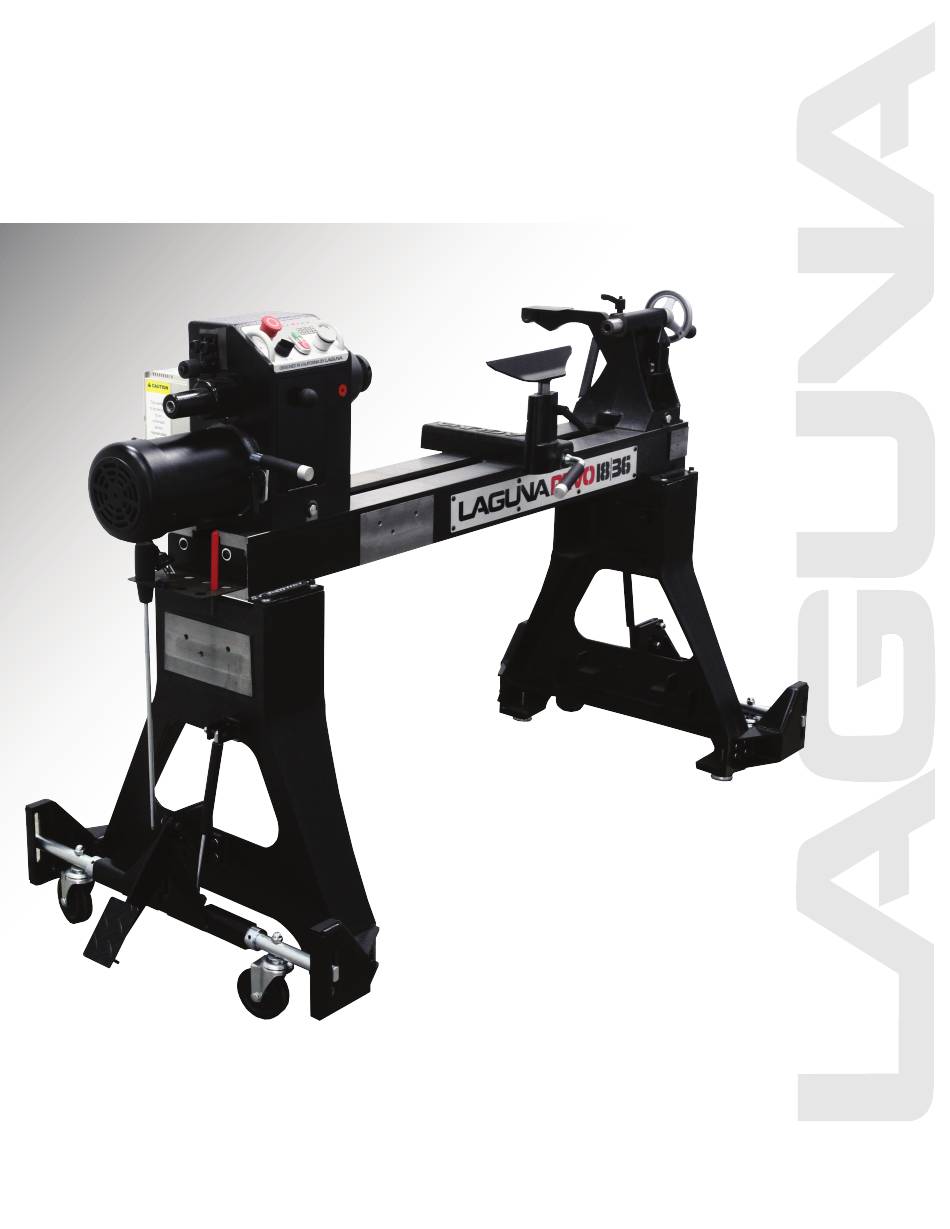

- Page 1 MOBILE BASE FOR THE REVO 18 | 36 LATHE LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Ph: 800.234.1976 www.lagunatools.com © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
- Page 3 Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machines and accessories sold to be free of manufacturers’...
- Page 4 Fitting the optional Wheel system. 1/ Raise one end of the lathe and place on a wooden block. 2/ Assemble the raiser bracket to the leg. Wooden Block Assemble raiser bracket 3/ Assemble the shock absorber bracket to the leg. 4/ Assemble the shock absorber to the shock absorber bracket.
- Page 5 Wheel rod flats Support bracket 6/ Raise the lathe and remove the wooden block. Assembled optional wheel system Assembled optional wheel system in disengaged position 7/ Repeat the above for the other leg of the lathe. To engage the wheel press the foot lever.
- Page 7 Deluxe Wheel System+A21 Index Part Number Item Description Specification PLAREVO1836-901 Support Bracket-Right PLAREVO1836-1115 Lock Washer 3/8" PLAREVO1836-195 Socket Head Cap Screw 3/8-16UNCx1" PLAREVO1836-904 Support Bracket-Left PLAREVO1836-905 Nylon Insert Lock Nut M8x1.25 PLAREVO1836-906 Support Bracket PLAREVO1836-907 Socket Head Cap Screw M8x45mm PLAREVO1836- 1/4- Socket Head Button Screw...
- Page 8 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
