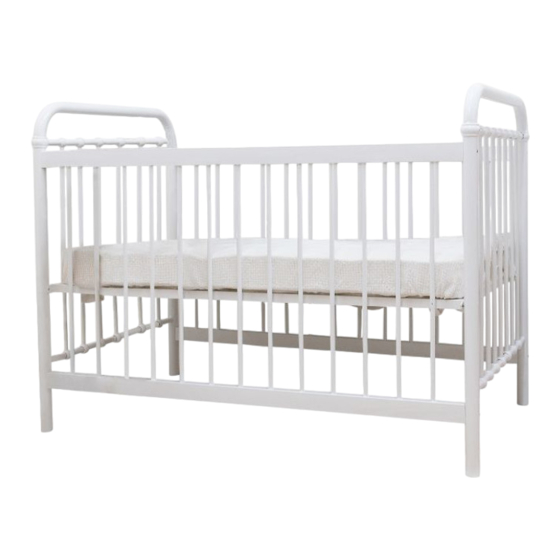

Sonata Cot
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
long
medium
short
allen key
screw x8
screw x4
screw x4
x1
Hardware Supplied
LIFT THE COT INTO PLACE, DO NOT DRAG, AS THIS CAN CAUSE DAMAGE
1
mocka.co.nz | mocka.com.au
Advertisement
Table of Contents
Related Manuals for Mocka Sonata Cot
Summary of Contents for Mocka Sonata Cot
- Page 1 Sonata Cot Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. long medium short allen key screw x8 screw x4 screw x4 Hardware Supplied LIFT THE COT INTO PLACE, DO NOT DRAG, AS THIS CAN CAUSE DAMAGE...
- Page 3 Sonata Cot Assembly Instructions Attach base panel [3] to the rest of the frame using 4x Attach the end panels [1] to side panel [2] using 4x long medium screws (B) and tighten with the allen key (D) as screws (A) and secure with the allen key (D).
- Page 4 Sonata Cot Assembly Instructions Attach side panel [2] to end panels [1] using 4x long Place 4x short screws (C) into the spare holes on both panels [1] as shown, and tighten with an allen key. Ensure screws (A) and tighten with the allen key (D).
