Summary of Contents for Beninca CELL.P

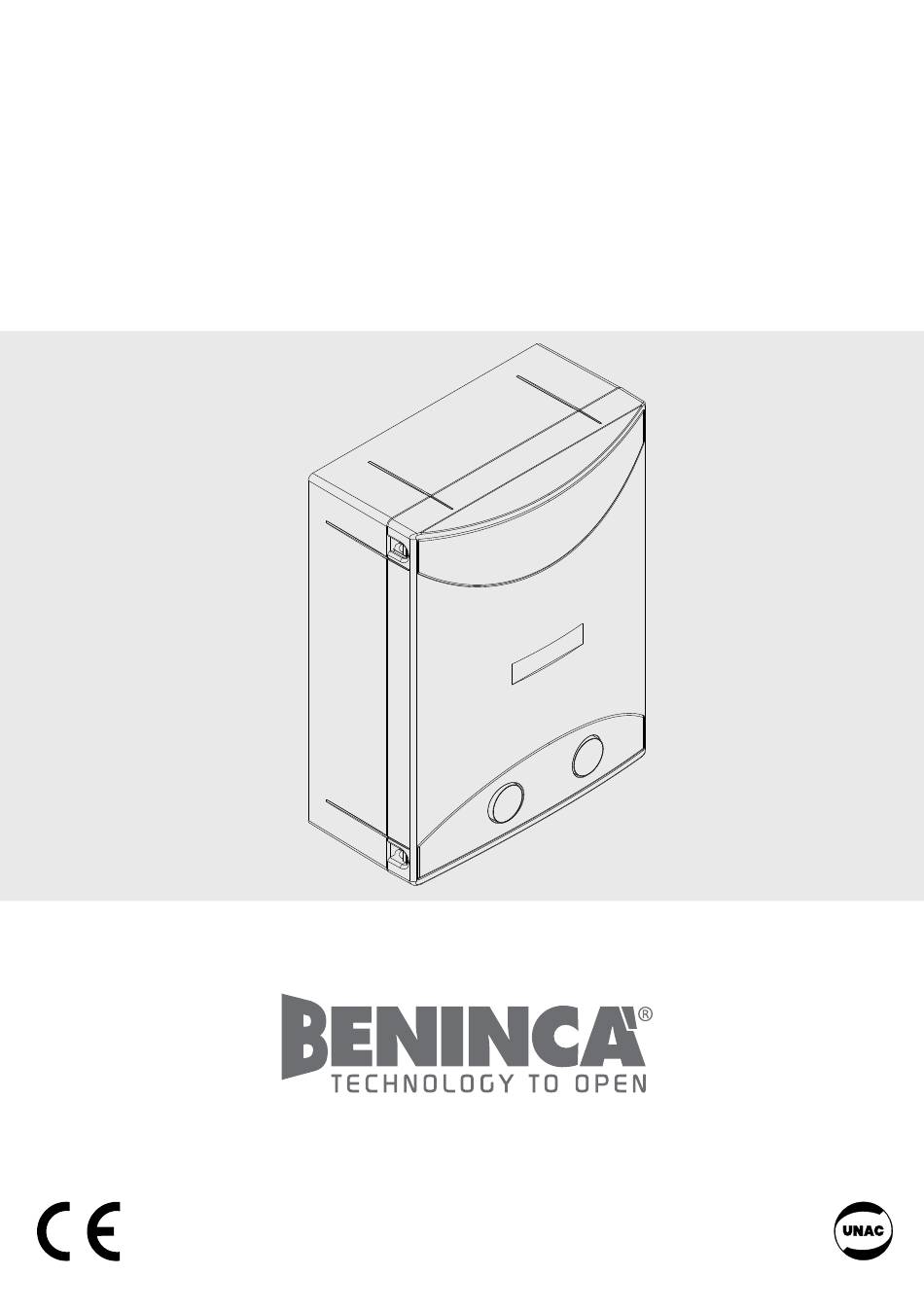

- Page 1 L8542928 02/2013 rev 4 CELL.P UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 3 F3: F6,3A F2: F315 mA 10 11 12 13 14 15 16 17 N GND LAMP 115/230Vac 40W max TIMER 14 15 16 17 SCA 24Vac 3W max...
- Page 4 Address: Via Capitello, 45 - 36066 Sandrigo (VI) - Italy Declares that the product: Control box for 1 motor: CELL.P conforms with the requirements of the following EU Directives: • DIRECTIVE 2004/108/CE OF THE EUROPEAN PARLIAMENT AND COUNCIL, 15 December...
- Page 5 Power maximum motor 1000 W Output supply accessories 24 Vac, 7W max. Protection level IP50 Operating temp. -20°C / +50°C CELL.P control unit with microcontroller INPUT/OUTPUT FUNCTIONS Terminals Function Description Input, 230VAC 50/60Hz 1, 2, 3 Power supply (1-Phase/2-Neutral/GND-Ground connection)
- Page 6 4) Send an opening control signal through the OPEN input. 5) The door leaves should open. If not, with stopped motor, it is sufficient to invert the move wires of the motor (MOT/MOT) of the motor and the limit switches (SWO/SWC), if used. 6) Adjust Times and operating Logics.
- Page 7 Note: with actuators for rolling shutters, preset torque at the maximum value. RADIO SELF-LEARNING (DIP1:OFF/DIP6:ON) The CELL.P control unit is equipped with a built-in radio module for the fixed or roll-on code of remote controls, with 433.92MHz frequency. To use a remote control, it is first necessary to store its code in memory. The memorisation procedure is described hereunder.
- Page 8 Automatismi Benincà SpA - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
