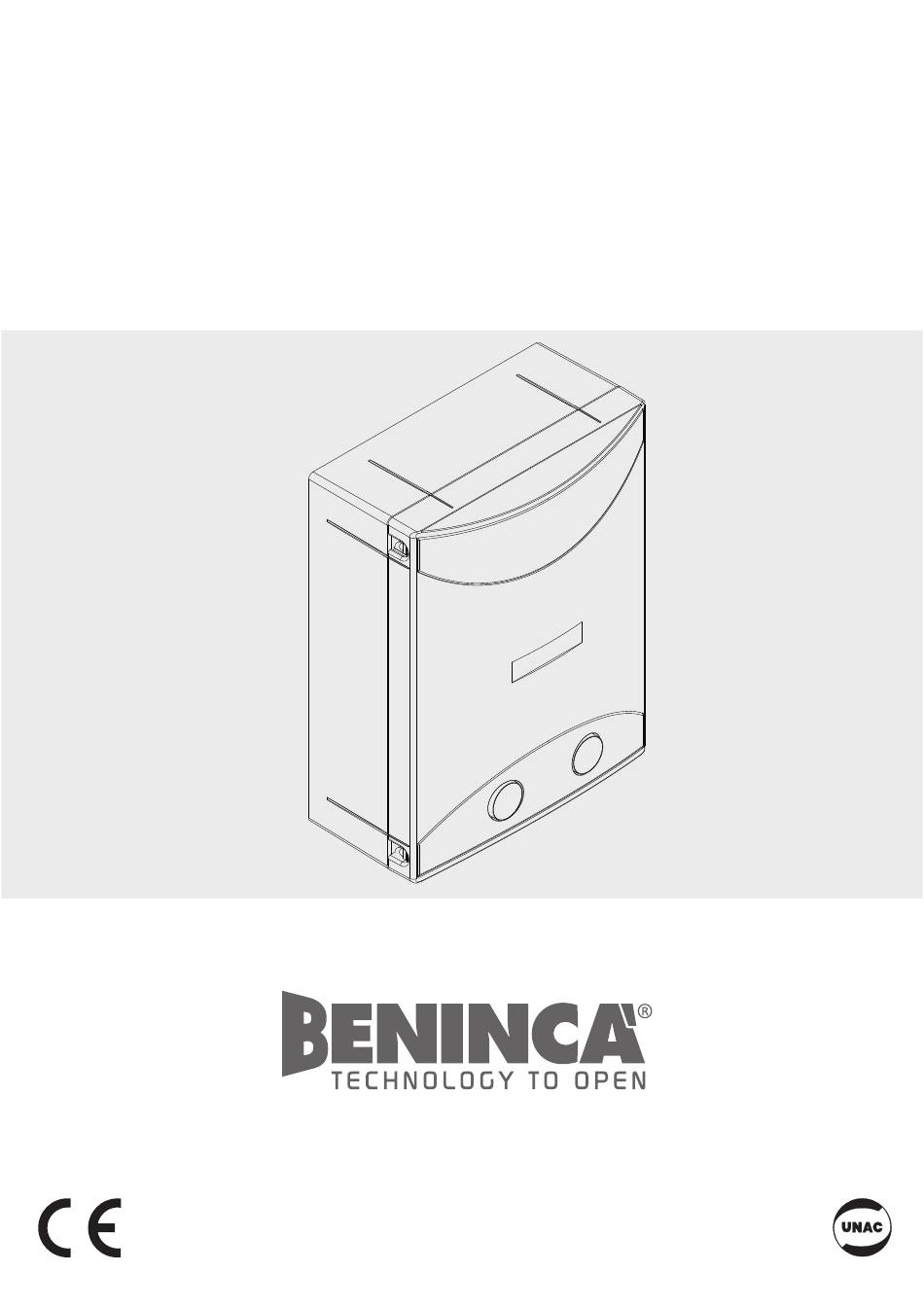

L8542928
11/2011 rev 2
CELL.P
UNIONE NAZIONALE COSTRUTTORI
AUTOMATISMI PER CANCELLI, PORTE
SERRANDE ED AFFINI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CELL.P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beninca CELL.P

Summary of Contents for Beninca CELL.P

  • Page 1 L8542928 11/2011 rev 2 CELL.P UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
  • Page 2 F3: F6,3A F2: F315 mA 10 11 12 13 14 15 16 17 N GND LAMP 115/230Vac 40W max 14 15 16 17 SCA 24Vac 3W max...

  • Page 3: Technical Data

    Power maximum motor 1000 W Output supply accessories 24 Vac, 7W max. Protection level IP54 Operating temp. -20°C / +70°C CELL.P control unit with microcontroller INPUT/OUTPUT FUNCTIONS Terminals Function Description 1, 2, 3 Power supply Input, 230VAC 50/60Hz (1-Phase/2-Neutral/GND-Ground connection)
  • Page 4 CLOSE Input, CLOSE key (N.C. contact) Common, all control inputs. OPEN Input, OPEN key (N.O. contact). 14, 15 24Vac Output, 24Vac/400mA max accessory power supply. 16,17 Contact free from voltage, not insulated for the connection of open gate indicator lamp. Open contact with closed door leaf.

  • Page 5: Service Man Mode

    Note: with actuators for rolling shutters, preset torque at the maximum value. RADIO SELF-LEARNING (DIP1:OFF/DIP6:ON) The CELL.P control unit is equipped with a built-in radio module for the fixed or roll-on code of remote controls, with 433.92MHz frequency. To use a remote control, it is first necessary to store its code in memory. The memorisation procedure is described hereunder.

  • Page 6: Led Diagnostics

    LED DIAGNOSTICS The red LED indicates the activation of inputs according to the legend hereunder: STOP on with fixed light DAS/PHOT rapid flashing 1 flash with 2-second interval 2 flashes with 2-second interval OPEN+CLOSE 3 flashes with 2-second interval By flashing slowly, the red LED also indicates that the unit is powered. The green LED indicates the movement direction of the motor and the status of the gate according to the legend hereunder: OPENING...
  • Page 7 Via Capitello, 45 - 36066 Sandrigo (VI) Italia Dichiara che il prodotto: It is hereby stated that the item: Centrale di comando CELL.P CELL.P Control unit è conforme alle condizioni delle seguenti Direttive it is compliant with provisions of the following other EC Directives: •...
