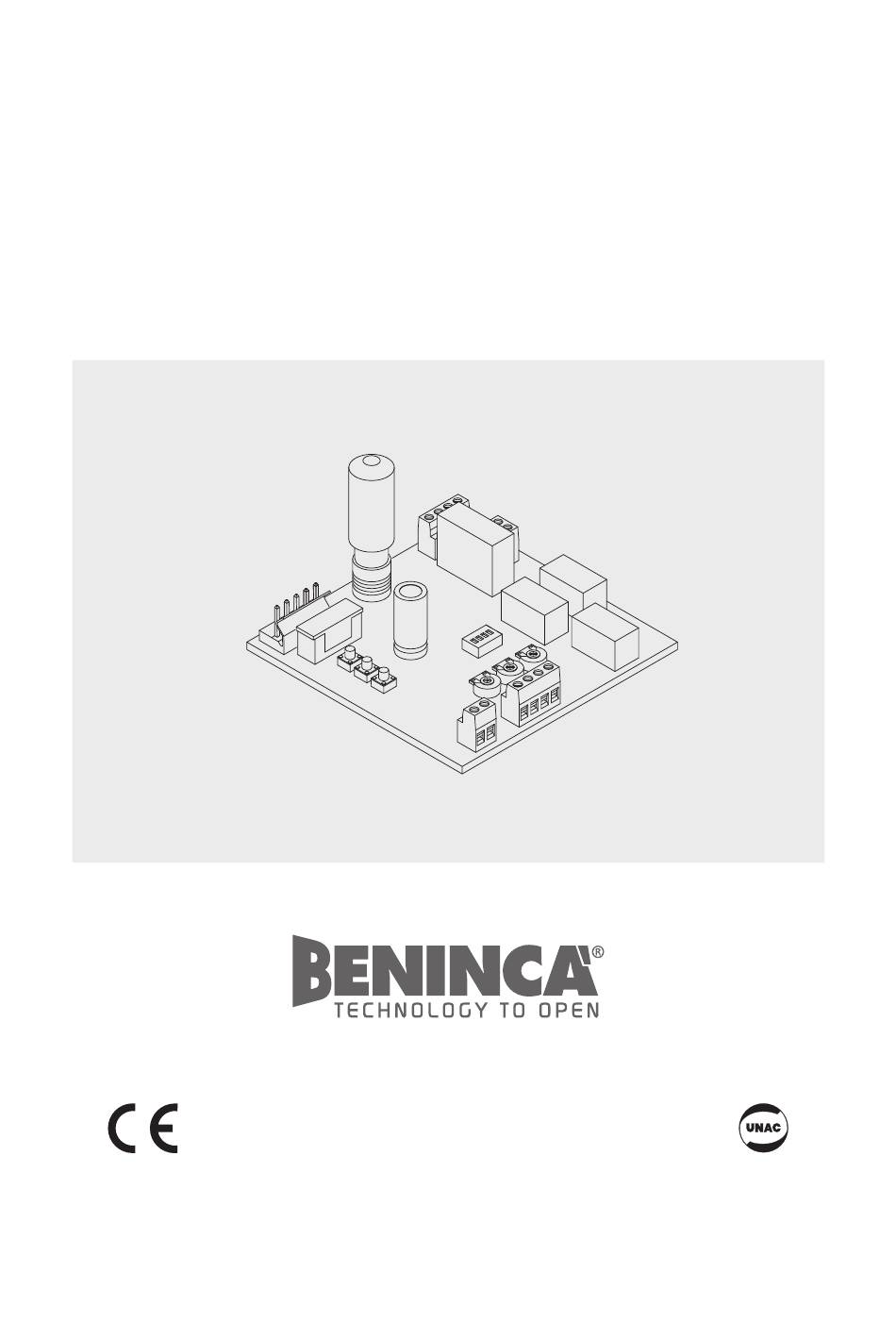

L8542381
02/2013 rev 4
CP.J3M
UNIONE NAZIONALE COSTRUTTORI
AUTOMATISMI PER CANCELLI, PORTE
SERRANDE ED AFFINI

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP.J3M and is the answer not in the manual?

Questions and answers

Related Manuals for Beninca CP.J3M

Summary of Contents for Beninca CP.J3M

  • Page 1 L8542381 02/2013 rev 4 CP.J3M UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
  • Page 2 CP.J3M 230Vac 50Hz LAMP 24Vac/15Wmax 24Vac 1A max SERVICE LIGHT 24Vac/10W ENCODER AMPC AMPO...
  • Page 3 Collegamento scheda JM.CB (opzionale) / Connection to the JM.CB Card (optional) Anschluss Karte JM.CB (option) / Branchement fiche JM.CB (optionnel) Conexión tarjeta JM.CB (opcional) / Połączenie karty JM.CB (opcjonalna) 230Vac 50Hz 24Vdc (-) (+) AMPC AMPO...

  • Page 4: Ce Declaration Of Conformity

    Via Capitello, 45 - 36066 Sandrigo (VI) - Italy Declares that the product: Control box for 1 motor CP.J3M conforms with the requirements of the following EU Directives: DIRECTIVE 2004/108/CE OF THE EUROPEAN PARLIAMENT AND COUNCIL, 15 December 2004, in relation to the harmonisation of the legislation of member states regarding electromagnetic compatibility, in abrogation of Directive 89/336/CEE, per the following harmonised standards: EN 61000-6-2:2005, EN 61000-6-3:2007.

  • Page 5: Technical Data

    Operating temp. The control unit is fitted with a built-in radio module for receiving remote Radio receiver controls both with fixed codes and variable codes with a frequency of 433.92MHz. Control units CP.J3M INPUT/OUTPUT FUNCTIONS Terminals Function Description Optional antenna connection to built-in radio receiver board (1-...
  • Page 6 Trimmer functions Adjustment of the automatic close time if enabled by Dip-Switch 1. Adjustment ranges from 1 sec to max 90 sec Adjustment of the amperometric sensor obstacle detection sensitivity during the open AMP-O cycle. Adjustment of the amperometric sensor obstacle detection sensitivity during the close AMP-C cycle.
  • Page 7 Proceed as follows: Press the hidden key of the already memorized transmitter, the courtesy light switches off. Within 10 sec., press the key of the already memorized transmitter, the function of which is to be copied. The courtesy light and the DL1 LED switch up. Within 10 seconds, press the hidden key of the new transmitter, the function of which is to be matched.
  • Page 8 Self-diagnosis of the control unit In normal operating mode, the status of the control unit is displayed as follows: - LED DL1 off: motor moving or motor stopped without alarm - 3 flashes of LED DL1 with 1 sec interflash interval: photocell input engaged for more than 5 sec - 4 flashes of LED DL1 and the courtesy light*, with 1 sec.
  • Page 9 AUTOMATISMI BENINCÀ SpA - Via Capitello, 45 - 36066 Sandrigo (VI) - Tel. 0444 751030 r.a. - Fax 0444 759728...
